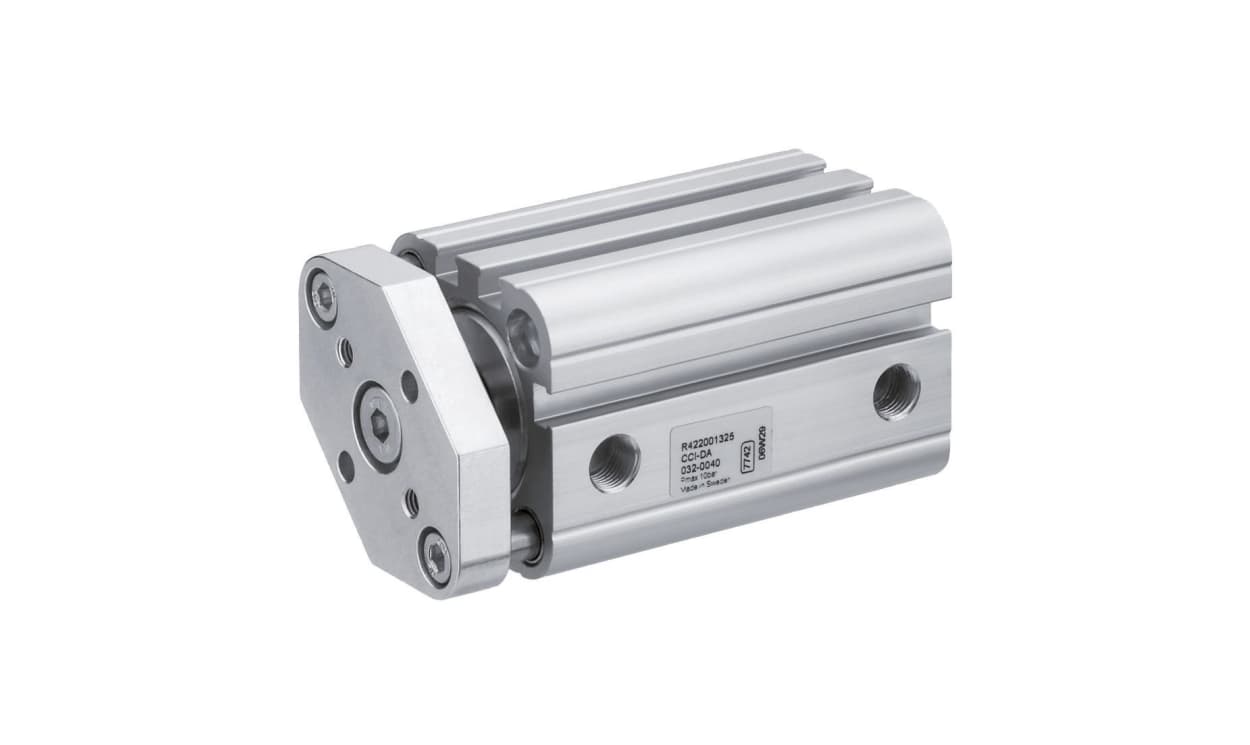

AVENTICS R422001295 Pneumatic Cylinder - , 32mm Bore, 20mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001295 Pneumatic Cylinder - , 32mm Bore, 20mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001295
Availability: OutOfStock

Part Number : R422001295

Availability: Sold out

Detailed Description
Specifications

The Aventics CCI cylinders stand for innovative, compact construction and an easy to clean design. It is ideal for long strokes and increased requirements for optimized cycle times and moving masses. The sensors can be installed quickly and easily on all sides and over the entire cylinder lengths.

Cylinder housing consists of a continuous aluminium profile with pressed in front and rear cover
Easy to clean design preventing the accumulation of dirt
Simple sensor assembly along the complete cylinder lengths
Available in piston diameters from 16 mm to 100 mm

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001295
Action	Double
Stroke	20mm
Bore	32mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Dimensions	44 x 32.5mm
Diameter	32.5mm
Length	44mm
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
VDMA Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
