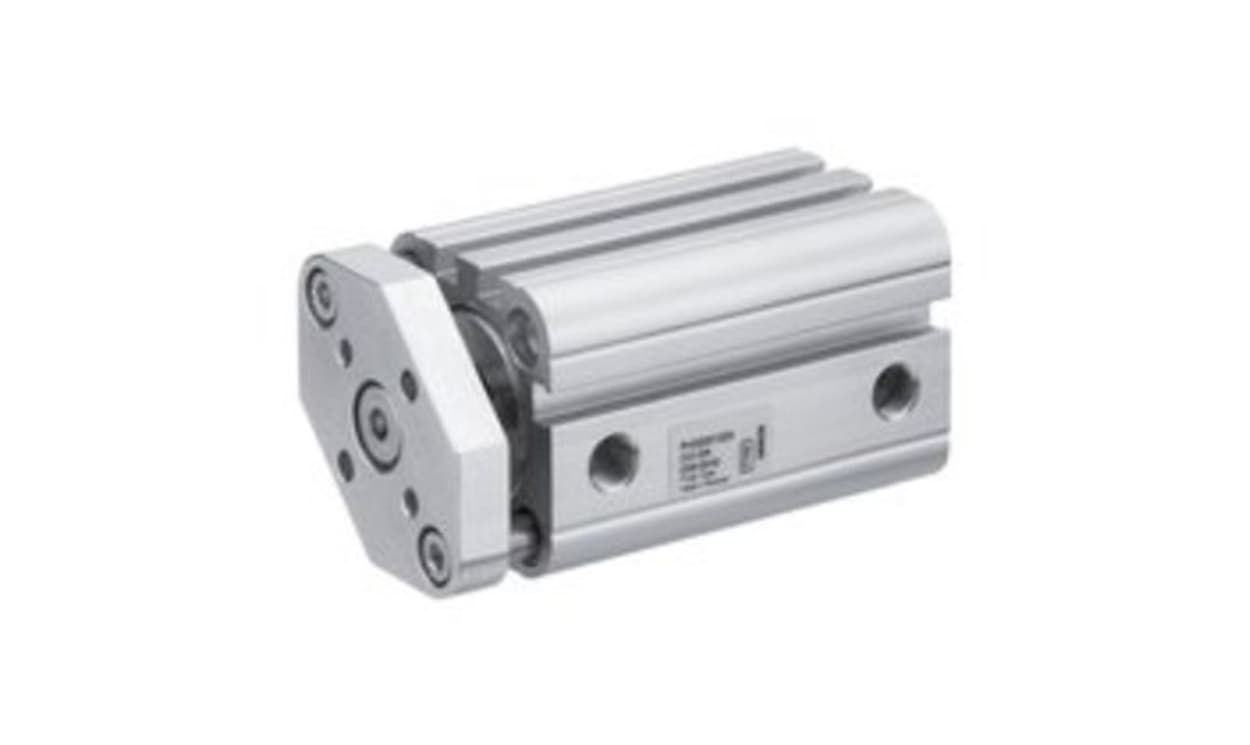

AVENTICS R422001294 Pneumatic Compact Cylinder - , 25mm Bore, 20mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001294 Pneumatic Compact Cylinder - , 25mm Bore, 20mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001294
Availability: OutOfStock

Part Number : R422001294

Availability: Sold out

Detailed Description
Specifications

The Aventics CCI Compact Cylinder from aventics is expertly designed, adhering to the stringent ISO 21287 standard, delivering outstanding performance in a compact form factor. Engineered for efficiency, this double-acting cylinder boasts an innovative construction that ensures ease of cleaning while optimising operational robustness. With a maximum working pressure of 10 bar and a wide operating temperature range of -20 °C to 80 °C, the CCI Series is perfect for a variety of industrial applications. Its integrated magnetic piston allows for seamless installation of sensors, providing flexibility throughout the cylinder's length. Perfect for long strokes, the series prioritises reduced cycle times and effective weight management, making it an essential tool for industries requiring precision and durability.

Ideal for long strokes enhancing operational efficiency
Designed for easy maintenance with a focus on cleanliness
Optimised for quick sensor installation on all sides
Robust performance under varying environmental conditions
Lightweight construction to decrease overall system load
Versatile application across diverse industrial needs
Elastic cushioning for improved impact absorption
ATEX certification options available for hazardous environments

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001294
Stroke	20mm
Bore	25mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
