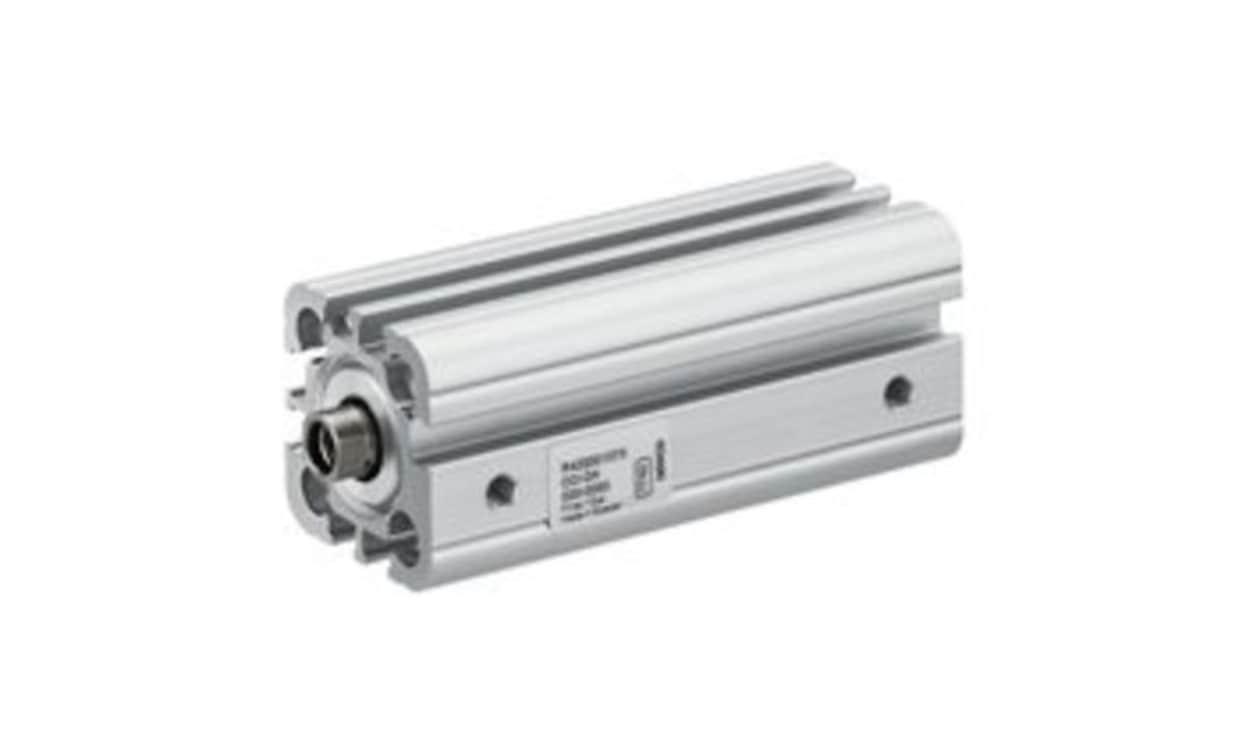

AVENTICS R422001238 Pneumatic Compact Cylinder - , 63mm Bore, 100mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001238 Pneumatic Compact Cylinder - , 63mm Bore, 100mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001238
Availability: OutOfStock

Part Number : R422001238

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics series CCI compact cylinders, compliant with ISO 21287, are engineered for optimal performance in various industrial applications. Boasting an innovative design, these cylinders are both compact and easy to clean, making them ideal for environments with stringent hygiene requirements. The series CCI is particularly suited to applications demanding long strokes and rapid cycle times. With a straightforward installation process for sensors, available on all sides and throughout the cylinder's length, these cylinders facilitate seamless integration into existing systems. Designed for double-acting functionality, the series CCI ensures consistent and reliable performance across a wide range of operational conditions.

Compact construction optimises space utilisation in your setup
Quick and efficient installation of sensors enhances usability
Elastic cushioning ensures reduced wear and extends service life
Double-acting functional principle provides balanced force applications
Magnetic piston improves operational reliability and control
Compatible with ATEX requirements for hazardous environments
A range of piston diameters allows for flexibility in application design
Stainless steel piston rod enhances durability in industrial settings
Polyurethane scraper material ensures effective sealing and protects internal components

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001238
Action	Double
Bore	63mm
Stroke	100mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001238 Pneumatic Compact Cylinder - , 63mm Bore, 100mm Stroke, CCI Series, Double Acting

DOWNLOAD CATALOG

R422001238 Datasheet - R422001238 A700000012575180

R422001238 Datasheet - R422001238 A700000012580444
