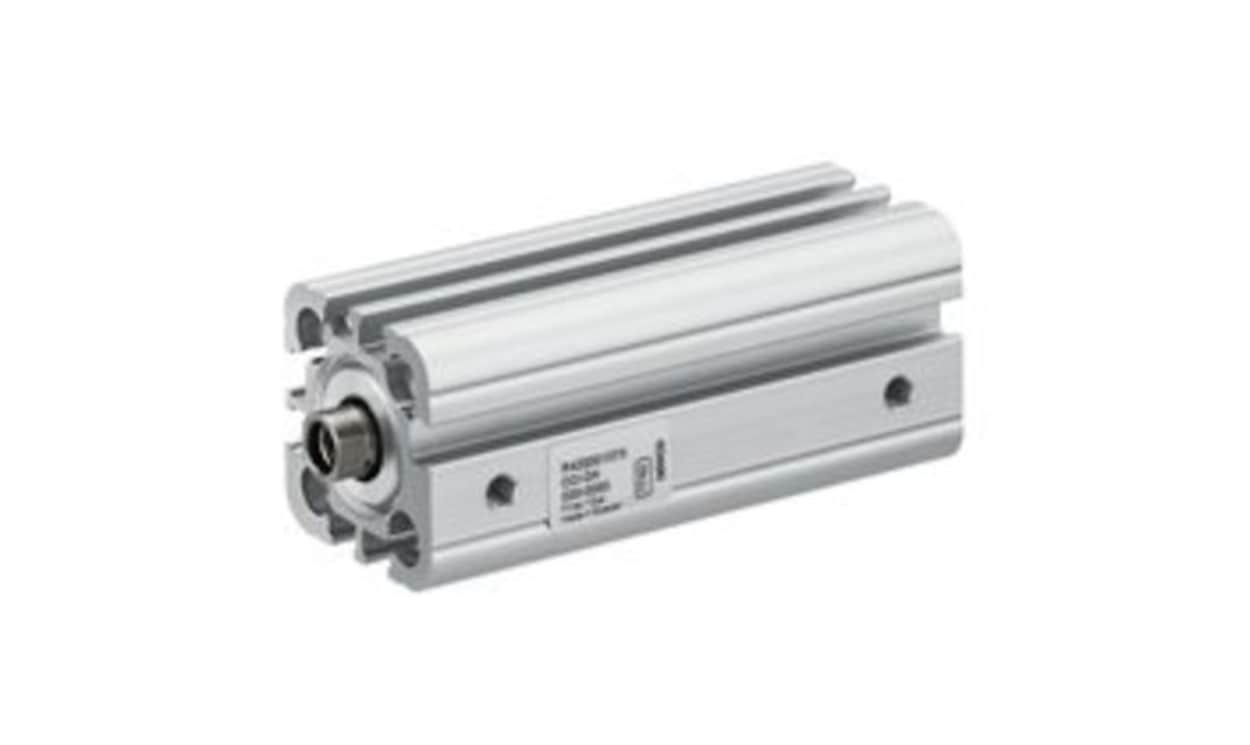

AVENTICS R422001155 Pneumatic Compact Cylinder - , 32mm Bore, 15mm Stroke, CCI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R422001155 Pneumatic Compact Cylinder - , 32mm Bore, 15mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001155 Pneumatic Compact Cylinder - , 32mm Bore, 15mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001155
Availability: OutOfStock

Part Number : R422001155

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder, crafted to ISO 21287 standards, embodies a perfect blend of innovation and functionality. Designed for industrial applications, this cylinder excels in environments requiring precise control and reliability. Its compact construction and easy-to-clean design make it the go-to choice for long strokes and optimised cycle times. With the ability to quickly install sensors along the entire cylinder length, it ensures seamless integration into various systems. The Series CCI is also compatible with ATEX standards, catering to specific safety requirements. Whether tackling demanding tasks or adapting to variable conditions, this compact cylinder stands out as a robust solution for modern industrial challenges.

Innovative design maximises operational efficiency in confined spaces
Elastic cushioning system enhances shock absorption during operation
Magnetic piston enables exceptional positioning and feedback
External thread allows for versatile mounting options
ATEX-certified options are available for hazardous environments
Robust materials ensure durability and longevity in industrial settings
Wide temperature and pressure limits accommodate diverse applications
Low oil content requirements promote cleaner and more efficient operation

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001155
Bore	32mm
Action	Double
Stroke	15mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
