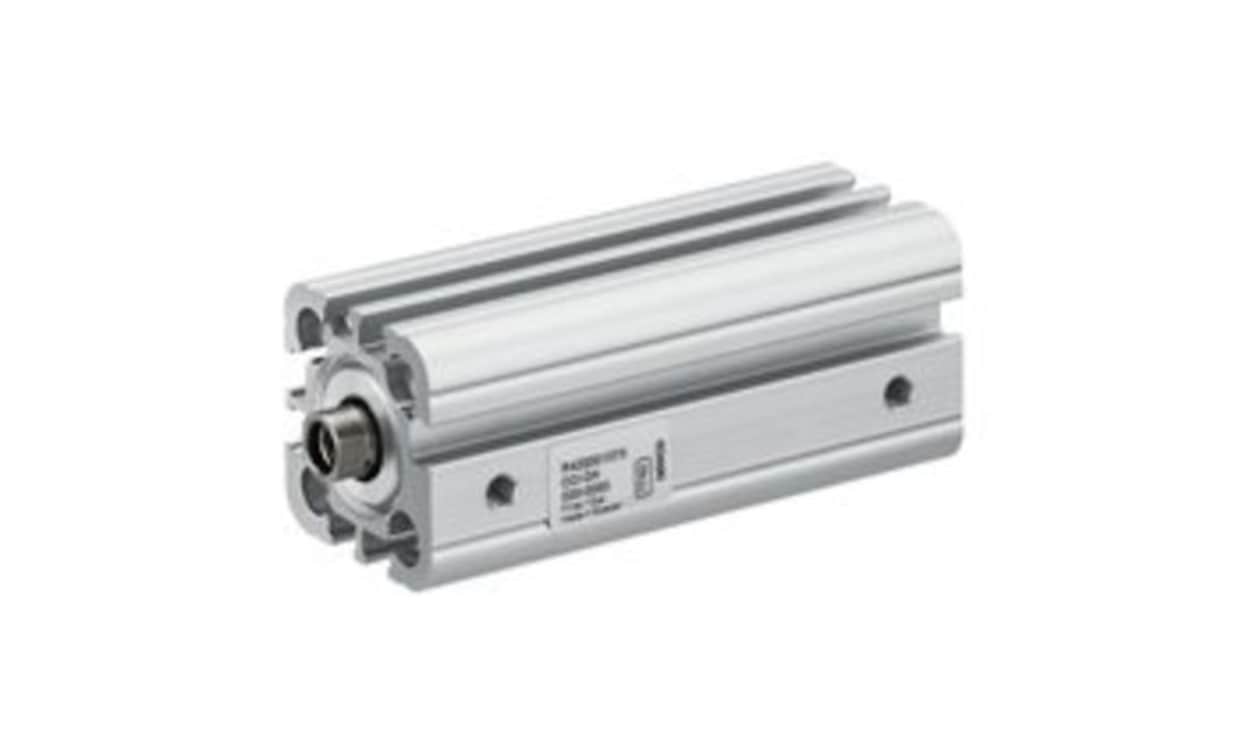

AVENTICS R422001044 | CCI Double-Acting Compact Cylinder | 25 mm Bore, 25 mm Stroke

Name: AVENTICS R422001044 | CCI Double-Acting Compact Cylinder | 25 mm Bore, 25 mm Stroke
Brand: Aventics
SKU: R422001044
Availability: OutOfStock

Part Number : R422001044

Bore 25 mm, stroke 25 mm: AVENTICS R422001044 is a double-acting compact cylinder in the CCI series. R422001044 carries elastic cushioning and M5 ports, and works up to 10 bar, built to ISO 21287.

Bore 25 mm, stroke 25 mm
Series CCI; action: double (ISO 21287)
Pneumatic connection M5
Rod thread gender: female
Cushioning type: elastic
Operating temperature -20 °C to +80 °C, max. 10 bar

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Compact Cylinder from the series CCI is engineered to deliver outstanding performance and efficiency in various industrial applications. Built to ISO 21287 standards, it boasts a robust design focusing on cleanliness and ease of maintenance, making it suitable for environments where hygiene and reliability are paramount. Its innovative engineering supports long strokes while optimising cycle times, ensuring high efficiency with moving masses. The versatile product design allows for easy installation of sensors along the entire length of the cylinder, enhancing operational flexibility.

Features elastic cushioning for gentle operation
Robust materials enhance durability and longevity
Complies with industry standards for reliable performance
Low maintenance design minimises downtime

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001044
Action	Double
Stroke	25mm
Bore	25mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001044 | CCI Double-Acting Compact Cylinder | 25 mm Bore, 25 mm Stroke

DOWNLOAD CATALOG

R422001044 Datasheet - R422001044 A700000012573431

R422001044 Datasheet - R422001044 A700000012579132
