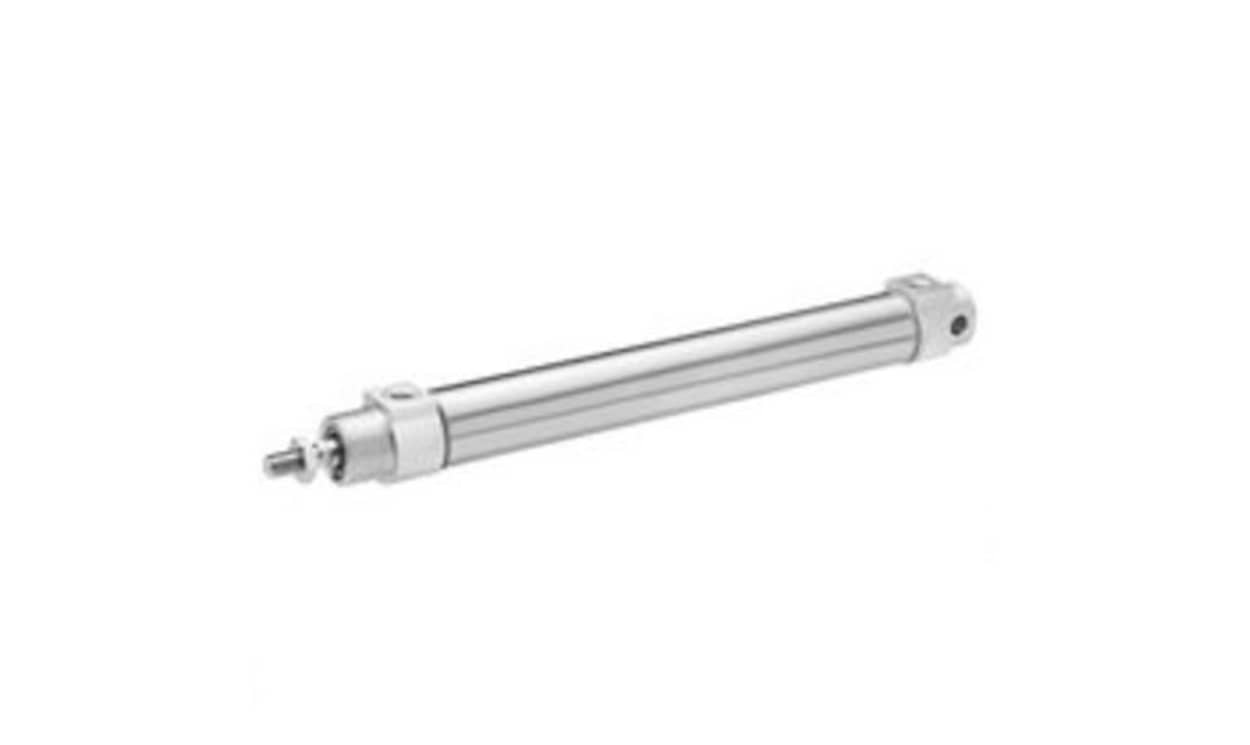

AVENTICS R412020722 Roundline Cylinder - , 63mm Bore, 160mm Stroke, RPC Series, Double Acting

Name: AVENTICS R412020722 Roundline Cylinder - , 63mm Bore, 160mm Stroke, RPC Series, Double Acting
Brand: Aventics
SKU: R412020722
Availability: OutOfStock

Part Number : R412020722

Availability: Sold out

Detailed Description
Specifications

The Aventics Round Cylinder, part of the Series RPC, is engineered for precision and reliability in various applications. Designed with versatility in mind, the RPC cylinder is ideal for machine automation, offering a broad range of connection options to suit any setup. Its robust stainless steel construction ensures durability, while the use of food-grade lubricants makes it suitable for packaging applications in the food industry. With its double-acting functional principle, this cylinder excels in performance and efficiency, delivering exceptional results across industrial sectors.

Designed with easy cleaning in mind for hygienic and efficient operation
Suitable for a wide range of industrial applications including food grade settings
Maintains consistent pressure levels for reliable functionality
Provides a broad working temperature range for enhanced adaptability
Lightweight design allows for easier handling and installation

Brand	AVENTICS
Manufacturer Series	RPC
Model Number p	R412020722
Stroke	160mm
Bore	63mm
Action	Double
Port Connection	G 3/8
Pneumatic Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
