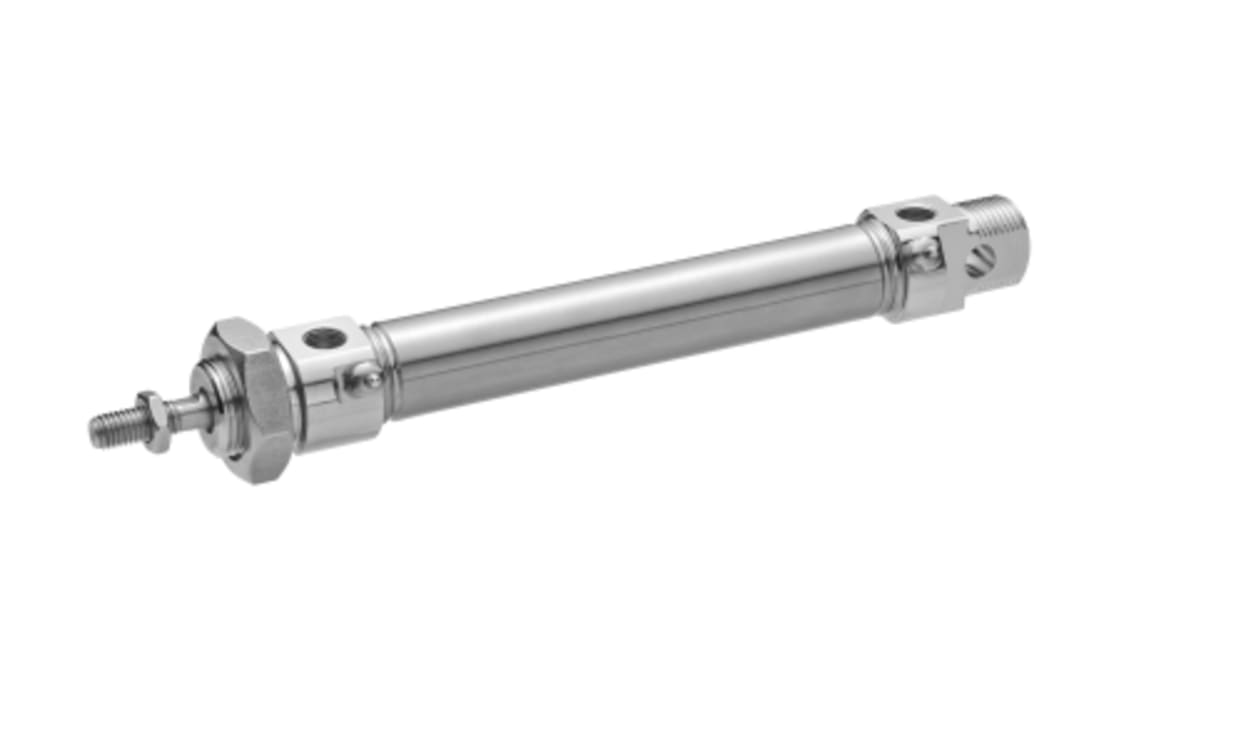

AVENTICS R412020500 | CSL-RD Double-Acting Round Cylinder | 25 mm Bore, 100 mm Stroke, Adjustable Cushioning

Name: AVENTICS R412020500 | CSL-RD Double-Acting Round Cylinder | 25 mm Bore, 100 mm Stroke, Adjustable Cushioning
Brand: Aventics
SKU: R412020500
Availability: OutOfStock

Part Number : R412020500

Need a 100 mm stroke at 25 mm bore? AVENTICS R412020500 delivers that in a double-acting CSL-RD roundline format built to ISO 6432, and R412020500 is listed with adjustable pneumatic cushioning and G 1/8 air connections.

25 mm bore with 100 mm stroke
Cushioning type: adjustable pneumatic
G 1/8 air ports
Up to 10 bar operating pressure
Suitable for -20 °C to +80 °C
ISO 6432 standard, double action, male rod end thread

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R412020500
Action	Double
Stroke	100mm
Bore	25mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R412020500 | CSL-RD Double-Acting Round Cylinder | 25 mm Bore, 100 mm Stroke, Adjustable Cushioning

DOWNLOAD CATALOG

R412020500 Datasheet - R412020500 A700000012671087
