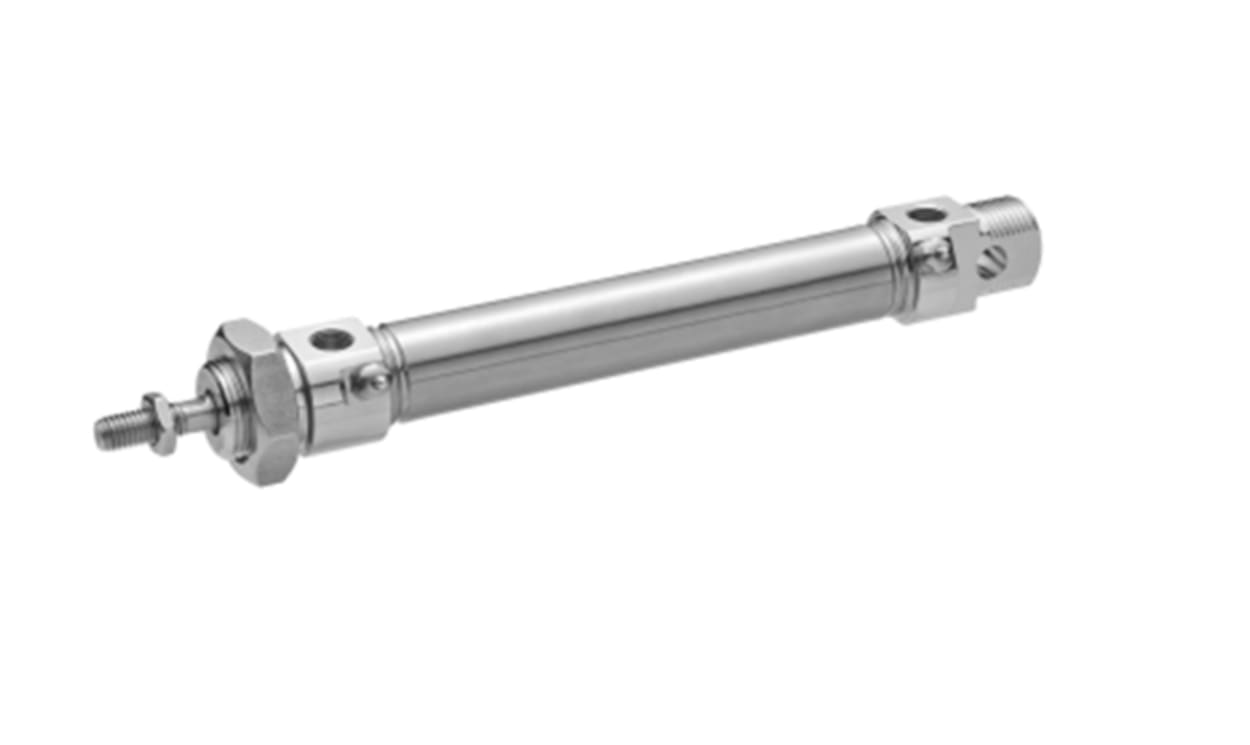

AVENTICS R412020457 | CSL-RD Double-Acting Round Cylinder | 20 mm Bore, 125 mm Stroke, Adjustable Cushioning

Name: AVENTICS R412020457 | CSL-RD Double-Acting Round Cylinder | 20 mm Bore, 125 mm Stroke, Adjustable Cushioning
Brand: Aventics
SKU: R412020457
Availability: OutOfStock

Part Number : R412020457

This 20 mm bore CSL-RD cylinder, part number R412020457, travels 125 mm and works double acting up to 10 bar. For R412020457, AVENTICS lists adjustable pneumatic cushioning, G 1/8 pneumatic connections and a male piston rod thread.

Size: 20 mm bore x 125 mm stroke
Adjustable pneumatic end-position cushioning
Connections: G 1/8
Pressure limit: 10 bar
Operating temperature -20 °C to +80 °C
ISO 6432, double acting, male rod thread

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R412020457
Stroke	125mm
Action	Double
Bore	20mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R412020457 | CSL-RD Double-Acting Round Cylinder | 20 mm Bore, 125 mm Stroke, Adjustable Cushioning

DOWNLOAD CATALOG

R412020457 Datasheet - R412020457 A700000012670915
