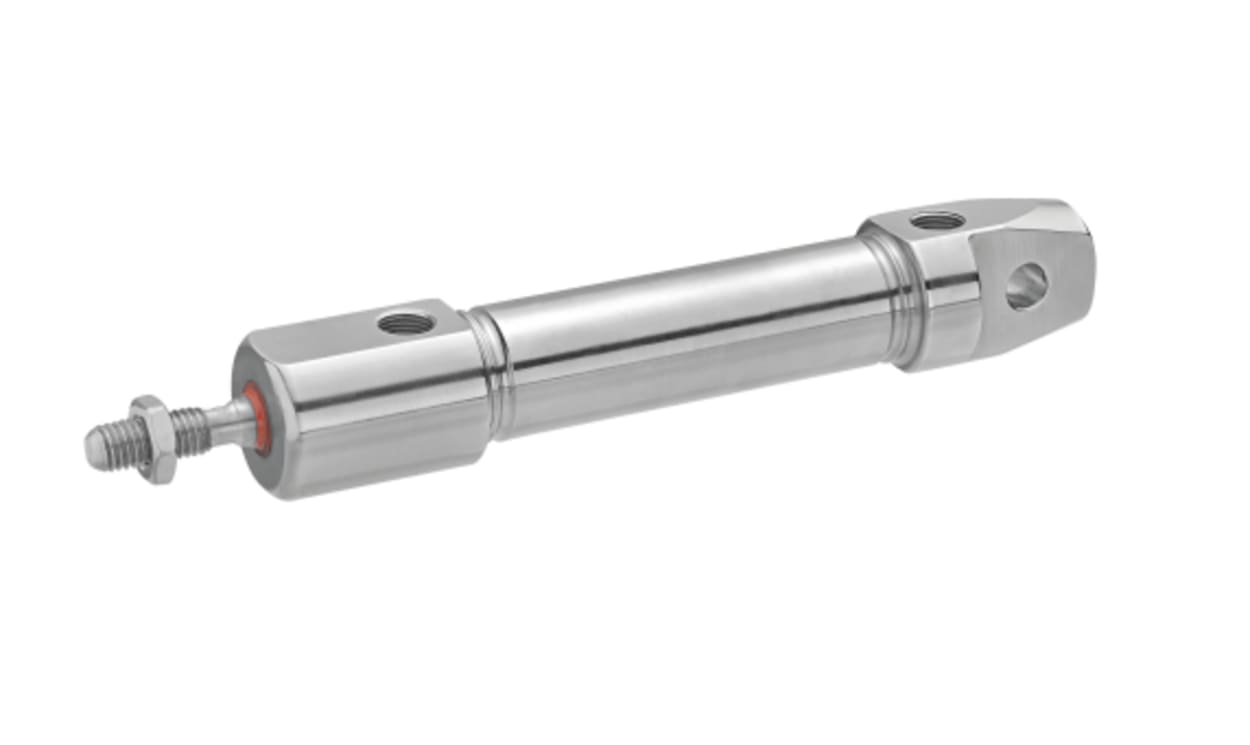

AVENTICS R412020425 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 160 mm Stroke, Elastic Cushioning

Name: AVENTICS R412020425 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 160 mm Stroke, Elastic Cushioning
Brand: Aventics
SKU: R412020425
Availability: OutOfStock

Part Number : R412020425

This 16 mm bore CSL-RD cylinder, part number R412020425, travels 160 mm and works double acting up to 10 bar. For R412020425, AVENTICS lists elastic cushioning, M5 pneumatic connections and a male piston rod thread.

Size: 16 mm bore x 160 mm stroke
Elastic end-position cushioning
Pneumatic and port connection: M5
Pressure limit: 10 bar
Operating temperature -20 °C to +80 °C
ISO 6432, double acting, male rod thread

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder which configurable in three different designs such standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R412020425
Stroke	160mm
Action	Double
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R412020425 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 160 mm Stroke, Elastic Cushioning

DOWNLOAD CATALOG

R412020425 Datasheet - R412020425 A700000012669959
