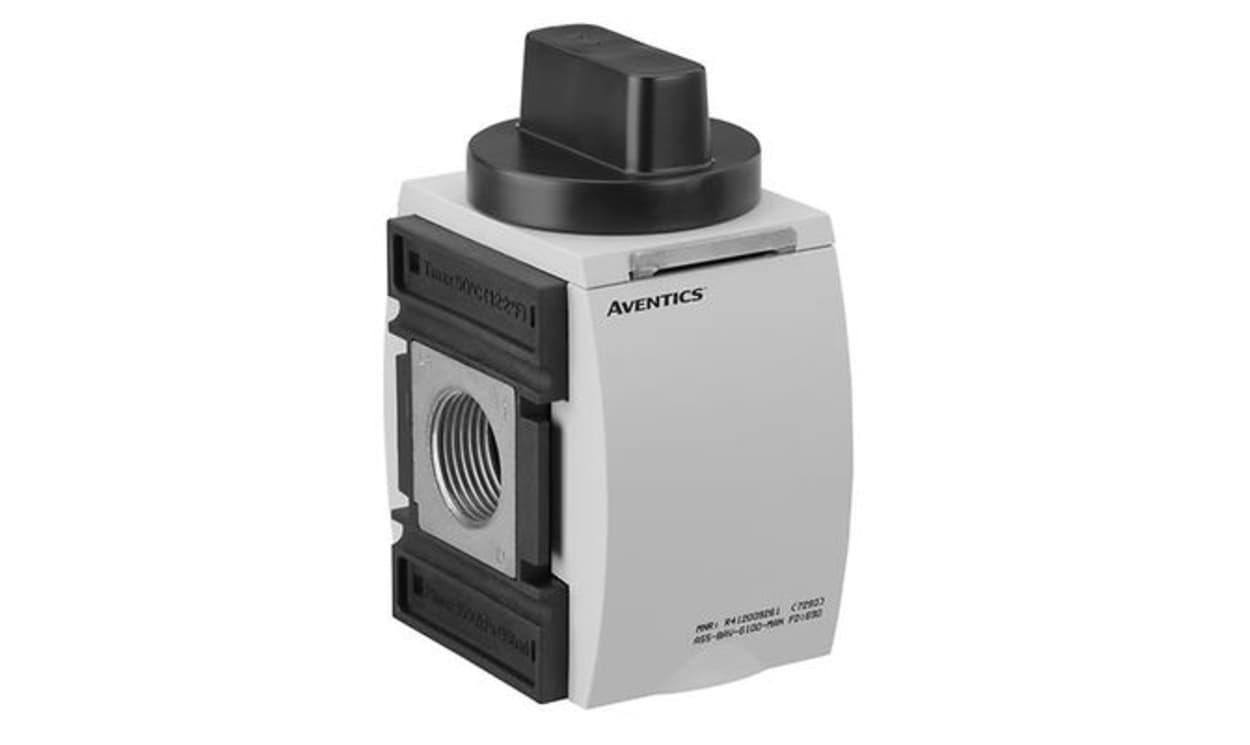

AVENTICS R412009260 G G 3/4 Pneumatic Shut-Off Valve, 30000L/min

Name: AVENTICS R412009260 G G 3/4 Pneumatic Shut-Off Valve, 30000L/min
Brand: Aventics
SKU: R412009260
Availability: OutOfStock

Part Number : R412009260

Availability: Sold out

Detailed Description
Specifications

The Aventics 3/2-shut-off valve, mechanically operated, Series AS5-BAV is a modular and versatile maintenance unit for universal application. This series offers compact dimensions, high efficiency, light weight, and ease of use. The Series AS guarantees reliability, safety, and efficiency with simplified assembly and maintenance efforts.

Minimum working pressure 0 bar
Maximum working pressure 16 bar
Actuating element rotary switch
Sealing principle metal/metal sealing

Brand	AVENTICS
Inlet Port	G 3/4
Outlet Port Size	G 3/4
Outlet Port - Thread Standard	G
Manufacturer Series	AS5
Flow Rate	30000L/min
Maximum Input Pressure	16bar
Inlet Port Size	G 3/4
Inlet Port Thread Standard	G
Body Material	Polyamide
