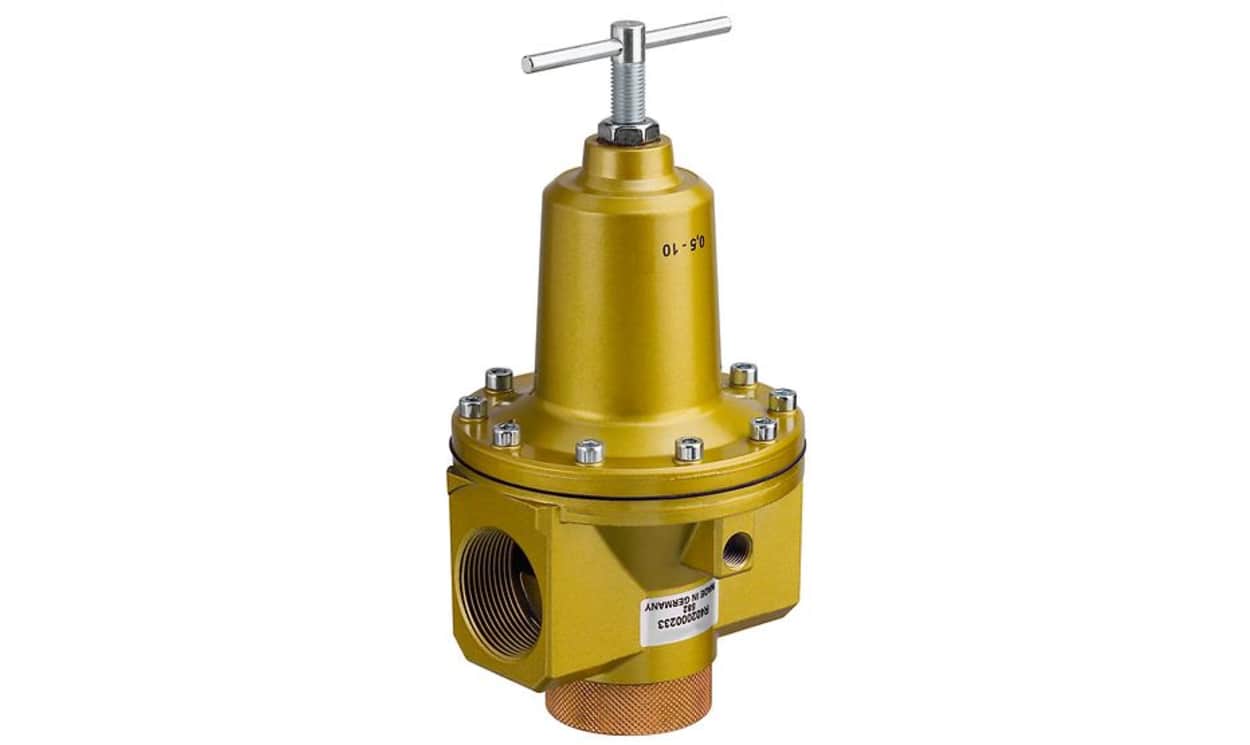

AVENTICS R412006575 | MU1-RGS Pressure Regulator | G 1 1/4, 16500 L/min
AVENTICS R412006575 is an MU1-RGS pressure regulator with G 1 1/4 ports, a 0.5 bar minimum outlet setting and a 16500 L/min maximum flow rate.
- Minimum outlet pressure: 0.5 bar
- G 1 1/4 ports, 1.25 in thread size
- 16500 L/min maximum flow
- Operating temperature: -10 °C to +60 °C
- Manufacturer series MU1-RGS
- Detailed Description
- Specifications
- Downloads
Regulation range Maximum 10 bar
Working pressure Minimum 0.5 bar
Working pressure max 25 bar
| Brand | AVENTICS |
| Port Connection | G 1 1/4 |
| Maximum Outlet Pressure | 25bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 10bar |
| Manufacturer Series | MU1-RGS |
| Port Connection Thread Size | 1.25 in |
| Maximum Flow Rate | 16500L/min |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Model Number p | R412006575 |
