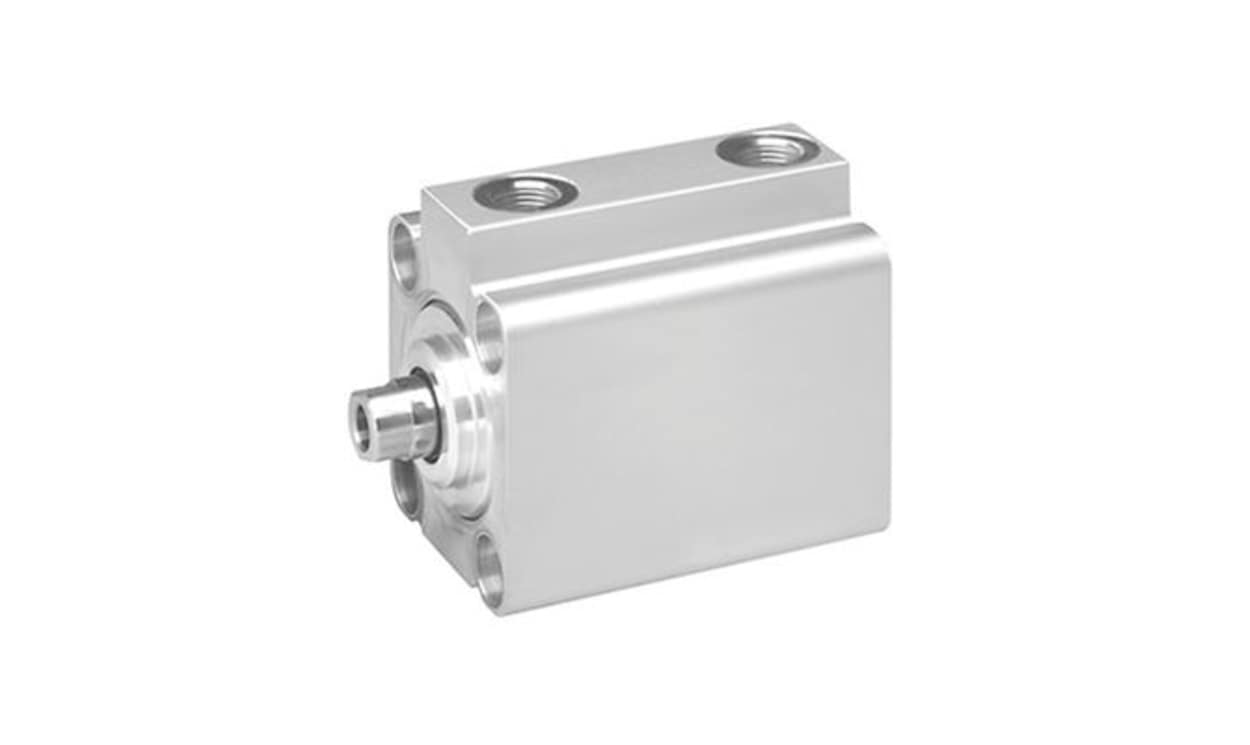

AVENTICS R402005833 | KHZ Double-Acting Pneumatic Cylinder | 100 mm Bore, 25 mm Stroke

Name: AVENTICS R402005833 | KHZ Double-Acting Pneumatic Cylinder | 100 mm Bore, 25 mm Stroke
Brand: Aventics
SKU: R402005833
Availability: OutOfStock

Part Number : R402005833

100 mm bore and 25 mm stroke: AVENTICS R402005833 is a double-acting pneumatic cylinder from the KHZ series. Air connects to R402005833 through G 1/4 ports; it is rated to 10 bar and -25 °C to +80 °C.

Bore 100 mm, stroke 25 mm
Action: double-acting
Ports: G 1/4
Piston rod thread: female
Cushioning: elastic
Max pressure: 10 bar, -25 °C to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is engineered for optimising performance in confined installation spaces, providing an ideal solution where precision is paramount. Designed to facilitate seamless integration within various machinery applications, this cylinder elevates operational efficiency without compromising safety. Boasting a strikingly compact design, it expertly combines durability, operational reliability, and user-friendly features. This product’s double-acting functional principle ensures effective performance across diverse industrial needs, empowering users to maintain high standards throughout production processes. With its proven track record in rigorous environments, the aventics Series KHZ is a dependable choice for professionals seeking an advanced pneumatic solution.

Compact design allows for installations in tight spaces
Double-acting operation maximises flexibility in application
Elastic cushioning enhances shock absorption for smooth operation
Magnetic piston technology reduces wear and extends longevity
Constructed with industry-standard materials for superior durability
Wide temperature range supports diverse operational environments
Minimal maintenance required to keep performance at peak levels
Optimised for use with compressed air, ensuring reliable operation
Versatile compatibility with various accessories and machinery

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	R402005833
Bore	100mm
Action	Double
Stroke	25mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Test Weight	2.38 kg
Stroke Interval Weight	0.218 @ 10 mm kg/mm

AVENTICS R402005833 | KHZ Double-Acting Pneumatic Cylinder | 100 mm Bore, 25 mm Stroke

DOWNLOAD CATALOG

R402005833 Datasheet - R402005833 A700000012573683
