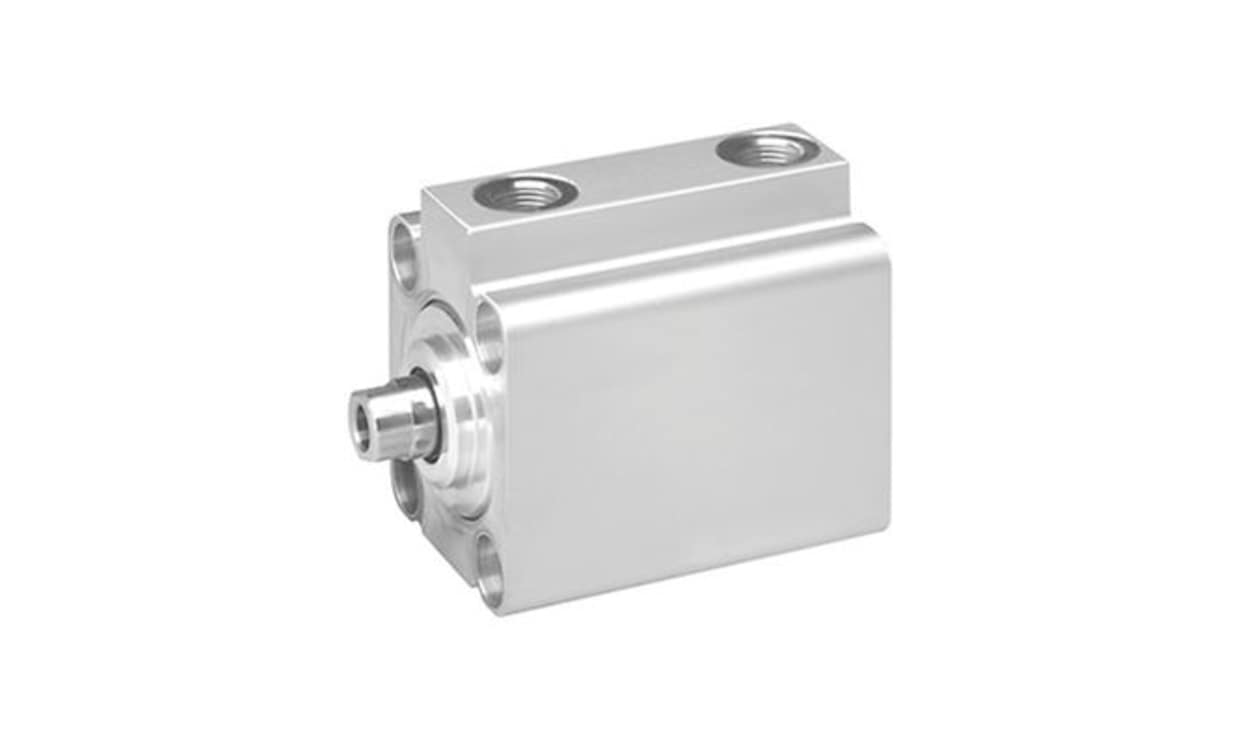

AVENTICS R402005794 Double Acting Cylinder - , 80mm Bore, 15mm Stroke, KHZ Series, Double Acting

Name: AVENTICS R402005794 Double Acting Cylinder - , 80mm Bore, 15mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: R402005794
Availability: OutOfStock

Part Number : R402005794

Availability: Sold out

Detailed Description
Specifications

The Aventics Series KHZ short-stroke cylinder offers unparalleled performance in confined spaces, making it an ideal choice for intricate machinery designs. Designed for double-acting functionality, this robust cylinder ensures smooth operation with elastic cushioning for enhanced longevity and safety. The pneumatic component boasts a piston diameter of 80 mm and a minimal stroke length of 15 mm, allowing for precise control over mechanical movements. Constructed from durable materials such as stainless steel and aluminium, the Series KHZ is built to withstand the demands of industrial environments. Its environmental resilience is evident with operating temperatures ranging from -25 °C to 80 °C, ensuring reliability across a variety of applications. With compatibility for compressed air and a structural design focused on easy integration, this cylinder stands out as a versatile and high-performance solution for manufacturers and engineers alike.

Designed for minimal installation space, enhancing flexibility in equipment design
Double-acting functional principle ensures efficient and reliable operation
Elastic cushioning provides a gentle stop, reducing impact and wear
Constructed with industry-standard materials for durability and strength
Temperature resilience allows operation in a wide range of environments
Piston with integrated magnet facilitates sensor applications
Multiple port sizes available for enhanced compatibility with existing systems
Lightweight design simplifies installation and maintenance processes
The internal thread piston rod ensures secure attachment for varied applications
User-friendly maintenance access to prolong the product lifespan

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	R402005794
Stroke	15mm
Bore	80mm
Action	Double
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Test Weight	1.22 kg
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.149 @ 10 mm kg/mm
