AVENTICS 1332501000 Roundline Cylinder - , 25mm Bore, 12mm Stroke, ICM Series, Double Acting

Name: AVENTICS 1332501000 Roundline Cylinder - , 25mm Bore, 12mm Stroke, ICM Series, Double Acting
Brand: Aventics
SKU: 1332501000
Availability: OutOfStock

Part Number : 1332501000

Availability: Sold out

Detailed Description
Specifications

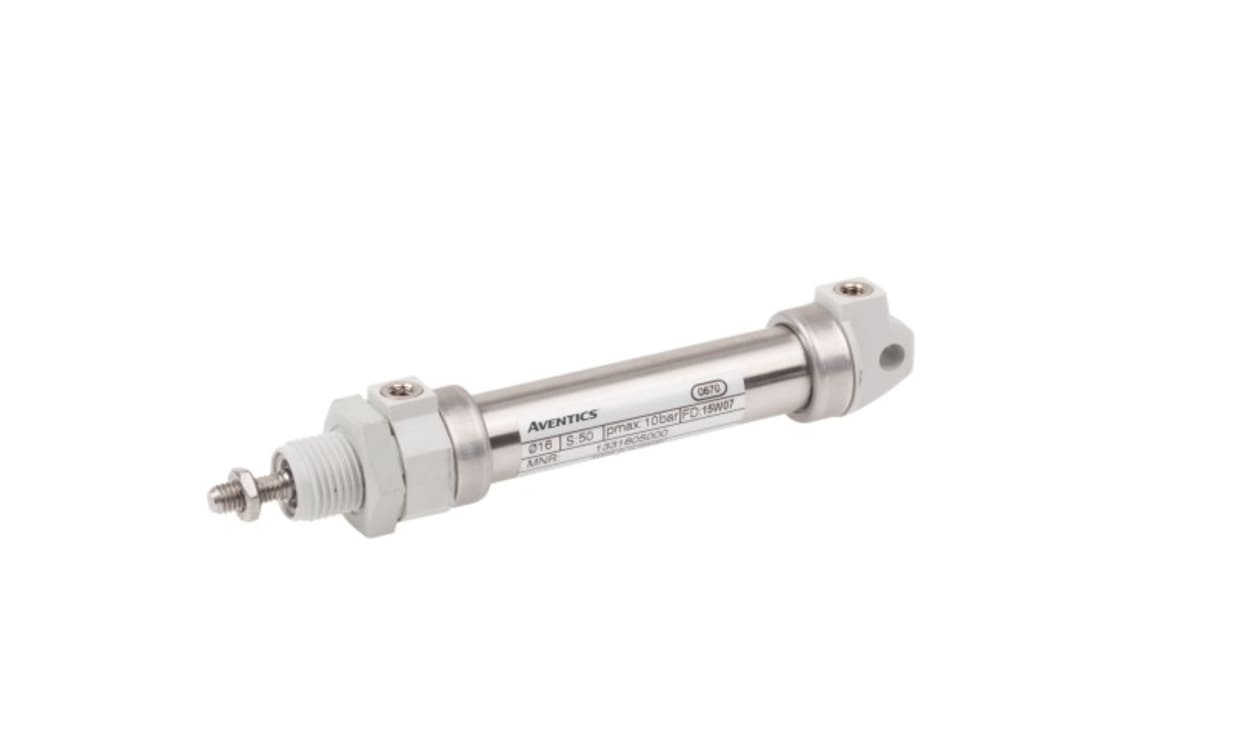

The Aventics ICM Mini Cylinder is engineered for optimal performance in demanding environments, making it an ideal choice for industrial applications. This mini cylinder offers exceptional corrosion resistance, ensuring reliability even under harsh conditions. Its stainless steel construction and high-quality polymer end covers provide strength without compromising weight. Additionally, the Series ICM is designed for functionality, featuring a double-acting principle that enables efficient operation. With the ability to accommodate a variety of strokes and a broad operating pressure range, this cylinder is suitable for diverse tasks, particularly in the food processing sector. Its compact form factor does not sacrifice power, making it the perfect solution for applications where space is at a premium.

Designed for high corrosion resistance to extend service life
Operates efficiently in challenging environments, ensuring reliability
Compact design makes it ideal for applications with limited space
Optimised for use in food processing, enhancing hygiene standards
Double-acting functional principle increases operational efficiency
Elastic cushioning protects components and reduces wear
Available with various stroke lengths to meet specific application needs
Constructed with stainless steel for durability and robust performance
Lightweight materials facilitate easier installation and handling
Compliant with industry standards, ensuring compatibility with existing systems

Brand	AVENTICS
Manufacturer Series	ICM
Model Number p	1332501000
Bore	25mm
Action	Double
Stroke	12mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
