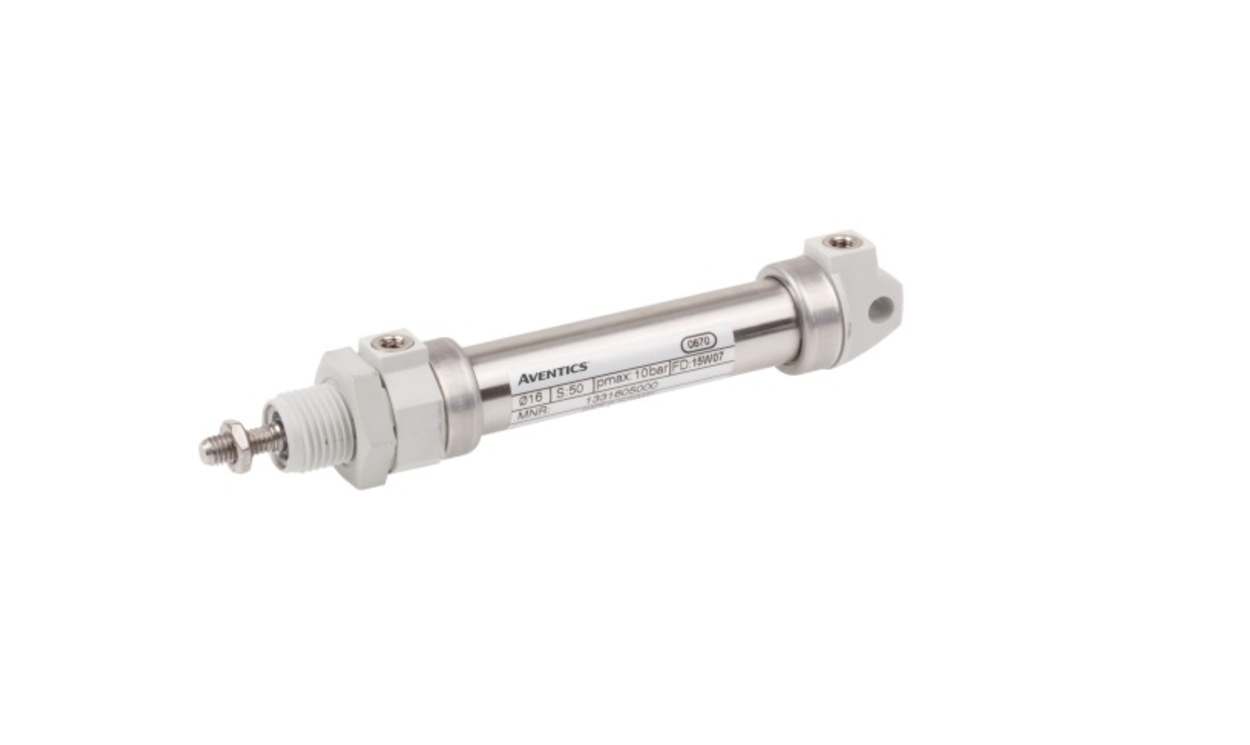

AVENTICS 1331608000 | ICM Double-Acting Roundline Cylinder | 16 mm Bore, 80 mm Stroke

Name: AVENTICS 1331608000 | ICM Double-Acting Roundline Cylinder | 16 mm Bore, 80 mm Stroke
Brand: Aventics
SKU: 1331608000
Availability: OutOfStock

Part Number : 1331608000

Stroke length on the AVENTICS 1331608000 is 80 mm and the bore measures 16 mm, in a double-acting ICM roundline cylinder. This 16 x 80 mm version connects via M5 ports, carries a male-threaded piston rod and is rated to 10 bar between -20 °C and +70 °C.

16 mm bore / 80 mm stroke
Double-Acting operation
Port size M5
Male piston rod thread
Elastic end cushioning
10 bar max pressure, temperature -20 °C to +70 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics mini cylinder from the series ICM is engineered to deliver exceptional performance in demanding environments, especially designed for applications that require high corrosion resistance. Tailored for the industrial sector, it boasts a robust stainless steel construction which enhances its reliability, making it an ideal choice for food processing operations. The advanced engineering ensures an effective and efficient operation by featuring double-acting functionality, allowing for precise control and smooth operation. With its well-thought-out dimensions and versatile design, this cylinder not only meets but exceeds industry standards, ensuring a perfect fit for various applications. The combination of top-quality materials and innovative design makes this cylinder a cost-effective solution for both reliability and longevity in operations.

Compact design optimises installation space while maintaining high performance
Stainless steel components ensure durability and resistance to harsh conditions
Double-acting functionality facilitates efficient operation in diverse applications
Cushioning technology reduces noise and vibration during operation
Designed for use in food processing, upholding strict hygiene and safety standards
Elastic cushioning enhances the longevity by protecting against mechanical shock
Magnetic piston allows for easy sensing and positioning capabilities
The pressure dew point requirement ensures reliable performance in variable conditions

Brand	AVENTICS
Manufacturer Series	ICM
Model Number p	1331608000
Action	Double
Bore	16mm
Stroke	80mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C

AVENTICS 1331608000 | ICM Double-Acting Roundline Cylinder | 16 mm Bore, 80 mm Stroke

DOWNLOAD CATALOG

1331608000 Datasheet - 1331608000 A700000012573123
