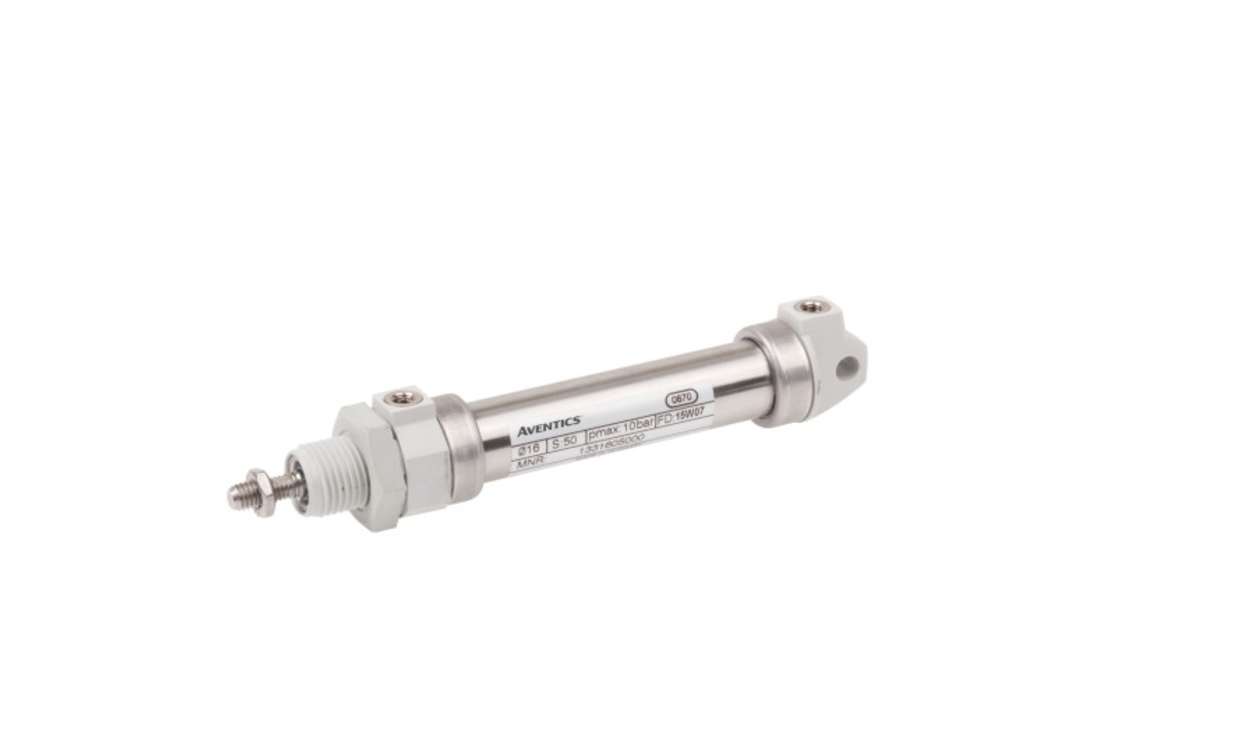

AVENTICS 1331202000 Roundline Cylinder - , 12mm Bore, 25mm Stroke, ICM Series, Double Acting

Name: AVENTICS 1331202000 Roundline Cylinder - , 12mm Bore, 25mm Stroke, ICM Series, Double Acting
Brand: Aventics
SKU: 1331202000
Availability: OutOfStock

Part Number : 1331202000

Availability: Sold out

Detailed Description
Specifications

The Aventics Series ICM mini cylinder by aventics is an innovative, cost-efficient solution designed for high corrosion resistance and reliability in demanding environments. Crafted with a stainless steel cylinder tube and piston rod, along with high-quality polymer covers, this mini cylinder meets the needs of various industrial applications, particularly those involving food processing. Its compact design does not compromise on performance, promising durability and efficiency even in harsh conditions. The Series ICM excels with features such as double-acting functionality and elastic cushioning, ensuring smooth operation while accommodating extended stroke lengths. Its robust build and environmental suitability make it an ideal choice for industries where reliability and hygiene are paramount.

Perfect for use in sectors requiring strict hygiene standards
Designed to withstand harsh environments without compromising on performance
Double-acting principle ensures efficient operation with optimal force
Constructed for maximum longevity, reducing the need for frequent replacements
Lightweight design facilitates easy integration into existing systems
Flexible stroke options enhance versatility for varying applications
Incorporates elastic cushioning for enhanced shock absorption and protection
Piston with magnet for easy sensing and control capabilities
Quick and straightforward installation aids productive downtime
Environmental compliance ensures safe operation in food processing environments

Brand	AVENTICS
Manufacturer Series	ICM
Model Number p	1331202000
Action	Double
Bore	12mm
Stroke	25mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
