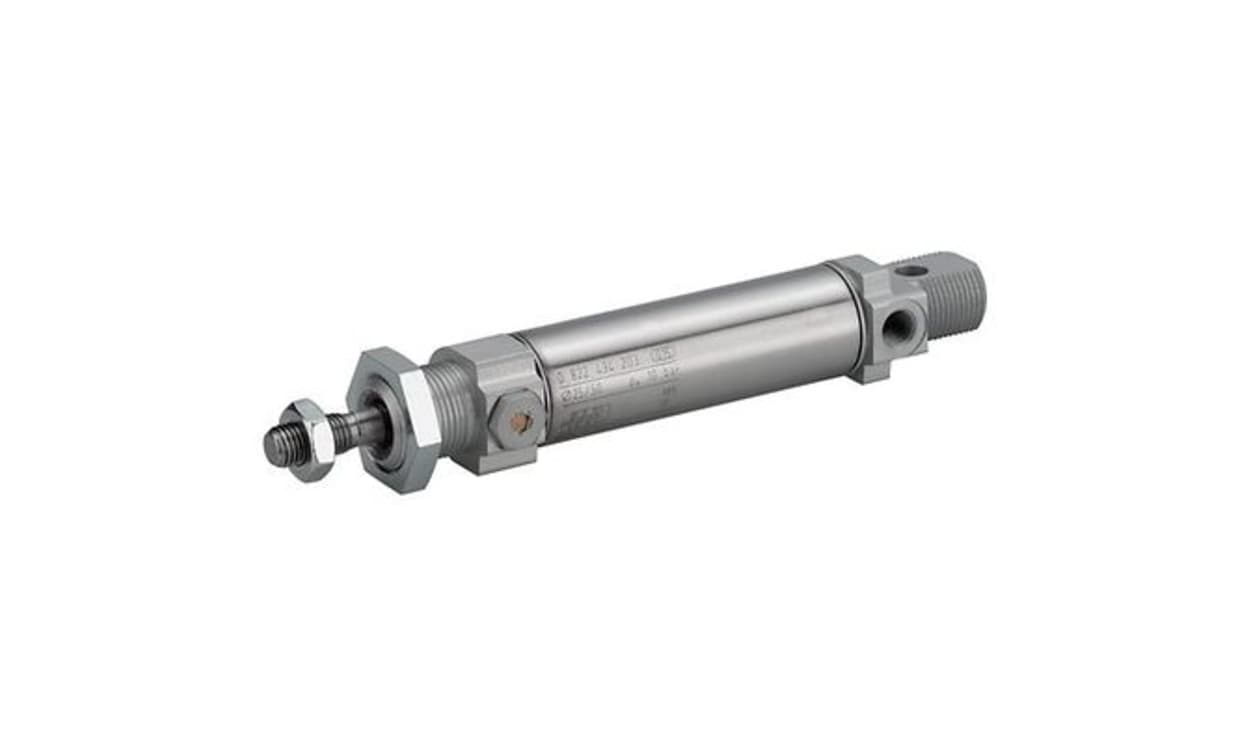

AVENTICS 0822434201 | MNI Single-Acting Roundline Cylinder | 25 mm Bore, 10 mm Stroke
Part Number : 0822434201
Built around a 25 mm piston bore with 10 mm of travel, AVENTICS 0822434201 is a single-acting roundline cylinder from the MNI series. For the 25 x 10 mm size, air enters through G 1/8 connections, maximum working pressure is 10 bar and the operating range is -25 °C to +80 °C.
- Bore x stroke: 25 x 10 mm
- MNI series, single-acting
- Pneumatic connection: G 1/8
- Piston rod thread: male
- Elastic cushioning type
- Maximum operating pressure 10 bar; -25 °C to +80 °C
For pricing, please contact our experts.
