AVENTICS 0822433203 Roundline Cylinder - , 20mm Bore, 50mm Stroke, MNI Series, Single Acting

Name: AVENTICS 0822433203 Roundline Cylinder - , 20mm Bore, 50mm Stroke, MNI Series, Single Acting
Brand: Aventics
SKU: 0822433203
Availability: OutOfStock

Part Number : 0822433203

Availability: Sold out

Detailed Description
Specifications

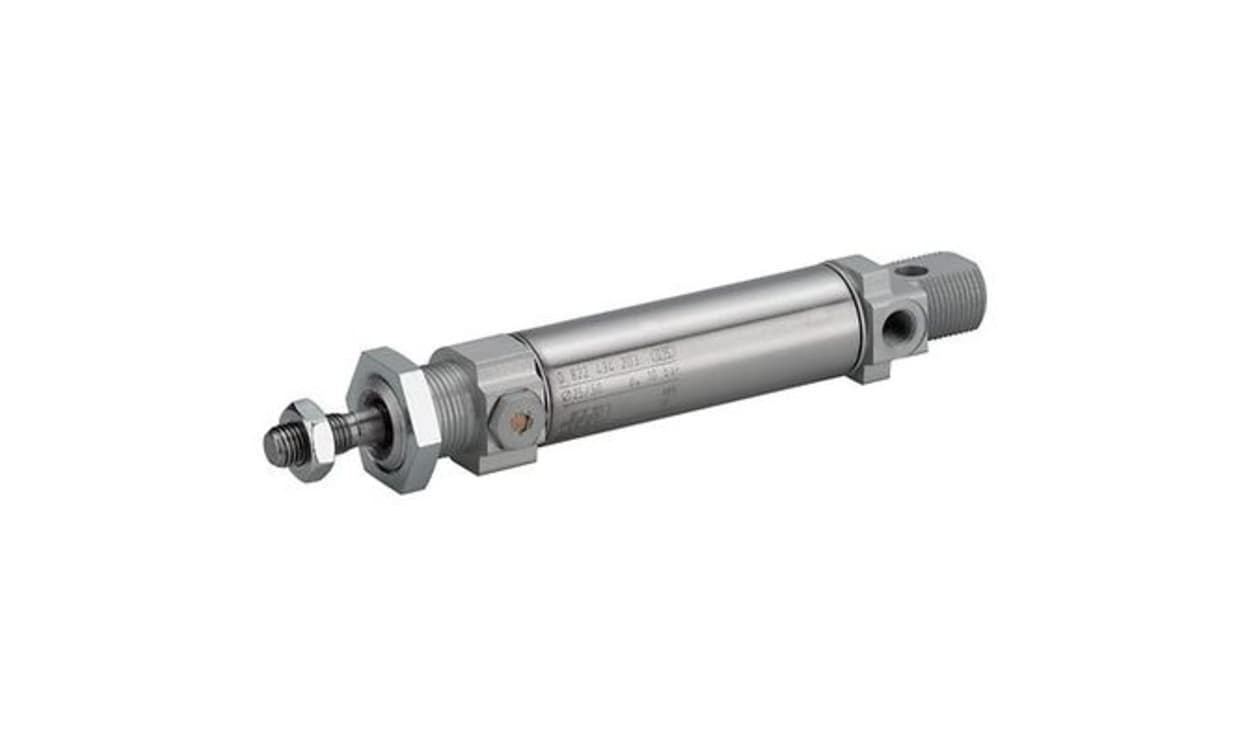

The Aventics mini cylinder from aventics is part of the MNI series, known for its reliability and efficiency in general machine construction. Designed to meet ISO 6432 standards, it features a robust build with a long service life. The single-acting cylinder is specifically engineered for quick retraction without pressure, ensuring optimal performance in various industrial applications. With a piston diameter of 20 mm and a maximum stroke of 50 mm, it caters well to compact spaces while delivering powerful output. This product is suitable for use with compressed air and operates efficiently even under challenging environmental conditions, with a working pressure span of 2 to 10 bar. Equipped with elastic cushioning for smooth operation, it embodies advanced technological efficiency and is an ideal choice for companies seeking high-quality pneumatic solutions.

Compact design enhances installation flexibility
Single-acting operation improves energy efficiency
High-quality materials ensure durability and longevity
Optimal performance with a wide pressure range
Cushioning system provides shock absorption for extended cylinder life
Compatible with standard industry components for easy integration
Maintains functionality across varied temperature conditions

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822433203
Action	Single
Bore	20mm
Stroke	50mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
