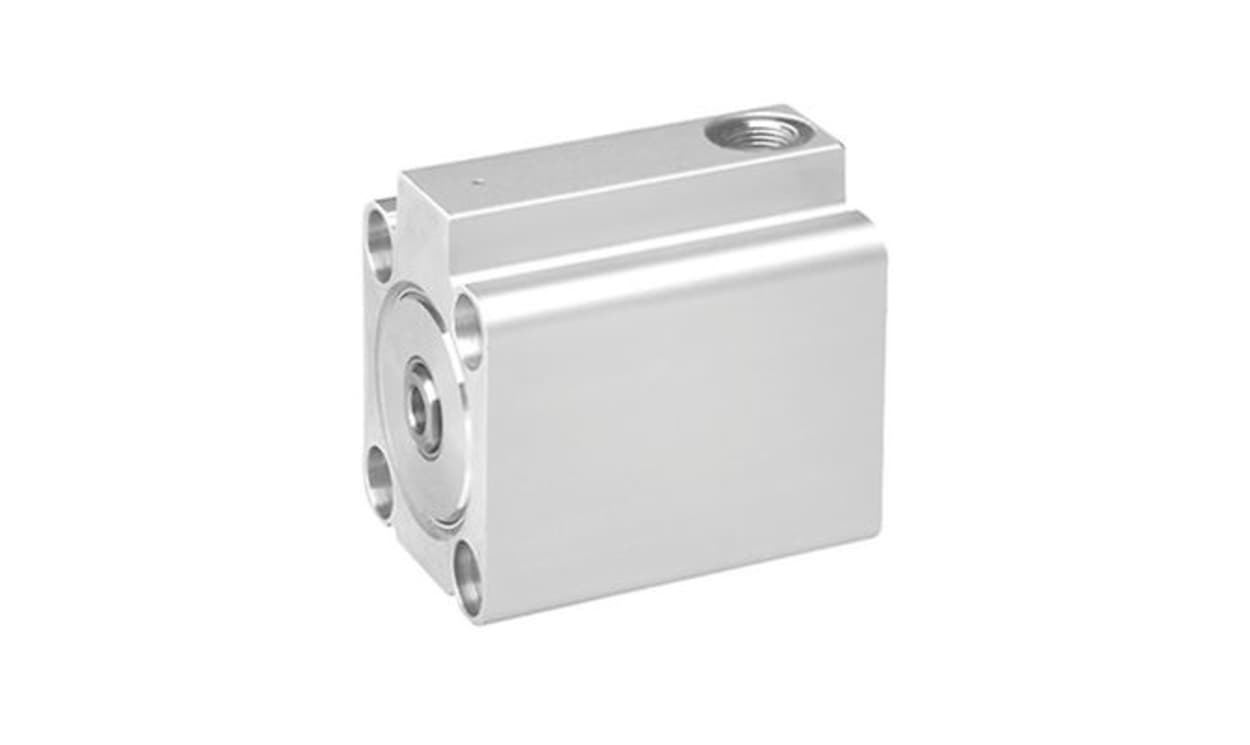

AVENTICS 0822406442 | KHZ Single Acting Piston Rod Cylinder | 32 mm Bore, 25 mm Stroke, G 1/8 Port

Name: AVENTICS 0822406442 | KHZ Single Acting Piston Rod Cylinder | 32 mm Bore, 25 mm Stroke, G 1/8 Port
Brand: Aventics
SKU: 0822406442
Availability: OutOfStock

Part Number : 0822406442

Sized at 32 mm bore by 25 mm stroke, part 0822406442 is a single-acting piston rod cylinder in the AVENTICS KHZ range. On this 32 x 25 mm version the rod end is female threaded and air connects via G 1/8.

0822406442: maximum operating pressure 10 bar
Temperature range -25 °C to +80 °C (32 mm bore)
Cushioning type: elastic (0822406442)
Female-threaded rod for the 32 mm / 25 mm version
Weight: 226 g (32 mm bore, 25 mm stroke)
KHZ range part 0822406442

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is engineered for precision and efficiency in compact machinery spaces. This robust actuator seamlessly integrates into tight installations, ensuring reliability even in demanding industrial environments. Constructed with high-quality materials, the cylinder boasts a single-acting design that provides exceptional performance with minimal maintenance needs. Its elastic cushioning and magnetic piston allow for smooth and safe operation, which is crucial for automation processes. This solution not only meets industry standards but also offers an effective balance between functionality and durability, making it an ideal choice for various applications.

Designed for optimal performance in restricted spaces
Utilises elastic cushioning for enhanced operational safety
Single-acting mechanism allows for retraction without pressure
Composed of high-grade stainless steel and aluminium for longevity
Works efficiently with a wide range of ambient temperatures
Integrated magnetic piston for precise positioning
Environmentally friendly and compliant with industry standards
Robust design reduces the likelihood of downtime during operations

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406442
Action	Single
Bore	32mm
Stroke	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Weight	226g
Minimum Operating Temperature	-25°C

AVENTICS 0822406442 | KHZ Single Acting Piston Rod Cylinder | 32 mm Bore, 25 mm Stroke, G 1/8 Port

DOWNLOAD CATALOG

0822406442 Datasheet - 0822406442 A700000012572393
