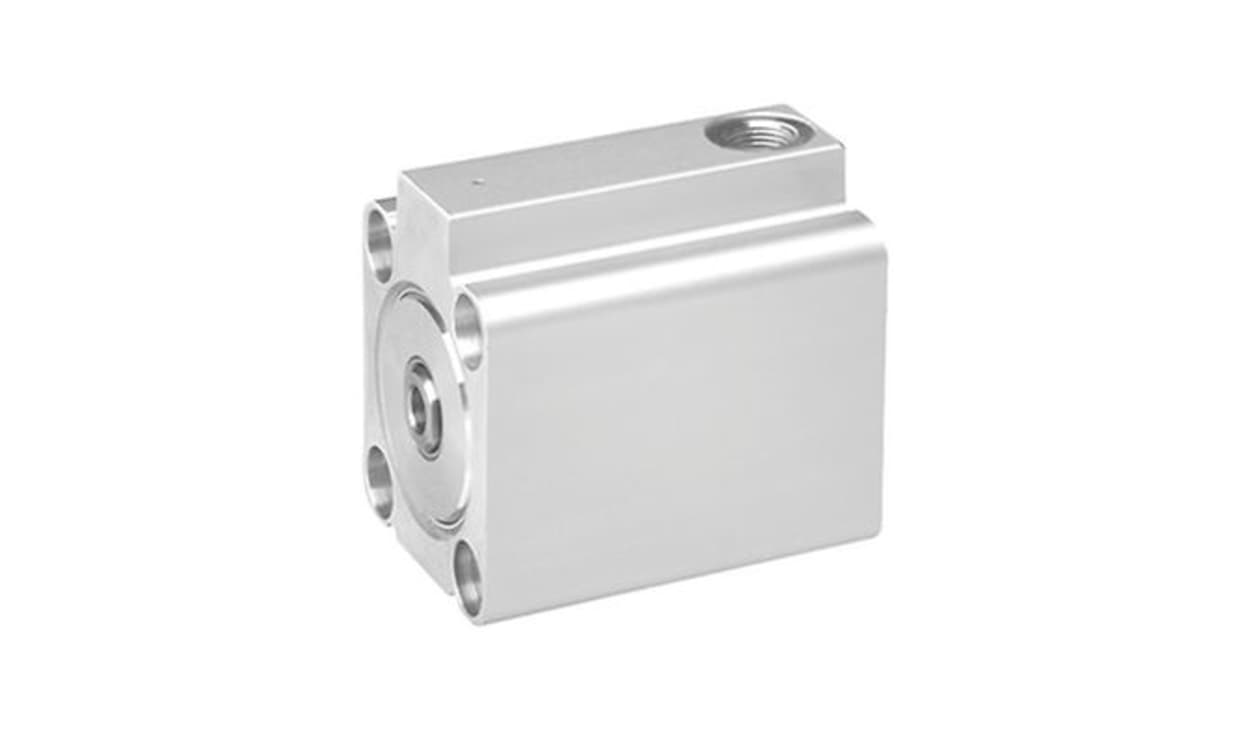

AVENTICS 0822406341 Pneumatic Piston Rod Cylinder - , 32mm Bore, 10mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406341 Pneumatic Piston Rod Cylinder - , 32mm Bore, 10mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406341
Availability: OutOfStock

Part Number : 0822406341

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from aventics, known for its Series KHZ, is expertly designed for applications requiring compact solutions. With the ability to operate in tight spaces, it enhances machinery integration effortlessly, ensuring both ease and safety. The non-standard configuration makes it a preferred choice for industries seeking reliable performance while maintaining operational efficiency. Outstandingly versatile, this cylinder caters to a variety of industrial needs, providing precise functionality. Its robust construction and thoughtfully designed features make it perfect for environments with stringent requirements, promising durability and longevity.

Single-acting functional principle allows for retraction without pressure
Elastic cushioning ensures smooth operation and reduces wear
Constructed with industry-standard materials to ensure reliable performance
Designed for operation within a wide temperature range to maintain efficacy
Pressure forces are optimised for both retracting and extracting functions
Compact design facilitates easy installation in limited spaces
Designed to operate effectively with specified oil content for optimal function

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406341
Action	Single
Bore	32mm
Stroke	10mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
