AVENTICS 0822406312 Pneumatic Piston Rod Cylinder - , 16mm Bore, 25mm Stroke, KHZ Series, Single Acting

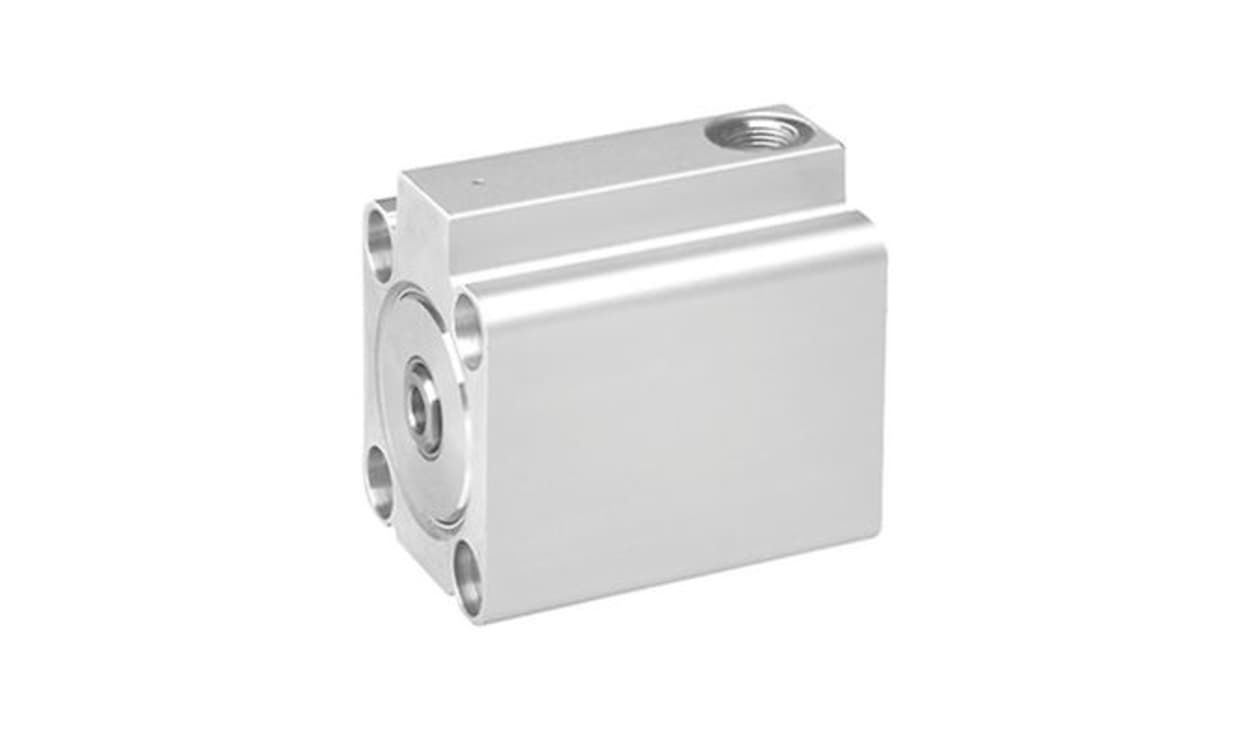

Name: AVENTICS 0822406312 Pneumatic Piston Rod Cylinder - , 16mm Bore, 25mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406312
Availability: OutOfStock

Part Number : 0822406312

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder, Series KHZ, is a remarkable engineering solution tailored for applications requiring precision in confined spaces. Built with a single-acting functional principle, this robust cylinder employs elastic cushioning to ensure gentle operation while maintaining a compact design. The product harmonises efficiency with reliability, featuring a piston diameter of 16 mm and a stroke of 25 mm, making it an ideal choice for industries where space is limited. This cylinder operates effectively across a wide temperature range, suitable for various ambient conditions. It is designed for seamless integration into machinery and is backed by the renowned craftsmanship of aventics, ensuring high performance in demanding environments.

Ideal for compact installations, allowing for efficient space utilisation
Single-acting design ensures simplicity and reliability in operation
Elastic cushioning enhances operational smoothness and reduces wear
Wide operating temperature range supports versatility in different environments
Magnetic piston option provides enhanced functionality for specific applications
Constructed with durable materials, ensuring longevity and robust performance
Designed to meet industry standards, offering peace of mind for users
Easy integration with existing machinery, saving installation time and effort

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406312
Bore	16mm
Stroke	25mm
Action	Single
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
