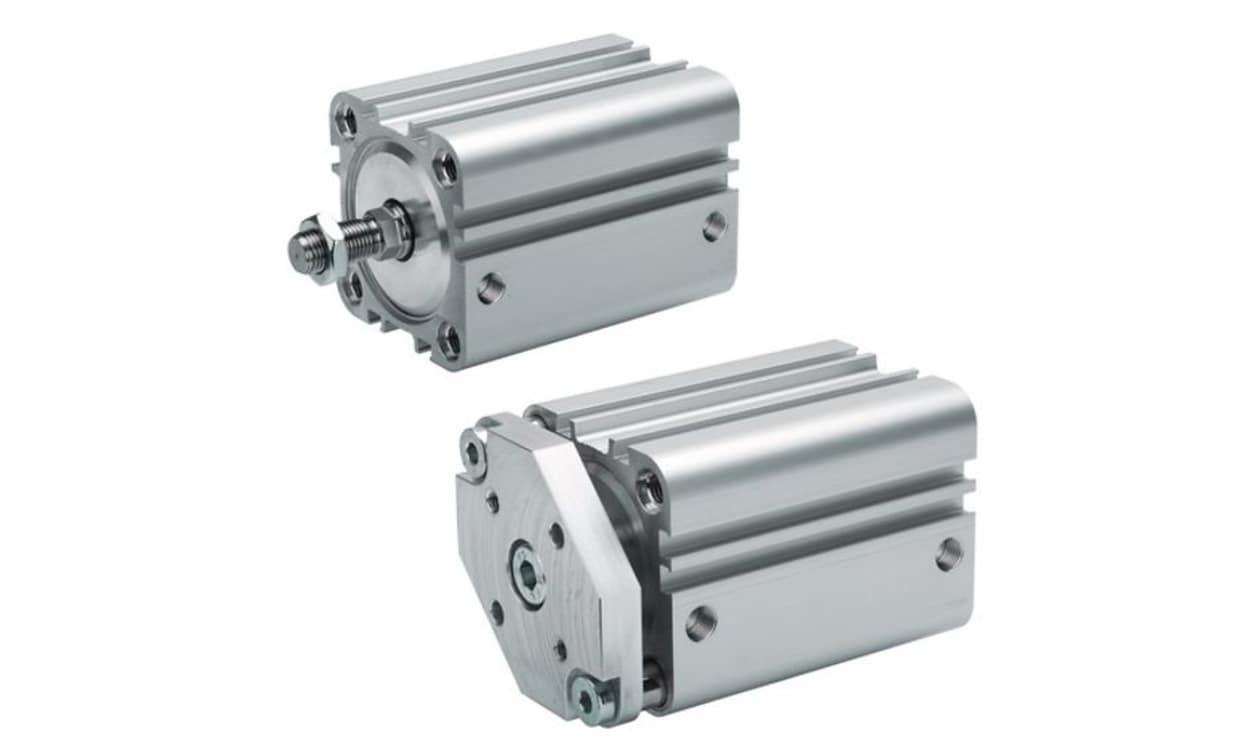

AVENTICS 0822398604 | KPZ Double Acting Compact Cylinder | 100 mm Bore, 25 mm Stroke, Female Rod Thread

Name: AVENTICS 0822398604 | KPZ Double Acting Compact Cylinder | 100 mm Bore, 25 mm Stroke, Female Rod Thread
Brand: Aventics
SKU: 0822398604
Availability: OutOfStock

Part Number : 0822398604

Bore 100 mm and stroke 25 mm identify the AVENTICS 0822398604, a KPZ compact cylinder with double-acting operation. On this 100 x 25 mm version the rod end is female threaded and air connects via G 1/8.

KPZ range part 0822398604
100 mm bore rated for 10 bar maximum, 25 mm travel
Works between -20 °C and +80 °C on the 100 x 25 mm version
Elastic cushioning on the 100 x 25 mm cylinder
Female rod thread and G 1/8 ports, part 0822398604

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder from the series KPZ represents the pinnacle of industrial efficiency and versatility. Designed for a wide array of applications, it adheres to the renowned NFE 49 004 standard, ensuring robustness and reliability. The unit features a double-acting functional principle, engaging seamlessly with its elastic cushioning for smooth operation. With a considerable piston diameter and adjustable stroke, this cylinder is engineered to deliver powerful performance while meeting stringent environmental requirements, including optional ATEX compliance. The construction utilises high-quality materials, including stainless steel and aluminium, to guarantee a long service life and dependable operation in various conditions. Whether you're automating processes or enhancing machinery, this compact cylinder stands ready to meet your needs with precision and ease.

Wide variety of variants cater to diverse applications
Robust construction ensures durability in industrial settings
Double-acting mechanism optimises performance and efficiency
Environmentally compliant with ATEX options available
Magnetic piston design allows for effective positioning
Flexible operating temperature range supports varied conditions
Low maintenance requirements lead to reduced operational costs
Customisation options through the internet configurator enhance user experience

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822398604
Stroke	25mm
Bore	100mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822398604 | KPZ Double Acting Compact Cylinder | 100 mm Bore, 25 mm Stroke, Female Rod Thread

DOWNLOAD CATALOG

0822398604 Datasheet - 0822398604 A700000012565776
