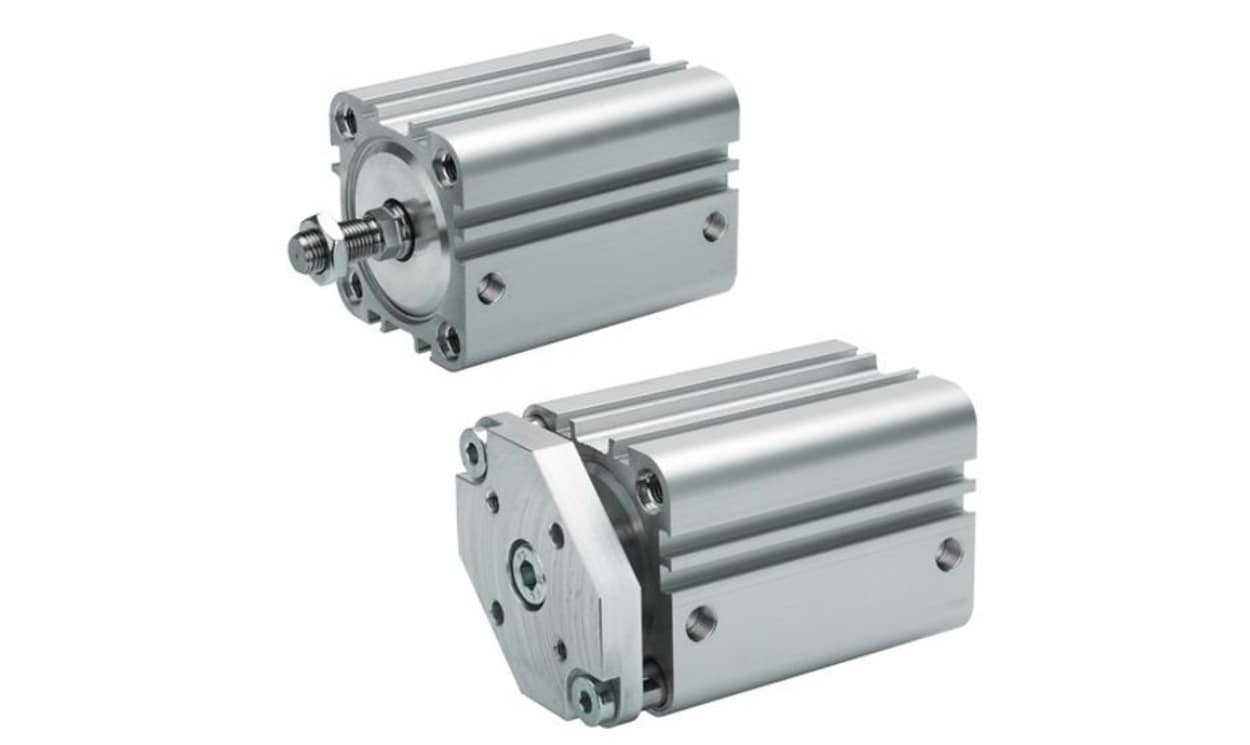

AVENTICS 0822397602 | KPZ Double Acting Compact Cylinder | 80 mm Bore, 15 mm Stroke, Female Rod Thread

Name: AVENTICS 0822397602 | KPZ Double Acting Compact Cylinder | 80 mm Bore, 15 mm Stroke, Female Rod Thread
Brand: Aventics
SKU: 0822397602
Availability: OutOfStock

Part Number : 0822397602

AVENTICS 0822397602 pairs a 15 mm stroke with an 80 mm bore in a double-acting KPZ compact cylinder. A female rod thread and G 1/8 porting complete this 15 mm stroke build.

0822397602 uses G 1/8 air connections
KPZ range part 0822397602
Up to 10 bar supply pressure for part 0822397602
Specified for -20 °C to +80 °C at 80 mm bore and 15 mm stroke
Cushioning type: elastic (0822397602)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Compact Cylinder is designed for various industrial applications, offering exceptional versatility and reliability. Built based on the widely acknowledged NFE 49 004 standard, this cylinder accommodates a multitude of configurations to meet your specific operational requirements. With its double-acting functional principle, the KPZ delivers consistent performance across diverse environmental conditions, including temperatures ranging from -20 °C to 80 °C. The cylinder boasts advanced elastic cushioning technology, ensuring optimal operation while minimising wear and tear over time.

Constructed with stainless steel for enhanced durability
Aluminium body components offer lightweight and robust structure
ATEX compliance offers safety for use in potentially explosive atmospheres
Extensive variant options available through the configurator for customised solutions

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822397602
Action	Double
Bore	80mm
Stroke	15mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822397602 | KPZ Double Acting Compact Cylinder | 80 mm Bore, 15 mm Stroke, Female Rod Thread

DOWNLOAD CATALOG

0822397602 Datasheet - 0822397602 A700000012566288
