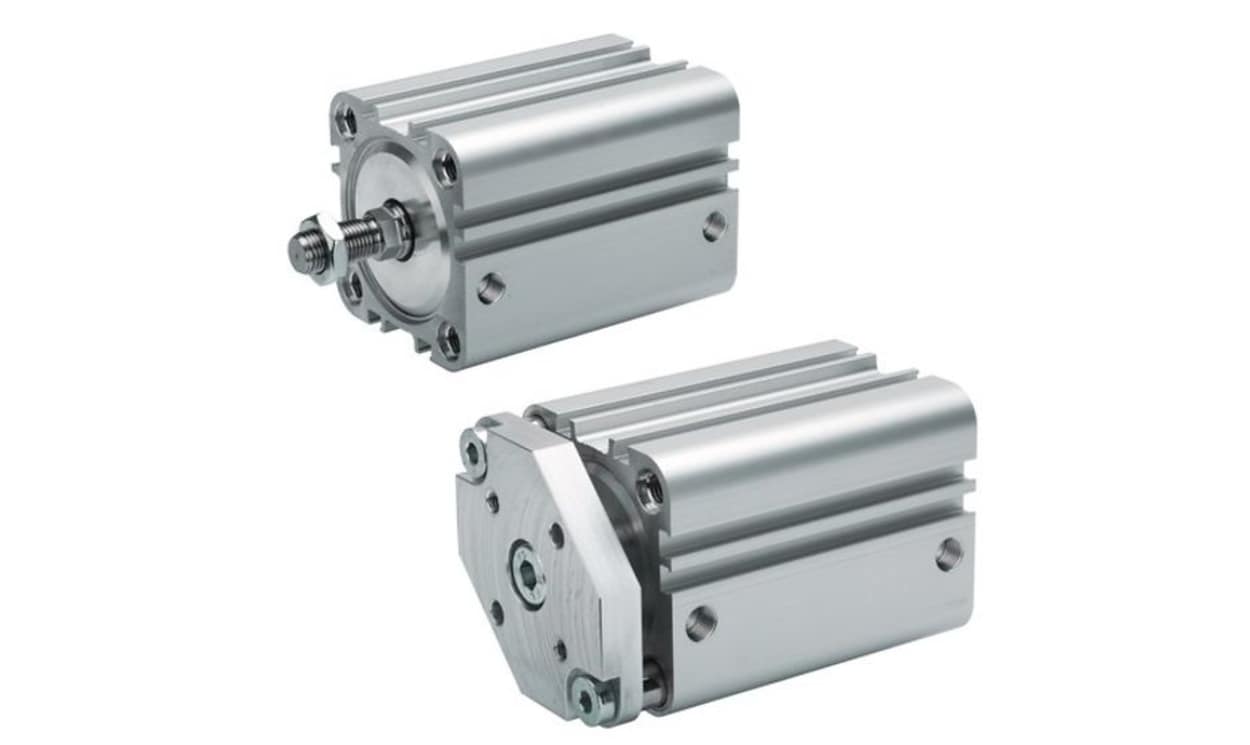

AVENTICS 0822396606 | KPZ Compact Pneumatic Cylinder | 63 mm Bore, 40 mm Stroke, Female Rod Thread

Name: AVENTICS 0822396606 | KPZ Compact Pneumatic Cylinder | 63 mm Bore, 40 mm Stroke, Female Rod Thread
Brand: Aventics
SKU: 0822396606
Availability: OutOfStock

Part Number : 0822396606

Part 0822396606 pairs a 63 mm bore with a 40 mm stroke in the AVENTICS KPZ compact cylinder range, double acting and fitted with a female rod thread. Supply lines connect to G 1/8 ports, with operation rated to a maximum of 10 bar at 63 mm bore.

Stroke of 40 mm over a 63 mm bore
Female piston rod thread on the 63 x 40 mm model
Female-thread 63 mm cylinder plumbed via G 1/8 ports
Female-thread 63 mm unit: elastic cushioning, double action
Rated to 10 bar and -20 to +80 °C (female-thread 63 mm)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder from the series KPZ revolutionises industrial applications with its ingenious design and robust performance. Engineered for versatility, it is suitable for various tasks across industries, ensuring dependable operation in demanding environments. The cylinder boasts a double-acting functional principle, providing effective control and power management, while its elastic cushioning minimises impact during operation. With a piston diameter of 63 mm and configurable up to 300 mm in stroke length, it caters to multiple applications, guiding your projects towards efficiency. The KPZ series is built to meet the NFE 49004 standard, promising quality and compliance. Its sturdy materials make it resilient, effectively handling pressures from 0.6 to 10 bar, thus guaranteeing a long lifespan even under challenging conditions.

Compact design optimises space without compromising performance
Double-acting mechanism enhances operational efficiency
Wide range of stroke lengths accommodates diverse application needs
Elastic cushioning protects internal components and reduces noise
Built from high-quality materials ensuring durability and longevity
Meets industry standards, ensuring reliability and compliance
Versatile use with optional ATEX certification for hazardous environments
Low ambient temperature operation down to -20 °C
Simplicity in maintenance with easily accessible components
Magnetic piston improves positioning accuracy and functionality

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822396606
Bore	63mm
Action	Double
Stroke	40mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822396606 | KPZ Compact Pneumatic Cylinder | 63 mm Bore, 40 mm Stroke, Female Rod Thread

DOWNLOAD CATALOG

0822396606 Datasheet - 0822396606 A700000012565804
