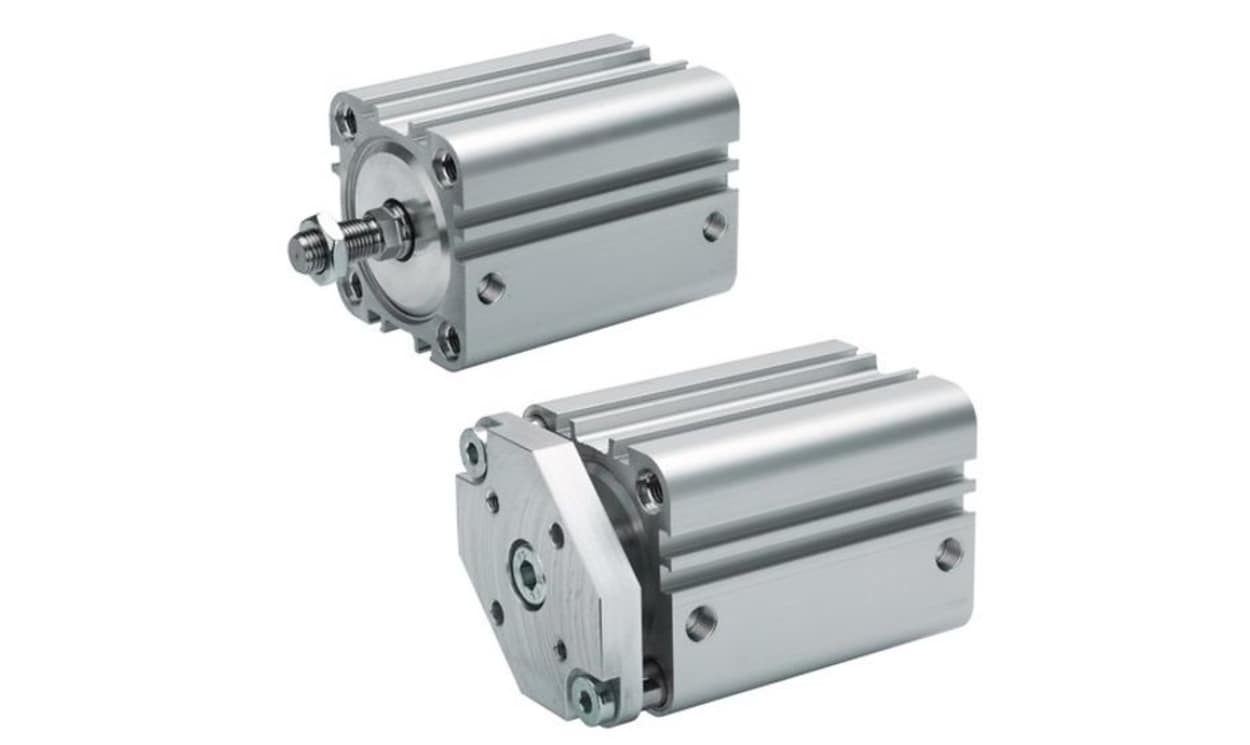

AVENTICS 0822392203 | Pneumatic Compact Cylinder | 25 mm Bore, 20 mm Stroke, KPZ Series

Name: AVENTICS 0822392203 | Pneumatic Compact Cylinder | 25 mm Bore, 20 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822392203
Availability: OutOfStock

Part Number : 0822392203

AVENTICS part 0822392203 is a KPZ series compact cylinder sized at 25 mm bore with 20 mm of stroke and double-acting operation. The 0822392203 operates from -20 °C to +80 °C and uses M5 connections, with a male piston rod thread.

Temperature range: -20 °C to +80 °C
Pneumatic and port connection: M5
Cushioning type: elastic
Male piston rod thread
Manufacturer series: KPZ
Rated for up to 10 bar

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder, part of the KPZ series, is engineered for versatility and efficiency in industrial applications. The KPZ compact cylinder boasts a robust design built on the widely recognised NFE 49 004 standard, providing an ideal solution for a wide range of tasks. With its double-acting functional principle, this product ensures reliable operation under various conditions, making it suitable for both simple and complex machinery setups. Featuring elastic cushioning and a magnetic piston, the KPZ series promises a smooth operational experience, which is complemented by options for ATEX certification, allowing usage in potentially explosive environments. This cylinder stands out with its exceptional environmental adaptability and user-friendly assembly, fitting seamlessly into new projects or upgrades.

Robust construction ensures longevity and durability
Versatile design suitable for diverse industrial applications
ATEX certification option for enhanced safety in hazardous environments
Double-acting principle allows for effective operation and efficiency
Elastic cushioning technology minimises impact and vibration
Magnetic piston enhances positioning and control capabilities
Wide range of stroke lengths provides flexibility for various needs
Compact dimensions optimise space in machinery layouts
Easy integration into existing setups, reducing downtime during installation
Manufactured using high-quality materials to withstand industrial conditions

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822392203
Stroke	20mm
Action	Double
Bore	25mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS 0822392203 | Pneumatic Compact Cylinder | 25 mm Bore, 20 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822392203 Datasheet - 0822392203 A700000012564798
