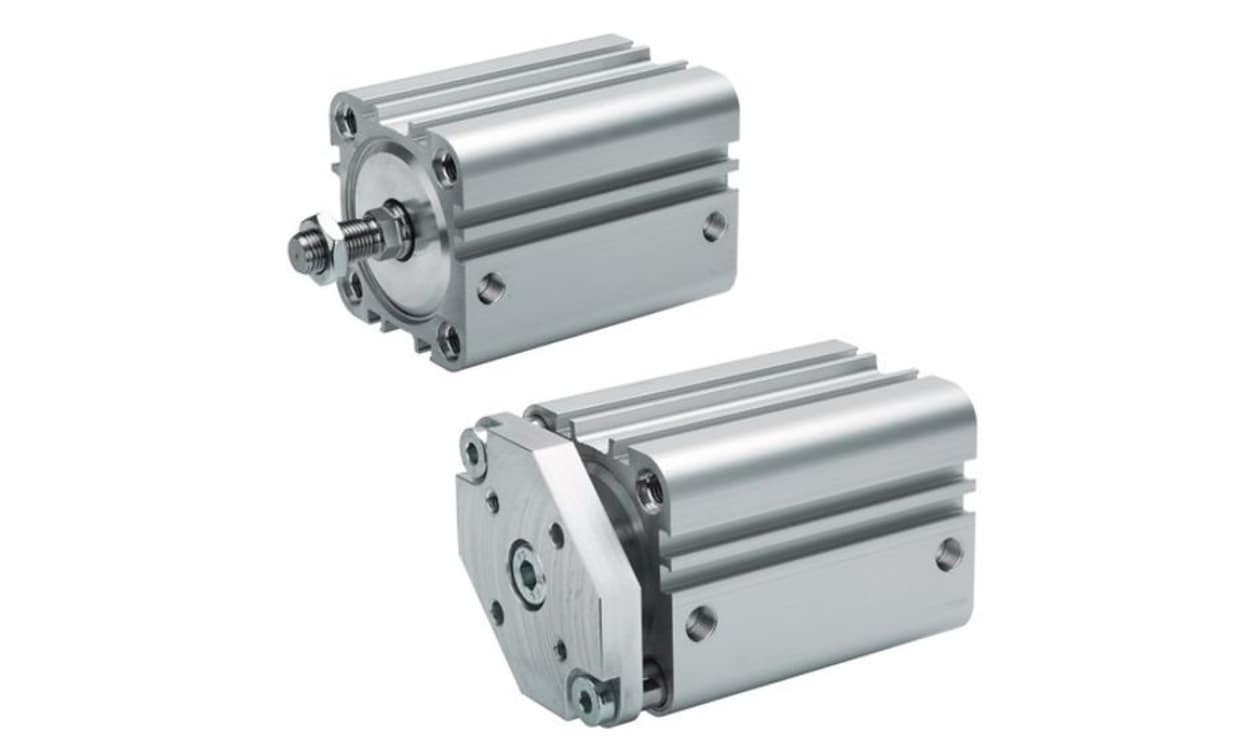

AVENTICS 0822392002 | Pneumatic Compact Cylinder | 25 mm Bore, 15 mm Stroke, KPZ Series

Name: AVENTICS 0822392002 | Pneumatic Compact Cylinder | 25 mm Bore, 15 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822392002
Availability: OutOfStock

Part Number : 0822392002

This double-acting KPZ series compact cylinder, AVENTICS 0822392002, combines a 15 mm stroke with a 25 mm bore. Air connects through M5 ports on the 0822392002, which has elastic cushioning and a female piston rod thread.

Bore 25 mm, stroke 15 mm, double-acting
Manufacturer series: KPZ
Pressure limit 10 bar
Temperature range: -20 °C to +80 °C
Port size M5
Cushioning type: elastic
Piston rod thread: female

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics series KPZ compact cylinder delivers exceptional performance in a variety of industrial applications. Designed with versatility in mind, this cylinder adheres to the widely recognised NFE 49 004 standard, ensuring compatibility and reliability across settings. Its double-acting functional principle and elastic cushioning offer smooth operation, making it ideal for dynamic environments. The integrated magnetic piston enhances operational efficiency, while robust environmental specifications guarantee performance in challenging conditions. With a wide selection of variants, this cylinder is engineered to meet specific application needs, combining quality materials such as aluminium and stainless steel for enhanced durability. Experience precision engineering with this compact cylinder that seamlessly integrates into your workflow, offering both reliability and efficiency.

Adheres to NFE 49 004 industrial standards for compatibility
Offers a wide range of variants to suit diverse applications
Double-acting design ensures efficient performance in dynamic settings
Elastic cushioning provides smooth operation and reduces impact
Integrated magnetic piston improves operational efficiency
Constructed from high-quality aluminium and stainless steel for durability
Wide environmental specifications make it suitable for various conditions

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822392002
Stroke	15mm
Bore	25mm
Action	Double
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822392002 | Pneumatic Compact Cylinder | 25 mm Bore, 15 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822392002 Datasheet - 0822392002 A700000012564422
