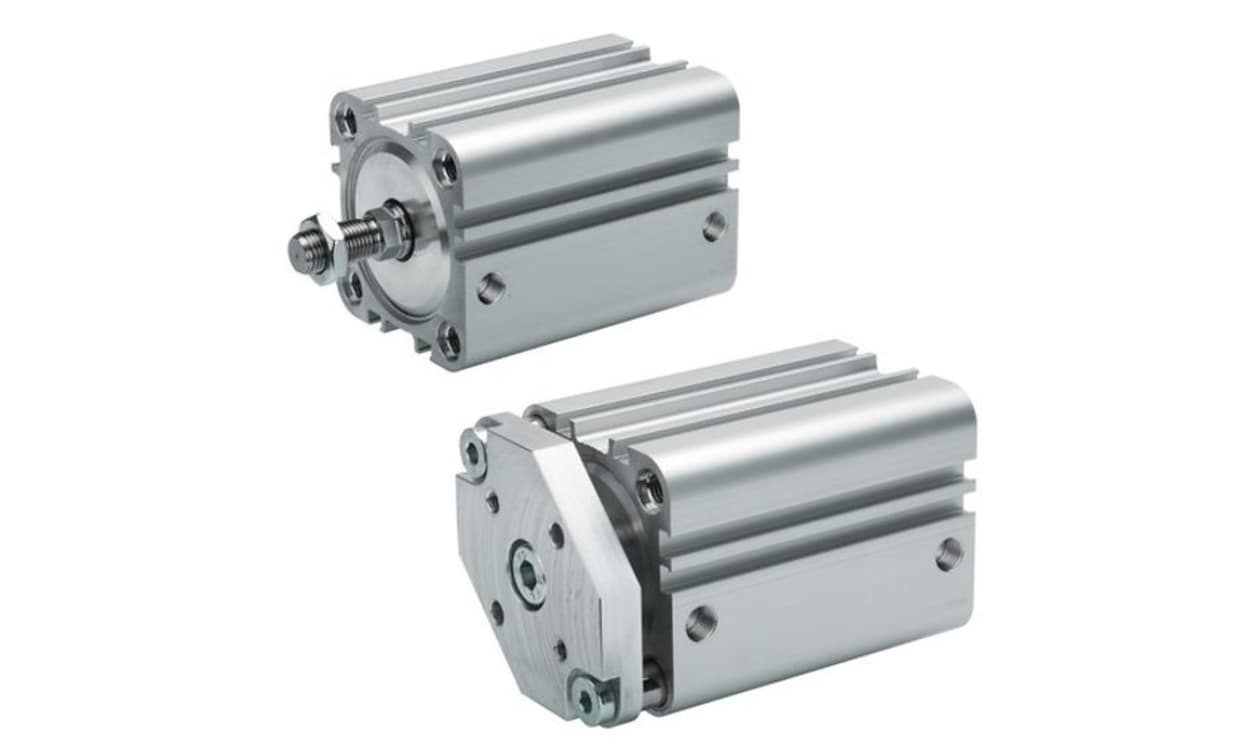

AVENTICS 0822391600 | Pneumatic Compact Cylinder | 20 mm Bore, 5 mm Stroke, KPZ Series

Name: AVENTICS 0822391600 | Pneumatic Compact Cylinder | 20 mm Bore, 5 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822391600
Availability: OutOfStock

Part Number : 0822391600

With a 20 mm bore and 5 mm stroke, the AVENTICS 0822391600 is a double-acting compact cylinder from the KPZ series. Rated to 10 bar, this 20 x 5 mm unit (0822391600) has a female piston rod thread and takes M5 fittings.

Female piston rod thread
KPZ series, double-acting
Rated for up to 10 bar
Works between -20 °C and +80 °C
Port size M5
Elastic cushioning

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder, part of the Series KPZ, is engineered for versatility in various industrial applications. It boasts an intelligent design based on the established NFE 49 004 standard, enabling it to perform reliably under diverse conditions. The cylinder is equipped with double-acting functionality, ensuring efficient operation while maintaining a robust and compact form factor. Its various options, including ATEX compliance and the ability to accommodate a wide range of piston strokes, make it an excellent choice for demanding environments. Additionally, with an operating temperature range of -20°C to 80°C, this cylinder caters to a multitude of operational needs, ensuring seamless integration in automated systems. The use of high-quality materials throughout, including stainless steel for the piston rod, guarantees durability and longevity, further reinforcing its suitability for industrial tasks.

Designed for a wide variety of applications with a compact footprint
Double-acting functional principle ensures efficient cycling
Offers optional ATEX certification for hazardous environments
Constructed with high-quality stainless steel for enhanced durability
Temperature tolerance from -20°C to 80°C allows for versatile usage
Low maintenance requirements thanks to superior material selection
Adaptable stroke lengths up to 300 mm catering to specific project needs
Magnetic piston feature facilitates precise positional feedback
Elastic cushioning provides smooth operation and minimal wear

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822391600
Stroke	5mm
Bore	20mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822391600 | Pneumatic Compact Cylinder | 20 mm Bore, 5 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822391600 Datasheet - 0822391600 A700000012563972
