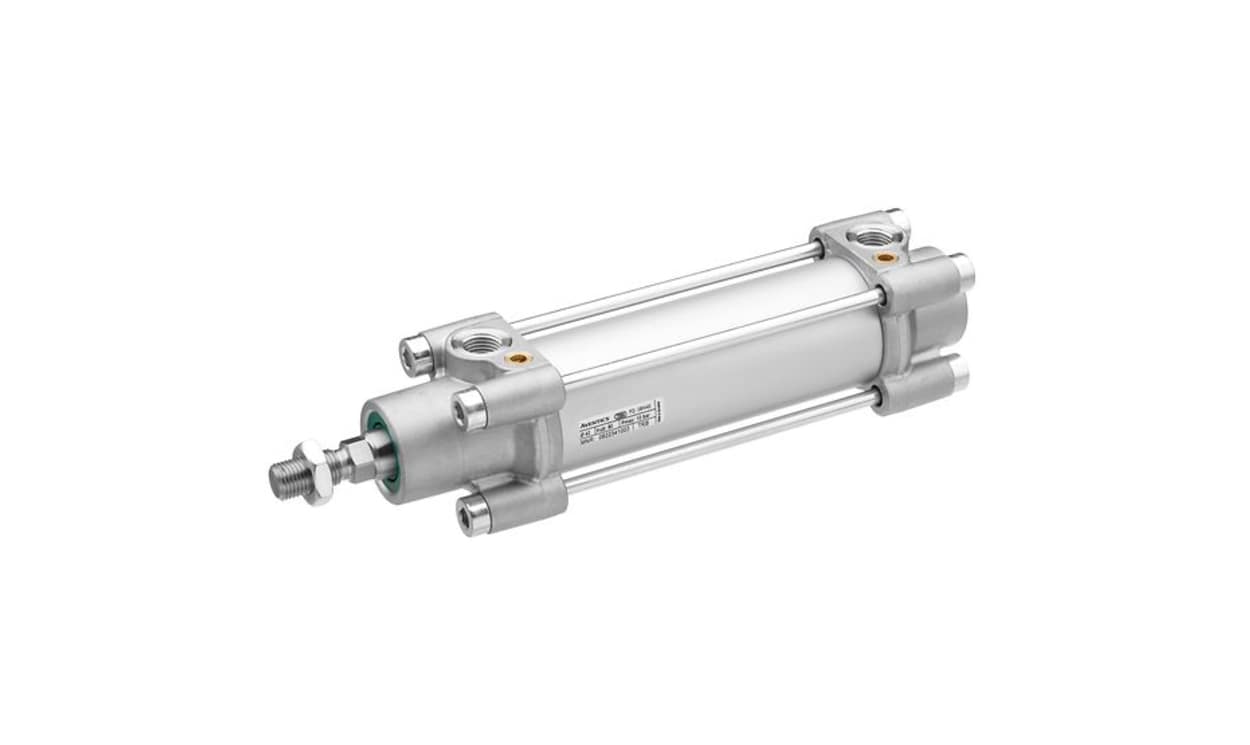

AVENTICS 0822345001 | Pneumatic Piston Rod Cylinder | 100 mm Bore, 25 mm Stroke, TRB Series

Name: AVENTICS 0822345001 | Pneumatic Piston Rod Cylinder | 100 mm Bore, 25 mm Stroke, TRB Series
Brand: Aventics
SKU: 0822345001
Availability: OutOfStock

Part Number : 0822345001

This double-acting TRB series piston rod cylinder, AVENTICS 0822345001, combines a 25 mm stroke with a 100 mm bore. Air connects through G 1/2 ports on the 0822345001, which has pneumatic cushioning and ISO 15552 conformity.

Bore 100 mm, stroke 25 mm, double-acting
Pneumatic and port connection: G 1/2
Cushioning type: pneumatic
Piston rod thread: male
ISO standard: 15552
Manufacturer series: TRB
Rated for up to 10 bar

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder ISO 15552, Series TRB, combines robust engineering with cutting-edge technology to meet the demands of heavy-duty industrial applications. Designed for sectors such as automotive, steel, and machinery, this cylinder delivers exceptional performance where strength and reliability are paramount. Its double-acting functional principle ensures optimal operation in even the most challenging environments. With features like pneumatic adjustable cushioning and a magnetic piston, this product is engineered for longevity and efficiency, setting new standards in performance. The environmentally conscious design adheres to industry standards, making it a preferred choice for professionals seeking durable and sustainable solutions.

Offers a double-acting functional principle for effective operational performance
Pneumatic adjustable cushioning enhances user control and comfort
Magnetic piston design aids in precise positioning and feedback
Constructed to abide by ISO 15552 standards for enhanced compatibility
Built with materials offering durability in harsh conditions, such as stainless steel and polyurethane
Lightweight design contributes to easier handling and installation processes
ATEX certification option available for use in potentially explosive environments

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822345001
Bore	100mm
Stroke	25mm
Action	Double
Pneumatic Connection	G 1/2
Port Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS 0822345001 | Pneumatic Piston Rod Cylinder | 100 mm Bore, 25 mm Stroke, TRB Series

DOWNLOAD CATALOG

0822345001 Datasheet - 0822345001 A700000012562027

0822345001 Datasheet - 0822345001 A700000012562347
