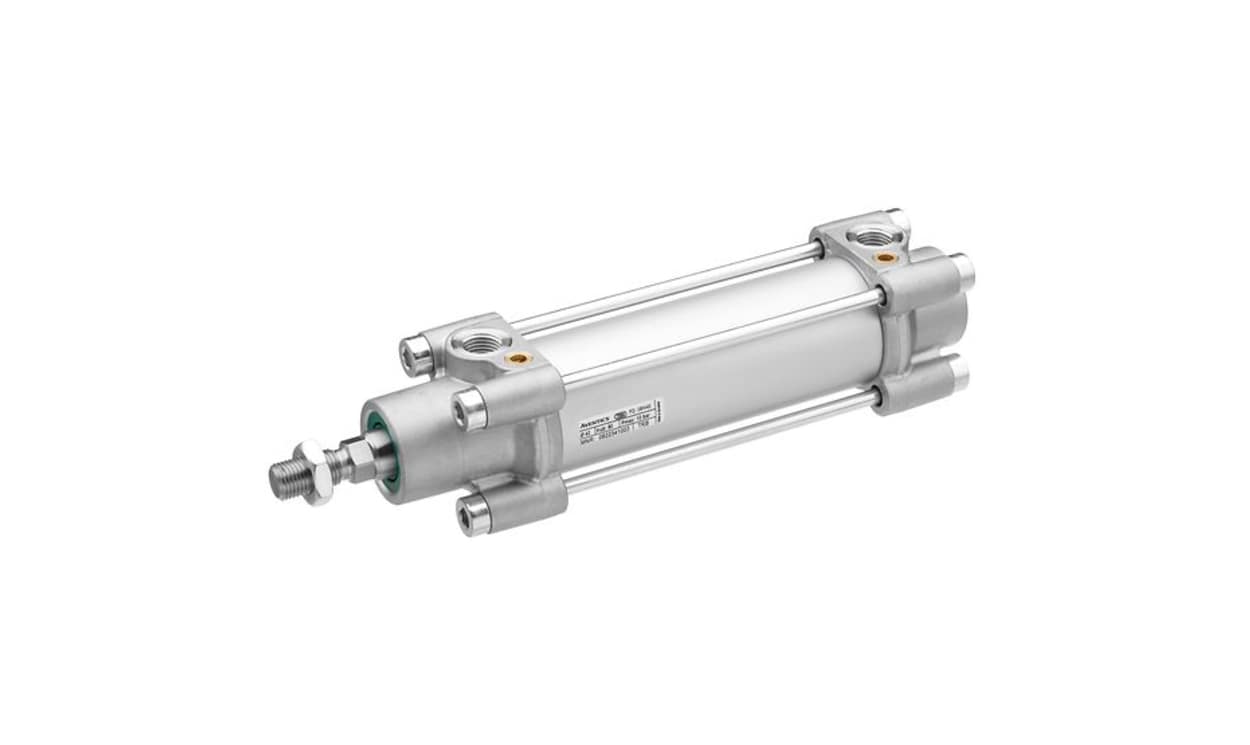

AVENTICS 0822344011 | Pneumatic Piston Rod Cylinder | 80 mm Bore, 500 mm Stroke, TRB Series

Name: AVENTICS 0822344011 | Pneumatic Piston Rod Cylinder | 80 mm Bore, 500 mm Stroke, TRB Series
Brand: Aventics
SKU: 0822344011
Availability: OutOfStock

Part Number : 0822344011

AVENTICS part 0822344011 is a TRB series piston rod cylinder sized at 80 mm bore with 500 mm of stroke and double-acting operation. The 0822344011 operates from -20 °C to +80 °C and uses G 3/8 connections, with ISO 15552 conformity.

Pressure limit 10 bar
Works between -20 °C and +80 °C
Port size G 3/8
Cushioning type: pneumatic
Piston rod thread: male
Conforms to ISO 15552

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder, adhering to the ISO 15552 standard, exemplifies the pinnacle of engineering designed for heavy-duty applications in various industrial settings. The AVENTICS Series TRB is crafted to meet the demands of rigorous operations, such as those found in automotive, machining, and mining sectors. Its robust construction ensures reliable performance, while the double-acting functional principle delivers efficient power throughout its stroke length. With options for ATEX certification and a wide ambient temperature range, this cylinder is suitable for diverse environments, guaranteeing both safety and adaptability. Experience optimal efficiency and longevity thanks to its integrated pneumatic cushioning system, which enhances the life cycle of the cylinder while maintaining precision in operation.

Designed for heavy-duty industrial use principles
Compatible with ATEX regulations for increased safety
Pneumatic cushioning enables precise control and reduces wear
Robust materials ensure longevity in challenging conditions
Wide temperature and pressure adaptability enhance versatility
Offers a variety of stroke lengths tailored to specific needs
Compact design encourages easy installation in tight spaces
Magnetic piston enhances operational reliability

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822344011
Stroke	500mm
Action	Double
Bore	80mm
Port Connection	G 3/8
Pneumatic Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822344011 | Pneumatic Piston Rod Cylinder | 80 mm Bore, 500 mm Stroke, TRB Series

DOWNLOAD CATALOG

0822344011 Datasheet - 0822344011 A700000012562011

0822344011 Datasheet - 0822344011 A700000012562335
