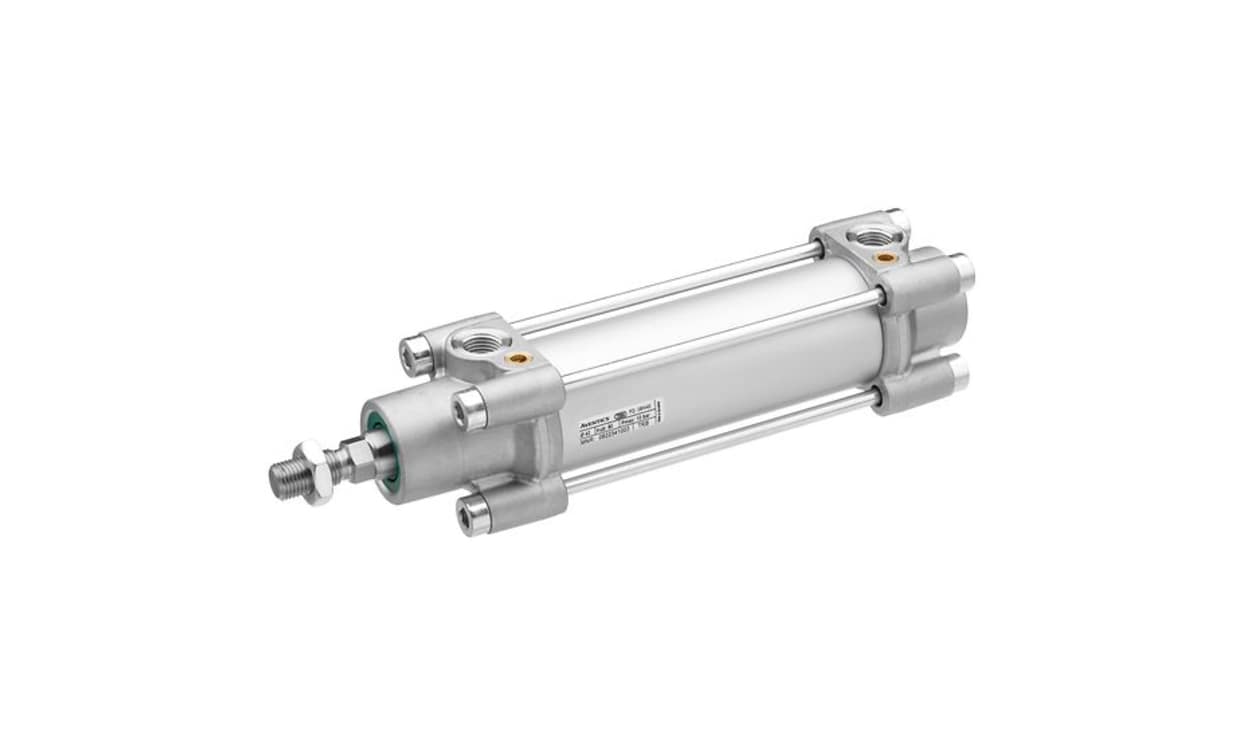

AVENTICS 0822344005 | Pneumatic Piston Rod Cylinder | 80 mm Bore, 125 mm Stroke, TRB Series

Name: AVENTICS 0822344005 | Pneumatic Piston Rod Cylinder | 80 mm Bore, 125 mm Stroke, TRB Series
Brand: Aventics
SKU: 0822344005
Availability: OutOfStock

Part Number : 0822344005

The 0822344005 from AVENTICS is a 80 mm bore, 125 mm stroke piston rod cylinder in the TRB series, working double-acting. Specified for up to 10 bar, the 0822344005 carries ISO 15552 conformity and pneumatic cushioning.

Bore 80 mm, stroke 125 mm, double-acting
Operating temperature -20 °C to +80 °C
Port size G 3/8
Cushioning type: pneumatic
Male piston rod thread
ISO standard: 15552
Manufacturer series: TRB

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder from the series TRB, designed in accordance with ISO 15552 standards, exemplifies durability and efficiency in heavy-duty applications. Tailored for industries such as automotive, mining, and machinery, this cylinder features a double-acting functional principle that ensures reliable performance across various settings. The integration of pneumatic adjustable cushioning promotes smooth operation while extending service life. Built with high-quality materials, the cylinder's construction offers exceptional resistance to wear and environmental challenges. Its compatibility with ATEX standards highlights its suitability for diverse operational environments, enhancing safety without compromising on power. The tie rod cylinder assures precise movement and power, making it a trusted choice for professionals seeking to optimise their pneumatic systems.

Designed for heavy-duty applications, ensuring enhanced durability
Pneumatic adjustable cushioning for smooth operation
Double-acting functional principle maximises efficiency
Constructed from high-quality materials for increased longevity
Complies with ISO 15552 standards for reliability
Compatible with ATEX certifications for safety in hazardous environments
Offers a wide operating temperature range for versatile use
Lightweight design contributes to ease of installation and maintenance

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822344005
Stroke	125mm
Bore	80mm
Action	Double
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS 0822344005 | Pneumatic Piston Rod Cylinder | 80 mm Bore, 125 mm Stroke, TRB Series

DOWNLOAD CATALOG

0822344005 Datasheet - 0822344005 A700000012561979

0822344005 Datasheet - 0822344005 A700000012562311
