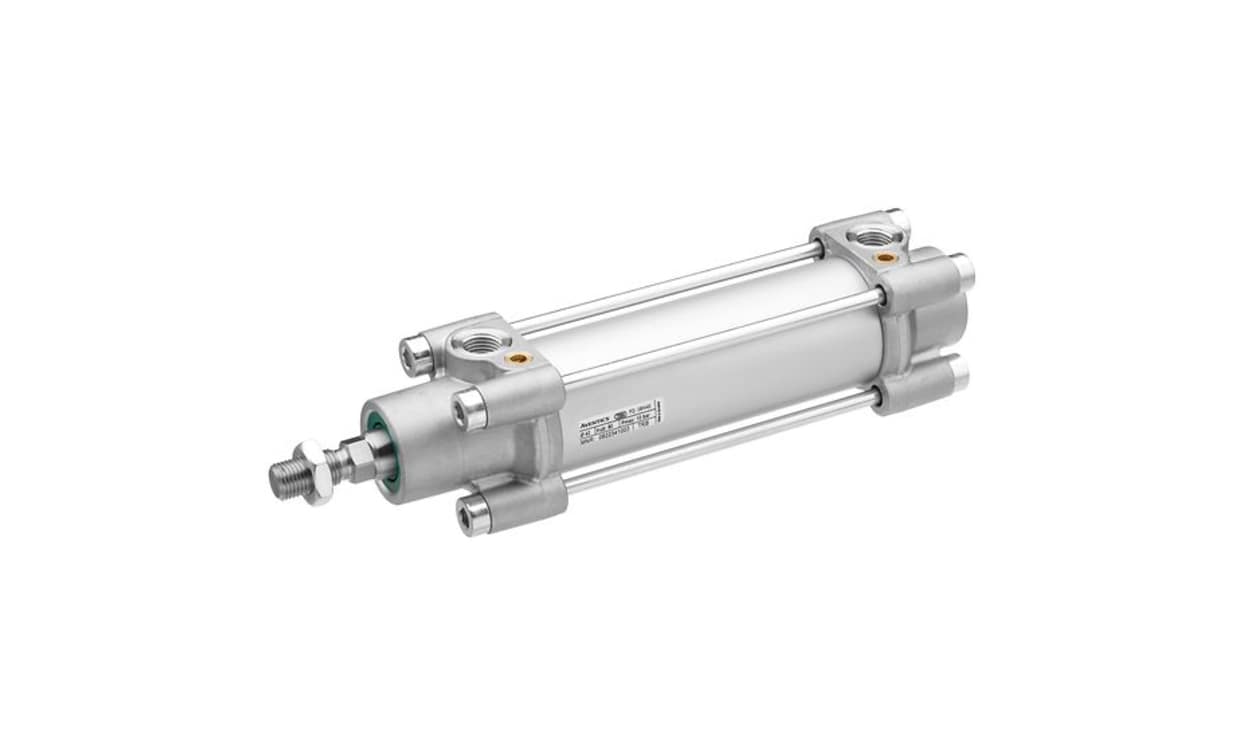

AVENTICS 0822342001 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 25 mm Stroke, TRB Series

Name: AVENTICS 0822342001 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 25 mm Stroke, TRB Series
Brand: Aventics
SKU: 0822342001
Availability: OutOfStock

Part Number : 0822342001

25 mm of stroke on a 50 mm bore defines the AVENTICS 0822342001, a double-acting TRB series piston rod cylinder. On the 0822342001, ISO 15552 conformity is combined with G 1/4 porting and operation up to 10 bar.

Operating temperature -20 °C to +80 °C
Pneumatic and port connection: G 1/4
Pneumatic cushioning
Male piston rod thread
Conforms to ISO 15552
Manufacturer series: TRB

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder from the ISO 15552 Series TRB is engineered for heavy-duty applications, demonstrating exceptional performance across diverse industries such as automotive, mining, and machinery. Ideal for environments that demand reliability, this cylinder features a robust design complemented by pneumatic adjustable cushioning and a magnetic piston, enhancing its operational efficiency. With a maximum working pressure of 10 bar and temperature resilience from -20°C to 80°C, it ensures optimal functionality under varying conditions. The aventics TRB cylinder is crafted from high-quality materials, providing durability and longevity while maintaining strict compliance with industry standards. Elevate your industrial processes with a cylinder that perfectly balances power and precision.

Designed for heavy-duty tasks in diverse industrial settings
Pneumatic adjustable cushioning for enhanced operational comfort
Magnetic piston for reliable detection and control
Wide temperature operating range ensures functionality in various climates
Constructed from premium materials for long-lasting performance
Meets ISO 15552 standards, ensuring compatibility with existing systems
Double-acting design provides efficient force application and retraction
Allows for easy integration into complex machinery setups

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822342001
Stroke	25mm
Bore	50mm
Action	Double
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822342001 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 25 mm Stroke, TRB Series

DOWNLOAD CATALOG

0822342001 Datasheet - 0822342001 A700000012559841

0822342001 Datasheet - 0822342001 A700000012561465
