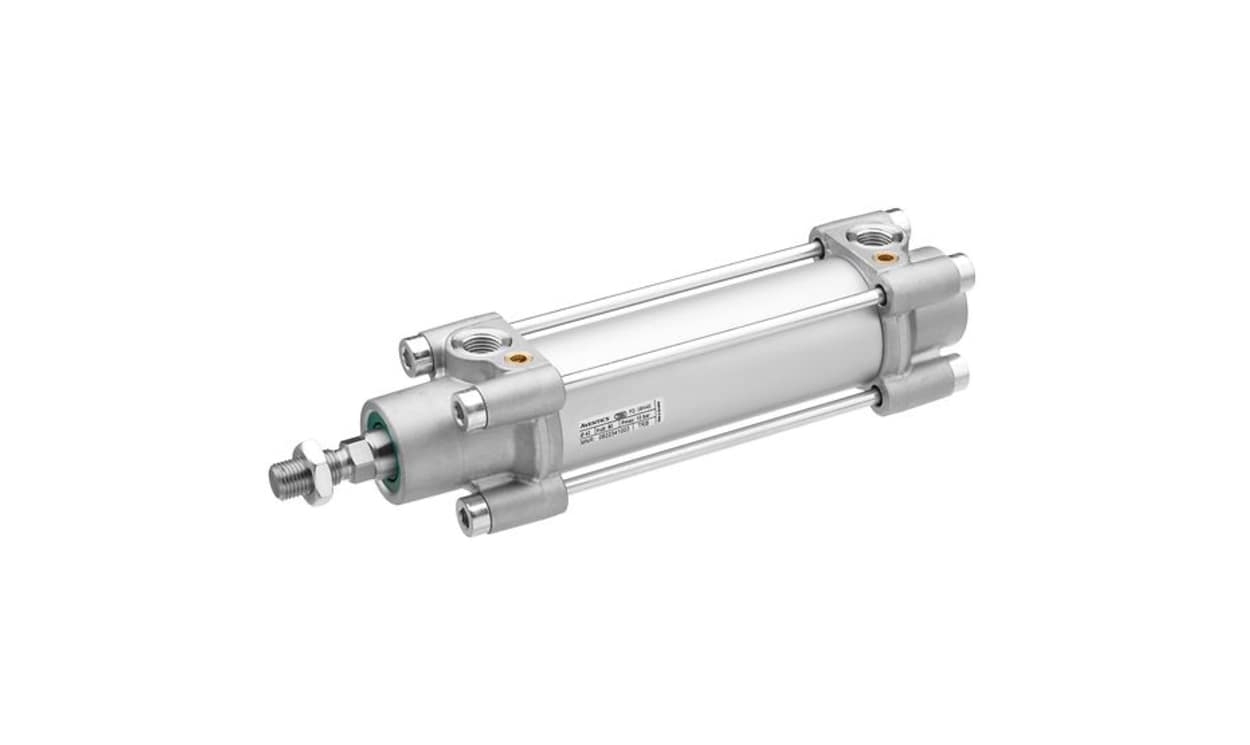

AVENTICS 0822341006 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 160 mm Stroke, Double Acting

Name: AVENTICS 0822341006 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 160 mm Stroke, Double Acting
Brand: Aventics
SKU: 0822341006
Availability: OutOfStock

Part Number : 0822341006

Bore 40 mm, stroke 160 mm: the AVENTICS 0822341006 is a double-acting guided cylinder in the TRB family. AVENTICS documents pneumatic cushioning, G 1/4 ports and ISO 15552 conformity for 0822341006.

40 mm bore with 160 mm stroke
TRB series double-acting cylinder, part 0822341006
Maximum pressure 10 bar, 40 mm bore, 160 mm stroke
Temperature -20 to +80 °C (160 mm stroke)
Piston rod: male thread (40 mm x 160 mm)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder ISO 15552, Series TRB is a robust and efficient solution tailored for demanding industrial applications. Designed primarily for industries such as automotive, mining, and heavy-duty machinery, this cylinder excels in environments that require high performance and durability. With a double-acting functional principle and adjustable pneumatic cushioning, it offers precise control and reliability. The cylinder's construction incorporates quality materials, including stainless steel and die-cast aluminium, ensuring longevity even under rigorous operating conditions. Its compatibility with standard ISO 15552 dimensions facilitates easy integration into existing systems, making it a preferred choice for professionals seeking dependable pneumatic solutions. This cylinder stands out not only for its impressive specifications but also for its versatility, catering to various stroke lengths and pressure requirements.

Designed for heavy-duty applications across multiple industries
Double-acting principle enhances efficiency and performance
Pneumatic adjustable cushioning provides excellent control during operation
Manufactured with high-quality materials for increased durability
Integrates seamlessly with ISO 15552 standard dimensions
Offers optional ATEX certification for hazardous environments
Wide operating temperature range ensures functionality in diverse conditions
Low maintenance requirements reduce downtime and operational costs
Lightweight design contributes to easier handling and installation

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822341006
Action	Double
Stroke	160mm
Bore	40mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822341006 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 160 mm Stroke, Double Acting

DOWNLOAD CATALOG

0822341006 Datasheet - 0822341006 A700000012559651

0822341006 Datasheet - 0822341006 A700000012561327
