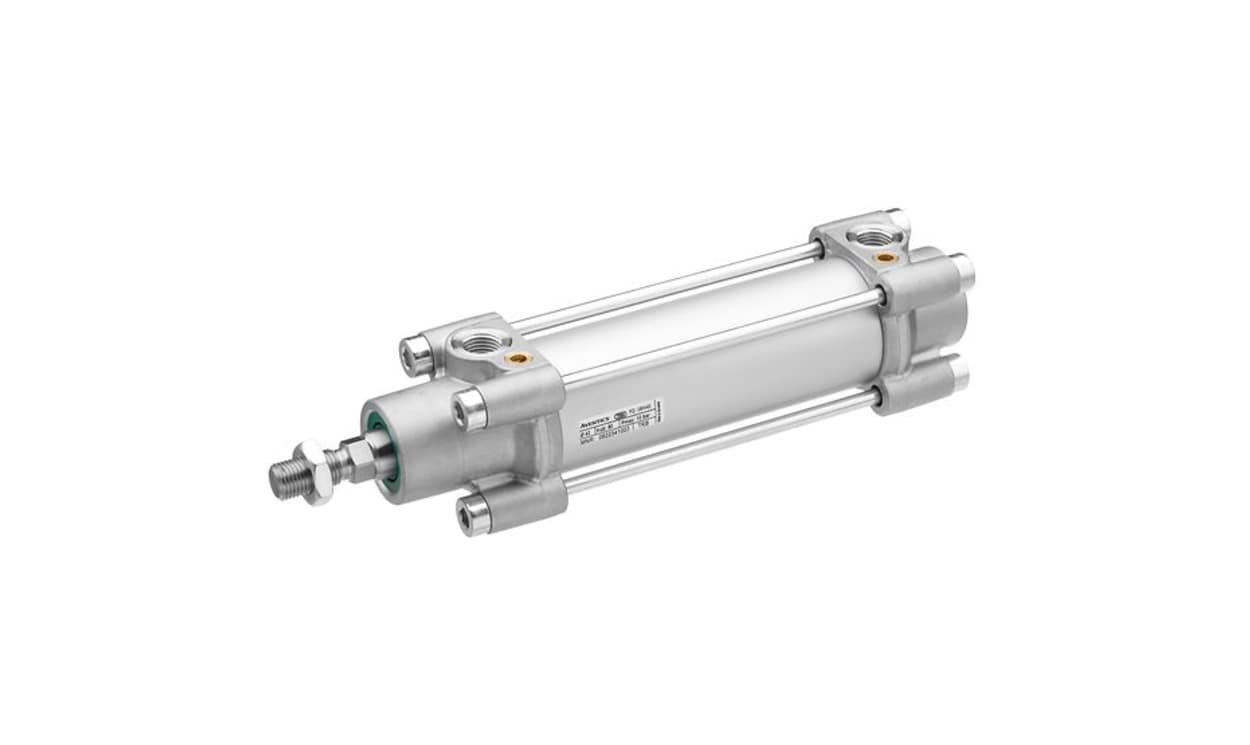

AVENTICS 0822340005 | TRB Pneumatic Piston Rod Cylinder | 32 mm Bore, 125 mm Stroke, Double Acting

Name: AVENTICS 0822340005 | TRB Pneumatic Piston Rod Cylinder | 32 mm Bore, 125 mm Stroke, Double Acting
Brand: Aventics
SKU: 0822340005
Availability: OutOfStock

Part Number : 0822340005

Bore 32 mm, stroke 125 mm: the AVENTICS 0822340005 is a double-acting piston rod cylinder in the TRB family. The TRB 32 mm body comes with pneumatic cushioning, G 1/8 ports and ISO 15552 conformity.

Size: 32 mm bore x 125 mm stroke
Series TRB; action: double
Part 0822340005 pressure rating: 10 bar maximum
Temperature -20 to +80 °C (125 mm stroke)
Piston rod: male thread (32 mm x 125 mm)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder from the series TRB represents a robust solution for industries requiring high-performance actuation. Built in accordance with ISO 15552 standards, it excels in applications under heavy-duty conditions, making it suitable for sectors such as automotive, mining, and machinery. The cylinder features pneumatic adjustable cushioning and a magnetised piston for enhanced functionality. With an operational temperature range between -20 °C to 80 °C and a maximum working pressure of 10 bar, it is designed to withstand the rigours of industrial environments. Its stainless steel construction ensures reliability, while the option for ATEX certification adds an extra layer of safety in potentially explosive atmospheres. This makes it an ideal choice for professionals seeking both strength and precision in their pneumatic systems.

Designed for heavy-duty use in various industrial applications
Manufactured to ISO 15552 standards for guaranteed reliability
Pneumatic adjustable cushioning enhances performance and safety
Magnetised piston for improved operational capabilities
Stainless steel and aluminium construction ensures durability
Wide temperature range accommodates diverse environmental conditions
Optional ATEX certification for use in hazardous environments
Lightweight design facilitates easier installation and handling

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822340005
Stroke	125mm
Bore	32mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS 0822340005 | TRB Pneumatic Piston Rod Cylinder | 32 mm Bore, 125 mm Stroke, Double Acting

DOWNLOAD CATALOG

0822340005 Datasheet - 0822340005 A700000012560771

0822340005 Datasheet - 0822340005 A700000012561019
