AVENTICS 0822333505 Pneumatic Piston Rod Cylinder - 20mm Bore, 100mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822333505 Pneumatic Piston Rod Cylinder - 20mm Bore, 100mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822333505
Availability: OutOfStock

Part Number : 0822333505

Availability: Sold out

Detailed Description
Specifications

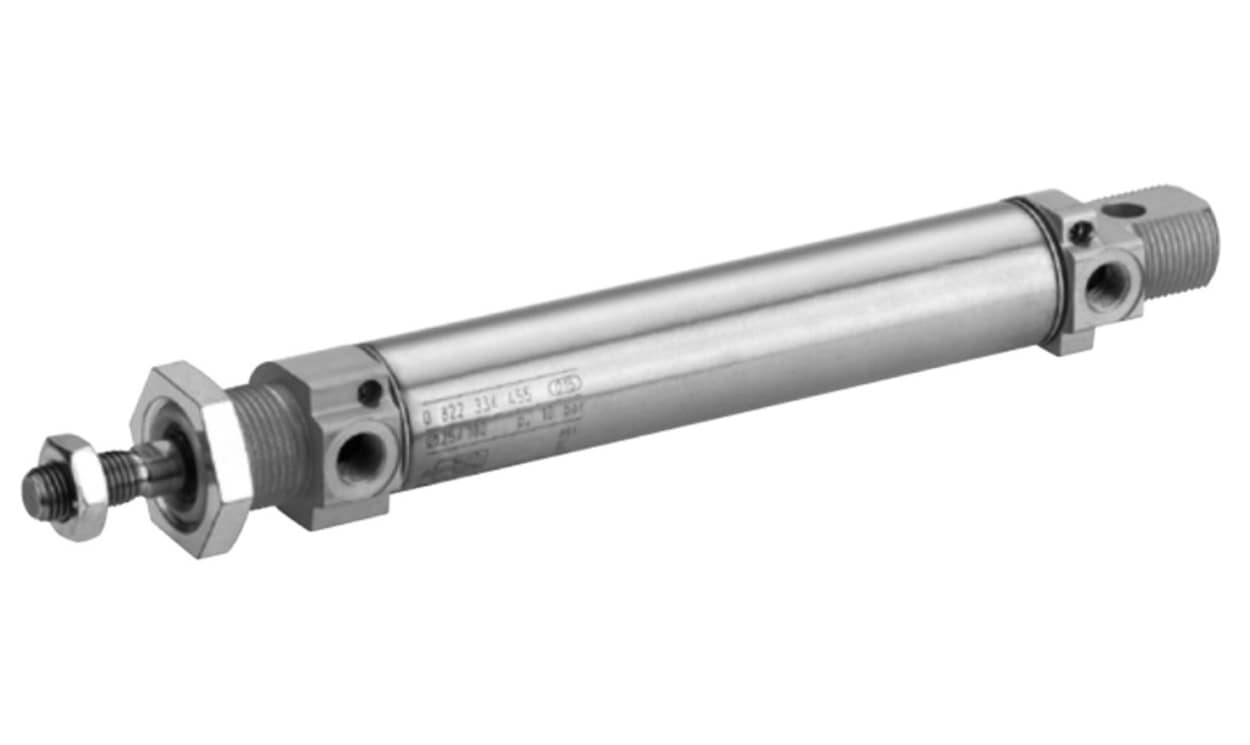

MNI Mini ISO Cylinder Pneumatic Cushioning

Pneumatic Mini Iso 6432 cylinders

Double acting
Magnetic piston
Pneumatic cushioning
Integrated rear eye
External piston rod thread

MNI Mini ISO Cylinder

Brand	AVENTICS
Manufacturer Series	MNI
Stroke	100mm
Bore	20mm
Action	Double
Port Connection	G 1/8
Cushioning Type	Air
Dimensions	209.5 x 30 x 28mm
Width	30mm
Height	28mm
Length	209.5mm
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Weight	250g
Minimum Operating Temperature	-25°C
