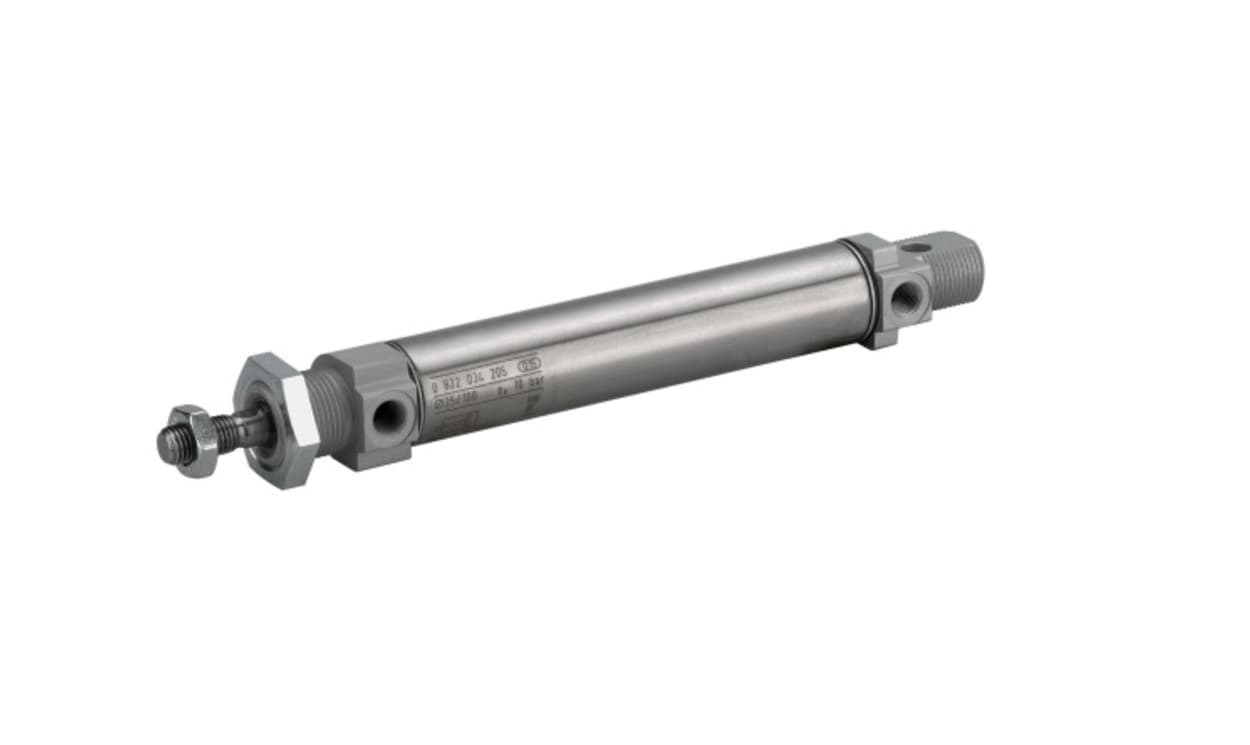

AVENTICS 0822332501 Roundline Cylinder - 0822332505, 16mm Bore, 10mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822332501 Roundline Cylinder - 0822332505, 16mm Bore, 10mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822332501
Availability: OutOfStock

Part Number : 0822332501

Availability: Sold out

Detailed Description
Specifications

The Aventics MNI Series Mini Cylinder offers versatile configurations, including single/through piston rod, elastic/adjusted cushioning, and options for magnetic detection. It features a non rotating piston rod for enhanced stability and precision. Designed for demanding environments, this mini cylinder is also ATEX certified, making it suitable for use in explosive atmospheres.

Robust and space-saving design
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822332505
Stroke	10mm
Action	Double
Bore	16mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
