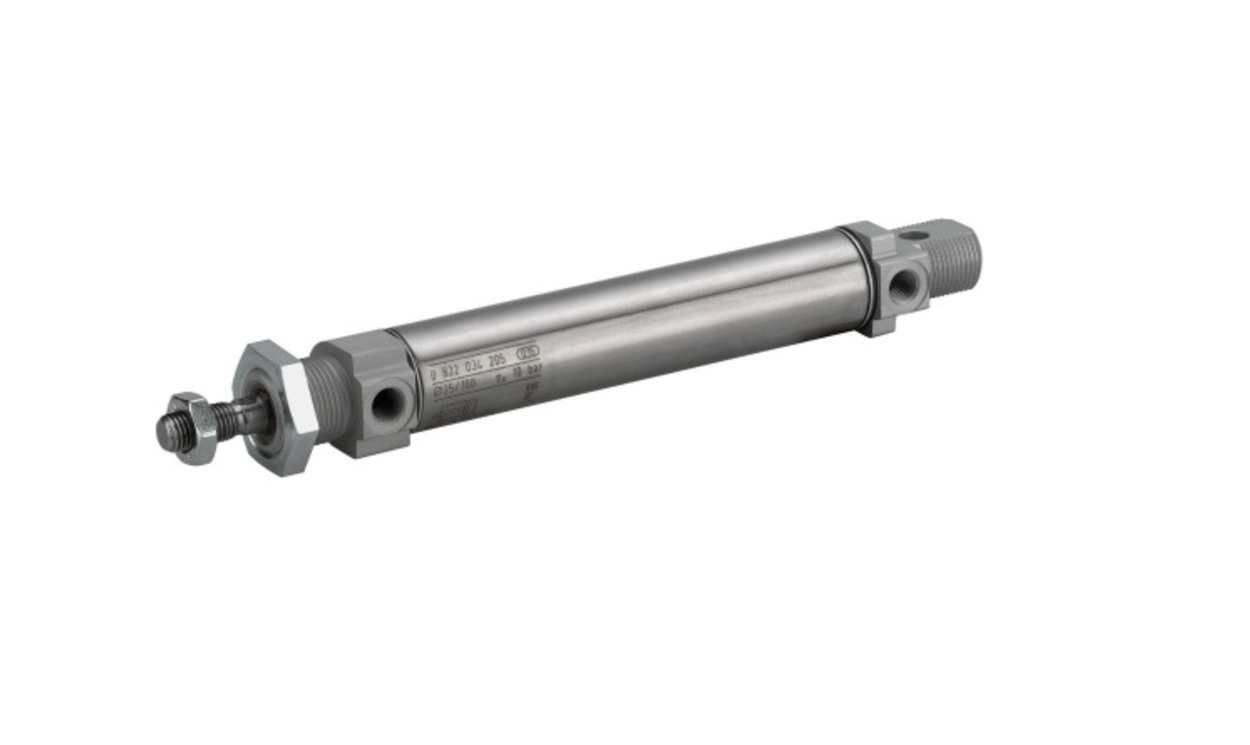

AVENTICS 0822233006 | Roundline Cylinder | 20 mm Bore, 125 mm Stroke, MNI Series

Name: AVENTICS 0822233006 | Roundline Cylinder | 20 mm Bore, 125 mm Stroke, MNI Series
Brand: Aventics
SKU: 0822233006
Availability: OutOfStock

Part Number : 0822233006

With a 20 mm bore and 125 mm stroke, the AVENTICS 0822233006 is a double-acting MNI series Roundline cylinder. The 20 mm x 125 mm body follows ISO 6432 and uses G 1/8 connections with pneumatic cushioning.

Bore x stroke: 20 mm x 125 mm
Cushioning: pneumatic
Pressure limit 10 bar - MNI 20/125
Operating temperature: -25 to +80 °C (0822233006)
Conforms to ISO 6432 (0822233006)
G 1/8 ports - MNI 20/125

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics MNI Mini cylinder represents the pinnacle of innovation in the field of pneumatic actuation. Designed for general machine construction, this robust cylinder features a double-acting functional principle and is characterised by a long service life and remarkable durability. With a compact design suitable for tight spaces, it adheres to ISO 6432 standards, ensuring compatibility and ease of installation. The cylinder's pneumatic adjustable cushioning enhances performance while significantly reducing impact during operation. Furthermore, the MNI Mini cylinder can operate efficiently across a wide temperature range, making it suitable for various industrial applications. It is a result of careful engineering, offering reliability and efficiency, making it an essential component for any machine builder or maintenance professional looking to enhance operational performance.

Compact design maximises space efficiency in equipment integration
Pneumatic adjustable cushioning enables customisation for smoother operation
Double-acting design provides flexibility in applications requiring bidirectional movement
Wide temperature range ensures functionality in diverse environments
Compliant with ISO 6432 standards for compatibility and ease of use
Optional ATEX certification allows for safe operation in potentially explosive atmospheres
Low weight contributes to reduced load on machines, enhancing overall efficiency
Stainless steel and aluminium materials ensure longevity and resistance to environmental factors

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822233006
Action	Double
Stroke	125mm
Bore	20mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822233006 | Roundline Cylinder | 20 mm Bore, 125 mm Stroke, MNI Series

DOWNLOAD CATALOG

0822233006 Datasheet - 0822233006 A700000012556913

0822233006 Datasheet - 0822233006 A700000012572011
