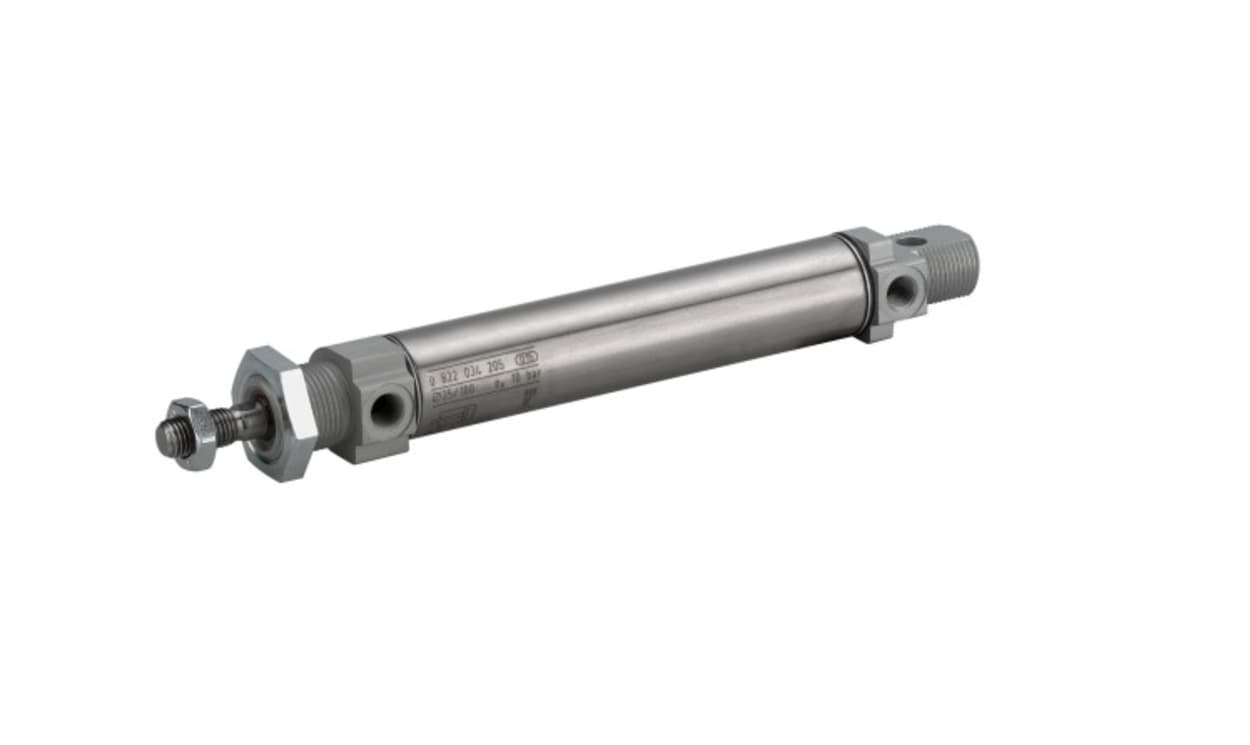

AVENTICS 0822233002 Roundline Cylinder - , 20mm Bore, 25mm Stroke, MNI Series, Double Acting
- Detailed Description
- Specifications
Double-acting design enhances operational efficiency and responsiveness
Pneumatic adjustable cushioning allows for customised performance settings
Cylinders are suitable for harsh environmental conditions, ensuring reliability
Top-quality materials provide superior strength and durability
Lightweight structure facilitates easier handling and installation
The innovative design minimizes space requirements, optimising machine layouts
Brand | AVENTICS |
Manufacturer Series | MNI |
Model Number p | 0822233002 |
Bore | 20mm |
Stroke | 25mm |
Action | Double |
Port Connection | G 1/8 |
Pneumatic Connection | G 1/8 |
Piston Rod Thread Gender | Male |
Cushioning Type | Pneumatic Cushioning |
Maximum Operating Pressure | 10 bar |
ISO Standard | ISO 6432 |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +80°C |
