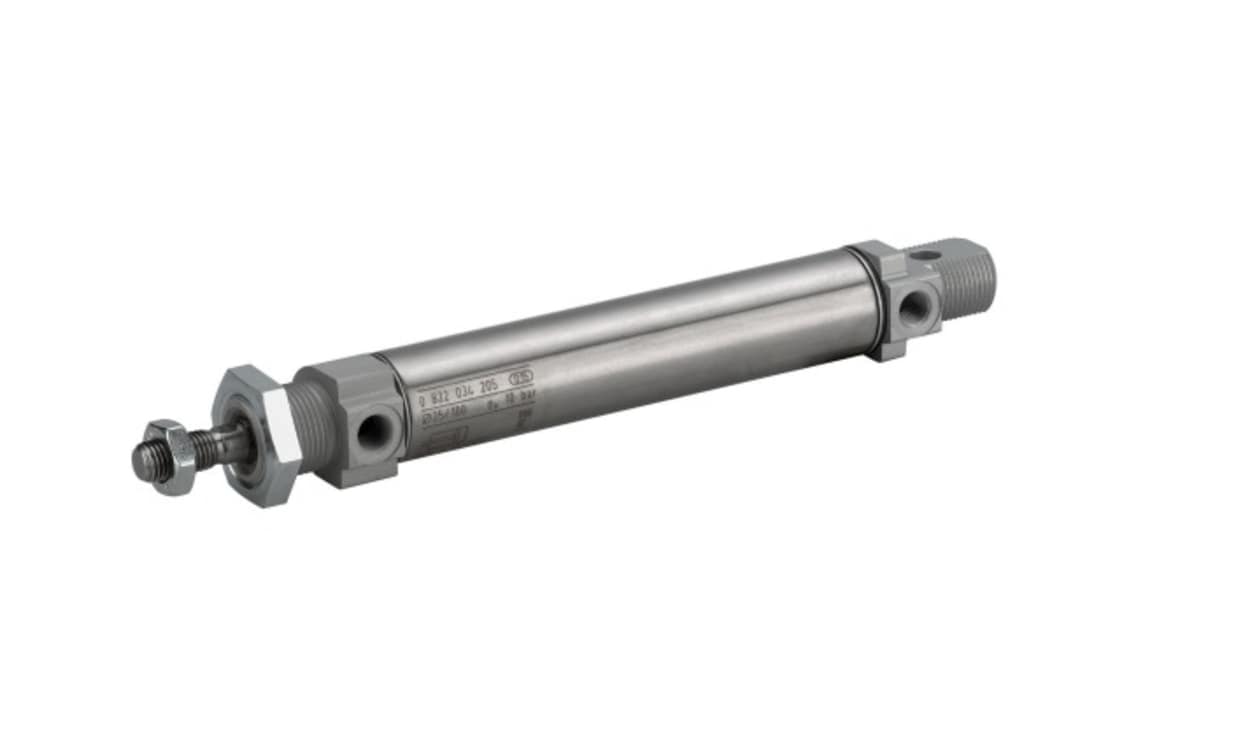

AVENTICS 0822233001 Roundline Cylinder - , 20mm Bore, 10mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822233001 Roundline Cylinder - , 20mm Bore, 10mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822233001
Availability: OutOfStock

Part Number : 0822233001

Availability: Sold out

Detailed Description
Specifications

The Aventics mini cylinder from the AVENTICS Series MNI is engineered for general machine construction, offering a reliable solution for various industrial applications. Built to the ISO 6432 standard, this innovative cylinder showcases a robust design that promises a long service life. With a double-acting functional principle, the MNI mini cylinder features pneumatic adjustable cushioning, enhancing its performance across diverse operational demands. Its compact size, combined with precision engineering, allows it to excel in tight spaces while delivering exceptional reliability and efficiency. Available in multiple configurations, this cylinder can be tailored to specific requirements, making it an ideal choice for engineers seeking both versatility and high-quality performance in pneumatic systems.

Designed for general machine construction and robust applications
Meets ISO 6432 standards for increased compatibility
Double-acting mechanism ensures efficient operation
Customisable dimensional configurations to suit various installations
Pneumatic adjustable cushioning optimises energy absorption
Constructed with durable materials ensuring longevity
Wide temperature range allows for use in diverse environments
Lightweight design facilitates easy installation and handling
ATEX certification options available for enhanced safety
Efficient oil content management contributes to reliable function

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822233001
Bore	20mm
Stroke	10mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
