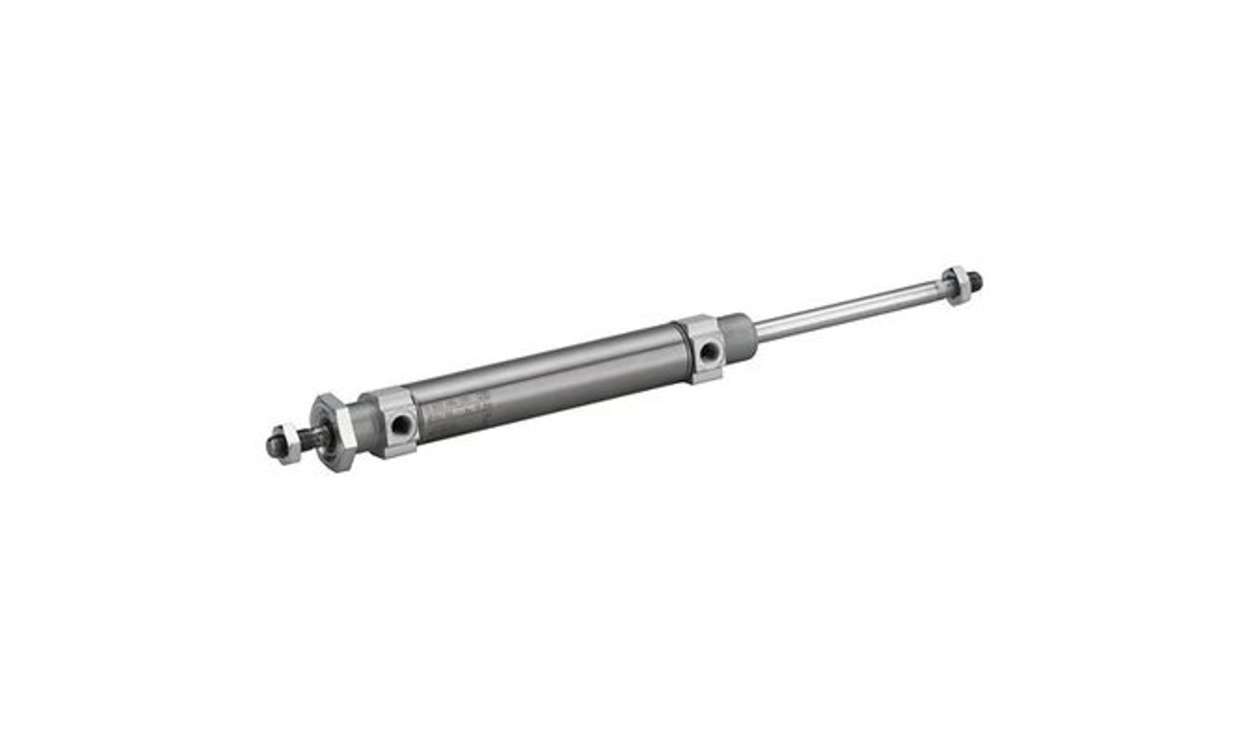

AVENTICS 0822080201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822080201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822080201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822080201
Availability: OutOfStock

Part Number : 0822080201

Availability: Sold out

Detailed Description
Specifications

The Aventics mini cylinder from the aventics Series MNI (ISO 6432) is engineered for versatility and durability in general machine construction. With a robust construction and a long service life, it expertly meets the demands of various industrial applications. The double-acting functional principle coupled with elastic cushioning ensures smooth operation and effective performance across a broad range of tasks. Designed to operate under rigorous conditions, it boasts an extensive temperature tolerance and pressure capability. Ideal for utilisation in competitive environments, this innovative product is a reliable choice for enhancing automation efficiency and responsiveness in your operations.

Engineered for double-acting functionality, promoting efficient operation
Elastic cushioning enhances durability while minimising impact wear
Manufactured with stainless steel and brass materials for superior strength
ATEX certification options available for safety in explosive environments
Compact design enables seamless integration into existing systems
Wide operating temperature range accommodates diverse applications
Lightweight construction eases installation and reduces overall system strain
Compatible with various media, ensuring flexibility in usage
Low maintenance requirements support continuous operation
Customisable configurations enhance adaptability for unique project needs

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822080201
Stroke	10mm
Action	Double
Bore	10mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
