AVENTICS 0822066001 Pneumatic Guided Cylinder - , 50mm Bore, 50mm Stroke, GPC Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822066001 Pneumatic Guided Cylinder - , 50mm Bore, 50mm Stroke, GPC Series, Double Acting

Name: AVENTICS 0822066001 Pneumatic Guided Cylinder - , 50mm Bore, 50mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822066001
Availability: OutOfStock

Part Number : 0822066001

Availability: Sold out

Detailed Description
Specifications

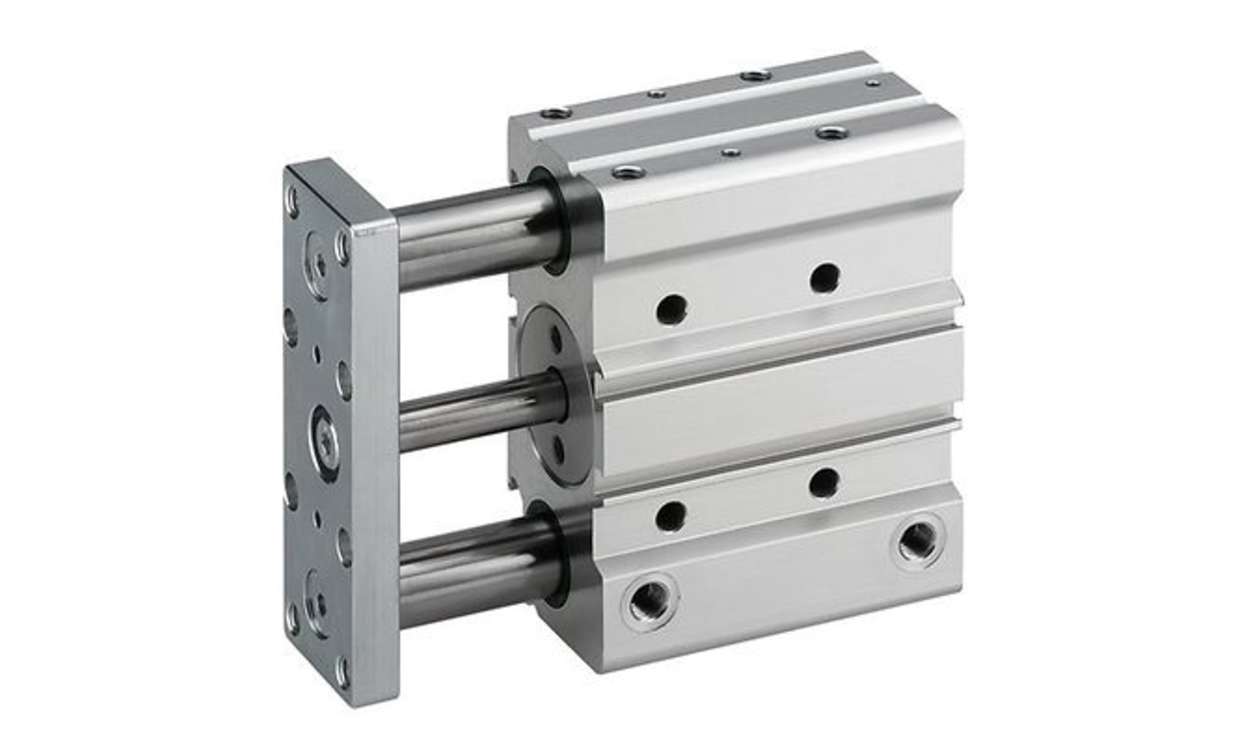

The Aventics guide cylinder, part of the GPC-BV series SH, is designed for industrial applications where precision and durability are paramount. Crafted with robust materials, it boasts a high side load capacity and effective torsional protection, making it ideal for environments demanding reliability. The design features a double-acting functional principle, ensuring efficient movement and versatility across various tasks. With a piston diameter of 50 mm and a stroke of 50 mm, this cylinder enhances operational performance while maintaining a compact footprint. Its features, such as magnetic piston cushioning and a plain bearing system, allow for smooth and efficient operation under varying pressure conditions. Perfect for automation and processing industries, this guide cylinder is engineered to withstand the rigours of demanding environments.

High side load capacity ensures enhanced operational stability
Torsion protection allows for reliable performance in dynamic conditions
Designed for double-acting functionality for increased versatility
Plain bearing provides low-friction movement for improved efficiency
Magnetic piston offers effective cushioning for reduced wear on components
Robust aluminum housing guarantees durability and longevity
Precisely calibrated to operate within a wide pressure range for flexibility
Compact design facilitates easy installation in confined spaces
Compliant with industry standards for quality assurance
Maintenance-friendly construction simplifies servicing and upkeep

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822066001
Action	Double
Bore	50mm
Stroke	50mm
Port Connection	G 1/8
Pneumatic Connection	G 1/4
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-10°C
Piston Speed	600mm/s
