AVENTICS 0822065000 Pneumatic Guided Cylinder - , 40mm Bore, 25mm Stroke, GPC Series, Double Acting

Name: AVENTICS 0822065000 Pneumatic Guided Cylinder - , 40mm Bore, 25mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822065000
Availability: OutOfStock

Part Number : 0822065000

Availability: Sold out

Detailed Description
Specifications

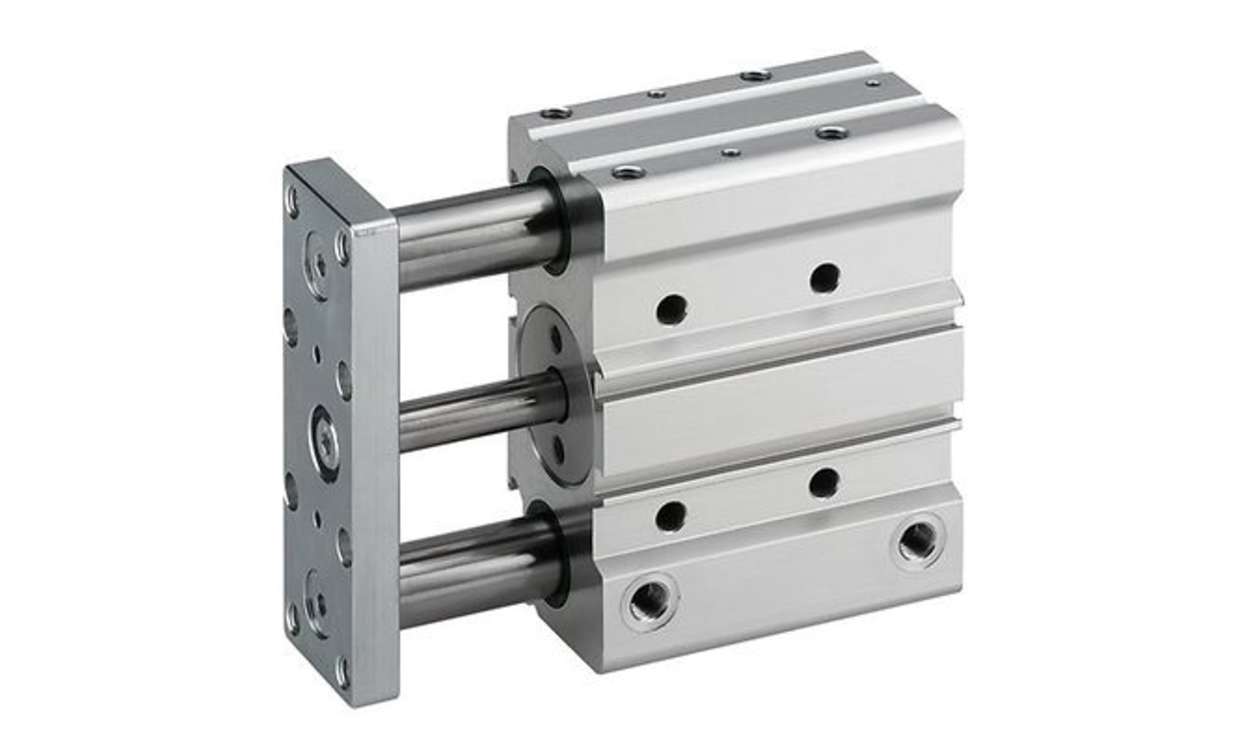

The Aventics guide cylinder, part of the Series GPC-BV, embodies precision engineering and robust performance ideal for industrial applications. Its design ensures high side load capacity and superior torsion protection, making it an excellent choice for environments requiring reliability and strength. The double-acting functional principle allows for efficient operation, while the magnetic piston enhances functionality. With a stroke length of 25 mm, this cylinder is crafted from high-quality materials, including anodised aluminium and stainless steel, ensuring durability and longevity in demanding settings. The series also prioritises maintenance with its minimal oil content requirements for compressed air. Whether used in automated systems, machinery, or robotics, this guide cylinder delivers exceptional performance and a streamlined installation process through its well-thought-out dimensions and specifications.

High side load capacity enhances reliability in diverse applications
Robust construction with anodised aluminium and stainless steel for durability
Precise engineering results in efficient operation even under heavy loads
Minimal maintenance requirements ensure a hassle-free experience
Designed for easy installation, reducing downtime during setup
Versatile application compatibility across various industrial environments

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822065000
Stroke	25mm
Bore	40mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
Piston Speed	600mm/s
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-10°C
