AVENTICS 0822063029 Pneumatic Guided Cylinder - , 25mm Bore, 150mm Stroke, GPC Series, Double Acting

Name: AVENTICS 0822063029 Pneumatic Guided Cylinder - , 25mm Bore, 150mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822063029
Availability: OutOfStock

Part Number : 0822063029

Availability: Sold out

Detailed Description
Specifications

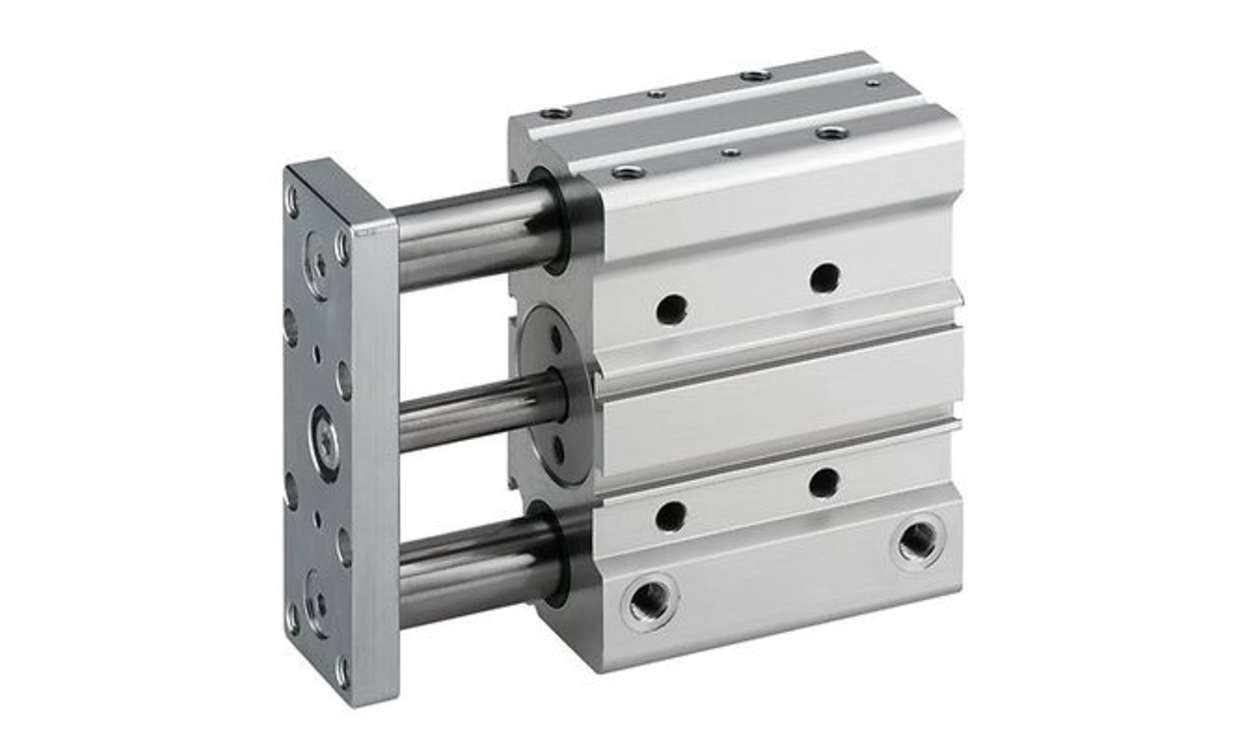

The Aventics Guide Cylinder from the GPC-BV series is engineered for robust performance in demanding industrial applications. This double-acting cylinder features a compact design expertly crafted to handle significant side loads and providing torsional stability. Designed to operate efficiently under various conditions, it delivers durability and precision thanks to its strong aluminium housing and high-quality polyurethane seals. Ideal for compressed air use, this cylinder is perfect for tasks requiring rapid retraction and extraction of loads.

Stainless steel piston rod enhance durability and longevity
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822063029
Stroke	150mm
Action	Double
Bore	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
Piston Speed	800mm/s
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
