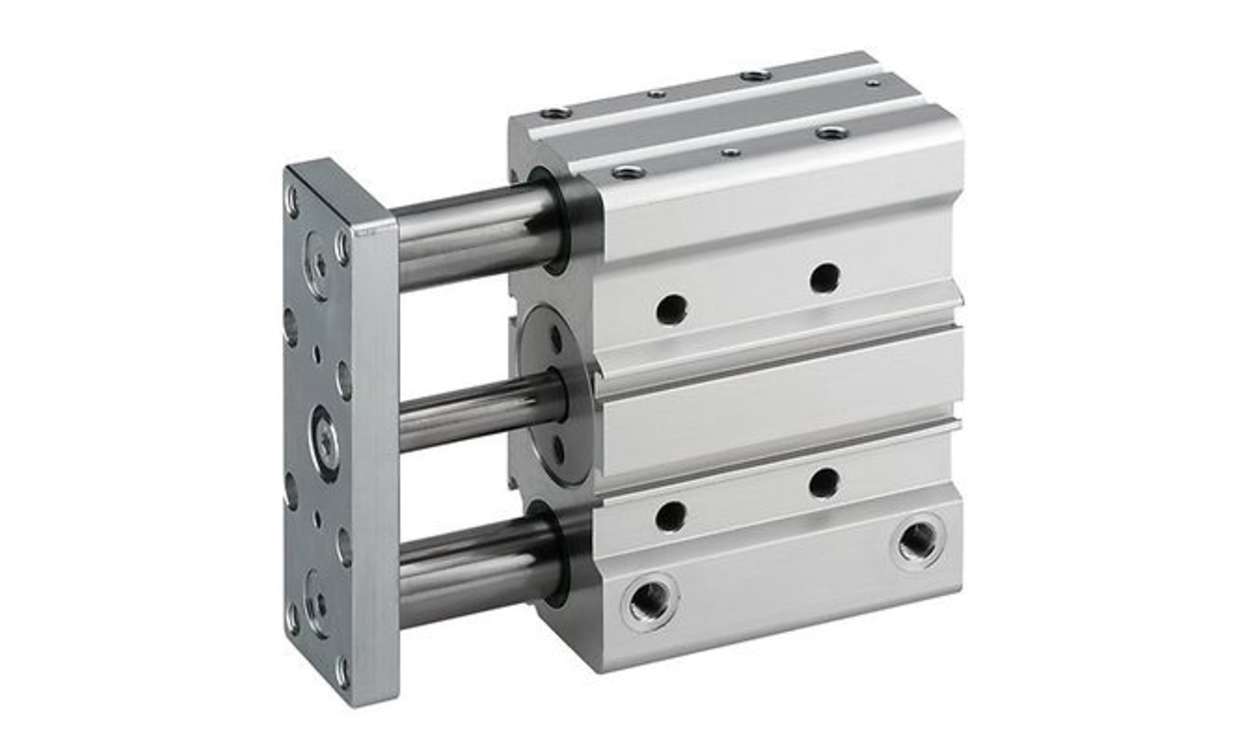

AVENTICS 0822062106 Pneumatic Guided Cylinder - , 20mm Bore, 100mm Stroke, GPC Series, Double Acting

Name: AVENTICS 0822062106 Pneumatic Guided Cylinder - , 20mm Bore, 100mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822062106
Availability: OutOfStock

Part Number : 0822062106

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics guide cylinder from aventics represents the pinnacle of engineering excellence in the Series GPC-BV range. Renowned for its robust construction, it delivers exceptional performance in demanding applications. The cylinder boasts high side load capacity and torsion protection, making it an ideal choice for tasks requiring precision and reliability. Its double-acting functional principle ensures effective operation, while the durable materials used in its construction provide longevity and resistance to wear. Moreover, its design accommodates a variety of mounting options, enhancing installation flexibility. Crafted for industries that rely on compressed air systems, this cylinder seamlessly integrates into existing setups, contributing to enhanced operational efficiency. With dimensions tailored to fit various sensor series, it is a versatile addition to any machinery system.

High side load capacity ensures stability under varying loads
Robust construction offers superior durability and performance
Double-acting function maximises operational efficiency
Versatile mounting options allow for straightforward installation
Magnetic piston enhances functionality with integrated sensing capabilities
Optimised for use with compressed air, ensuring efficient operation
Designed to accommodate different stroke lengths for flexibility

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822062106
Stroke	100mm
Action	Double
Bore	20mm
Pneumatic Connection	M5
Port Connection	M5
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Piston Speed	500mm/s
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C

AVENTICS 0822062106 Pneumatic Guided Cylinder - , 20mm Bore, 100mm Stroke, GPC Series, Double Acting

DOWNLOAD CATALOG

0822062106 Datasheet - 0822062106 A700000012556331

0822062106 Datasheet - 0822062106 A700000012572891
