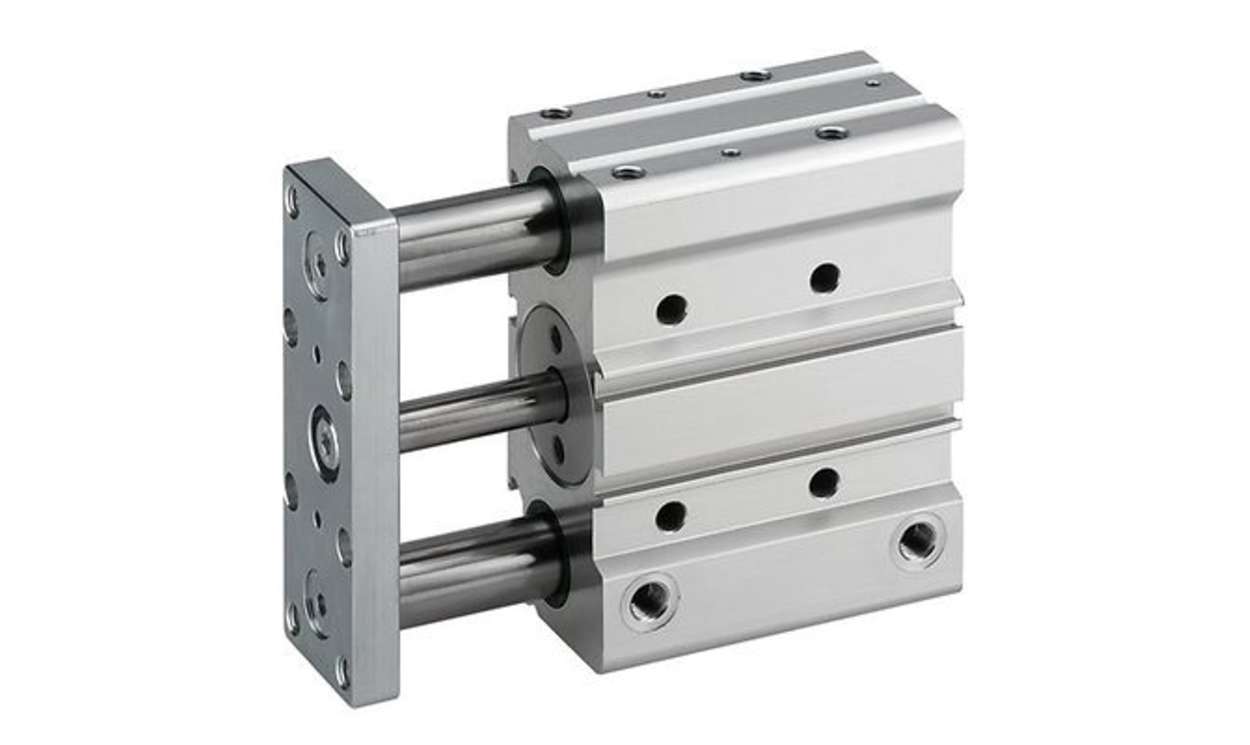

AVENTICS 0822061102 | GPC Guided Cylinder | 16 mm Bore, 30 mm Stroke, 10 bar

Name: AVENTICS 0822061102 | GPC Guided Cylinder | 16 mm Bore, 30 mm Stroke, 10 bar
Brand: Aventics
SKU: 0822061102
Availability: OutOfStock

Part Number : 0822061102

AVENTICS part 0822061102 is a 16 mm bore GPC guided pneumatic cylinder giving 30 mm of double-acting travel. Supply connections on part 0822061102 are M5, and maximum pressure is 10 bar.

0822061102: 16 mm bore, 30 mm stroke, double acting
Operating temperature -10 to +70 °C for this 16 x 30 mm cylinder
This 16 x 30 mm cylinder has elastic cushioning
Piston speed 500 mm/s (0822061102)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Guide Cylinder from the GPC-BV series is engineered for robust performance in demanding industrial applications. This double-acting cylinder features a compact design expertly crafted to handle significant side loads and providing torsional stability. Designed to operate efficiently under various conditions, it delivers durability and precision thanks to its strong aluminium housing and high-quality polyurethane seals. Ideal for compressed air use, this cylinder is perfect for tasks requiring rapid retraction and extraction of loads.

Stainless steel piston rod enhance durability and longevity
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822061102
Action	Double
Bore	16mm
Stroke	30mm
Pneumatic Connection	M5
Port Connection	M5
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Piston Speed	500mm/s

AVENTICS 0822061102 | GPC Guided Cylinder | 16 mm Bore, 30 mm Stroke, 10 bar

DOWNLOAD CATALOG

0822061102 Datasheet - 0822061102 A700000012555587

0822061102 Datasheet - 0822061102 A700000012572059
