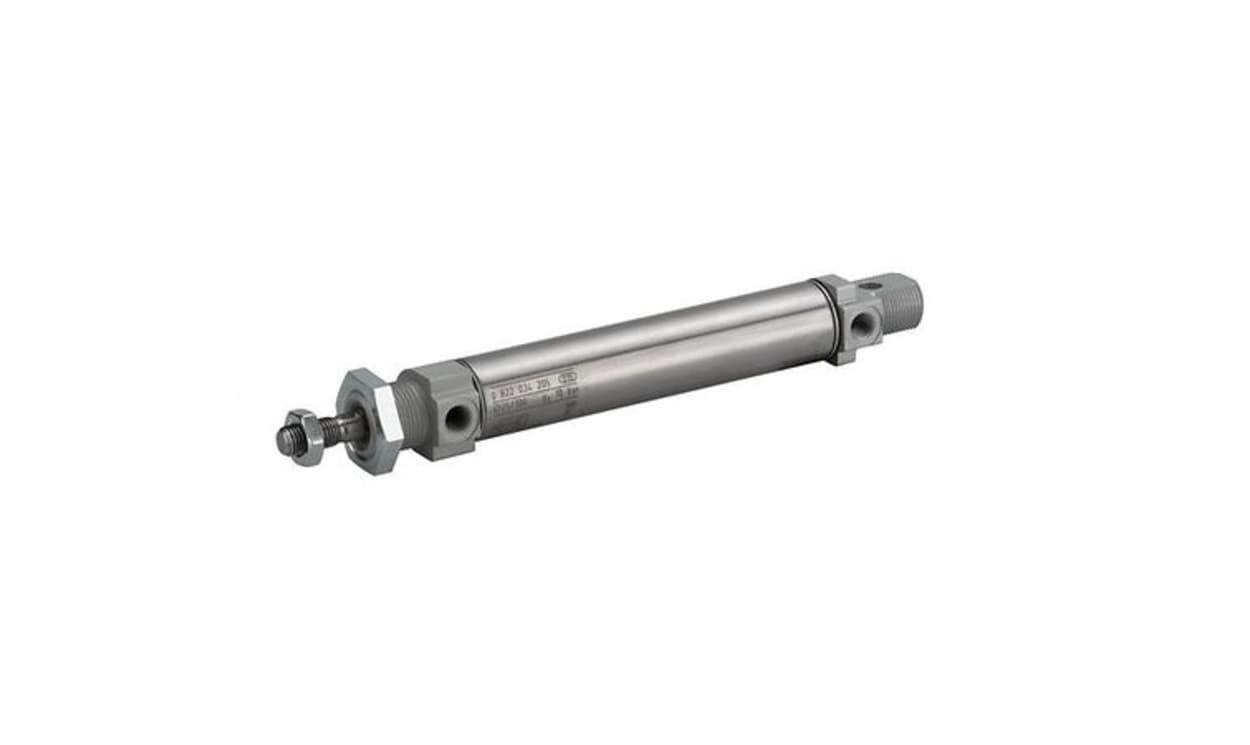

AVENTICS 0822034206 | MNI Pneumatic Cylinder | 25 mm Bore, 125 mm Stroke, Double Acting

Name: AVENTICS 0822034206 | MNI Pneumatic Cylinder | 25 mm Bore, 125 mm Stroke, Double Acting
Brand: Aventics
SKU: 0822034206
Availability: OutOfStock

Part Number : 0822034206

With a 25 mm bore and 125 mm stroke, the AVENTICS 0822034206 is a double-acting MNI series pneumatic cylinder. Supply connections on the 25 mm bore, 125 mm stroke version are G 1/8, and maximum pressure is 10 bar.

0822034206: 25 mm bore, 125 mm stroke, double acting
Temperature range of model 0822034206: -25 to +80 °C
Fitted with elastic cushioning plus male piston rod thread (model 0822034206)
ISO 6432 compliant (0822034206)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics MNI round cylinders for general machine construction are characterized by its robust and long service life. The pressure dew point must be at least 15 °C less than ambient and medium temperature and may not exceed 3 °C. Its configurations available as single/through piston rod, elastic/adjusted cushioning, with/ without magnetic detection, non-rotating piston rod, ATEX.

Robust and space saving design
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822034206
Action	Double
Stroke	125mm
Bore	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Dimensions	119.5 x 30mm
Length	119.5mm
Diameter	30mm
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
VDMA Standard	ISO 6432
Maximum Operating Temperature	+80°C

AVENTICS 0822034206 | MNI Pneumatic Cylinder | 25 mm Bore, 125 mm Stroke, Double Acting

DOWNLOAD CATALOG

0822034206 Datasheet - 0822034206 A700000012652929

0822034206 Datasheet - 0822034206 A700000012653186
