AVENTICS 0822031201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Double Acting

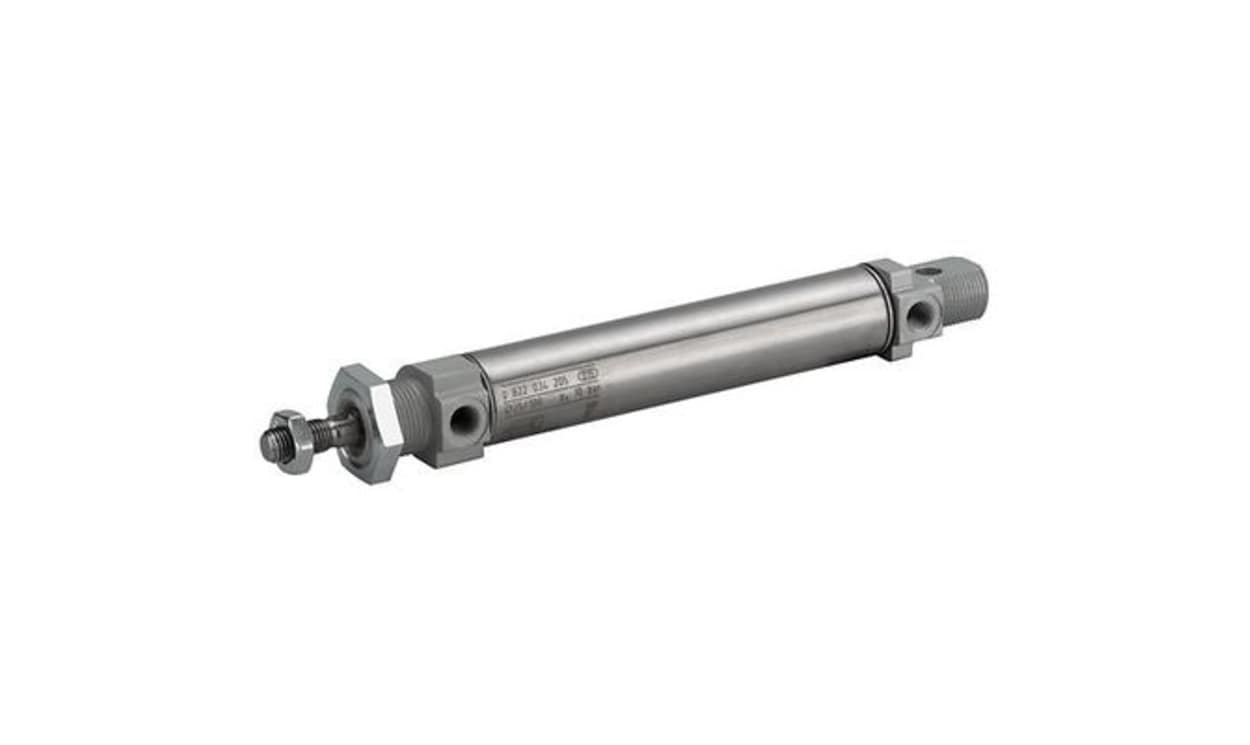

Name: AVENTICS 0822031201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822031201
Availability: OutOfStock

Part Number : 0822031201

Availability: Sold out

Detailed Description
Specifications

The Aventics Mini Cylinder is designed to meet the demands of general machine construction with its robust design and long service life. This exceptional round cylinder, complying with ISO 6432 standards, provides reliable performance in a variety of industrial applications. Engineered for double-acting functionality, the Series MNI offers precise control and efficiency. Its compact size makes it ideal for installations where space is at a premium, while the elastic cushioning ensures maximum safety and durability.

Designed to operate effectively in a wide temperature range
ATEX certification options available for hazardous environments
Stainless steel piston rod promotes corrosion resistance and longevity
Robust construction
Long service life

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822031201
Action	Double
Bore	10mm
Stroke	10mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
