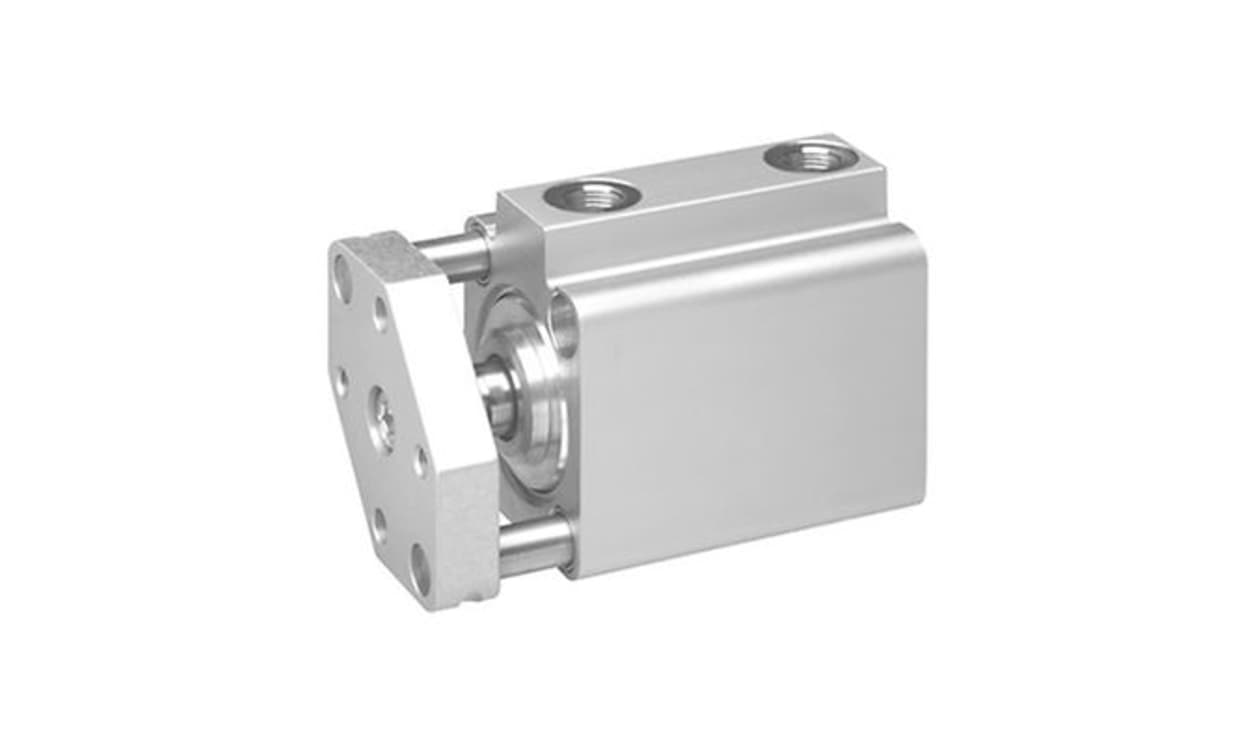

AVENTICS 0822010859 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 100 mm Stroke, G 1/8

Name: AVENTICS 0822010859 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 100 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010859
Availability: OutOfStock

Part Number : 0822010859

AVENTICS 0822010859 is a KHZ series piston rod cylinder sized at 40 mm bore and 100 mm stroke, working double acting, with compressed air connected via G 1/8 and a rating of up to 10 bar.

40 mm bore × 100 mm stroke
Action: double acting (KHZ series)
G 1/8 pneumatic connection
Piston rod thread gender: female
Cushioning type: elastic
Temperature range: -25 °C to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from the series KHZ is engineered for applications where space is at a premium, providing efficient performance even in compact environments. This innovative component ensures seamless integration into machinery, delivering reliability and functionality in demanding industrial settings. Constructed with a double-acting functional principle and featuring elastic cushioning, the cylinder promises smooth operation while maintaining safety standards. Its robust materials and industry-standard designs offer exceptional durability, making it an ideal choice for various industrial applications. The KHZ cylinder effectively handles a range of environmental conditions, ensuring high operational efficiency with minimal maintenance. Designed for easy installation, it combines technical precision with practical usability, setting a standard in the realm of short-stroke cylinders.

Double-acting design optimises operational output
Elastic cushioning ensures smooth piston movement
Stainless steel piston rod provides enhanced durability
Aluminium construction reduces overall weight without compromising strength
Magnetic piston allows reliable positioning and control
Versatile dimensional options available for different applications
Operates reliably across a wide temperature range
Designed for easy integration into existing systems
Conforms to industry standards for quality and safety

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010859
Action	Double
Bore	40mm
Stroke	100mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822010859 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 100 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010859 Datasheet - 0822010859 A700000012570897
