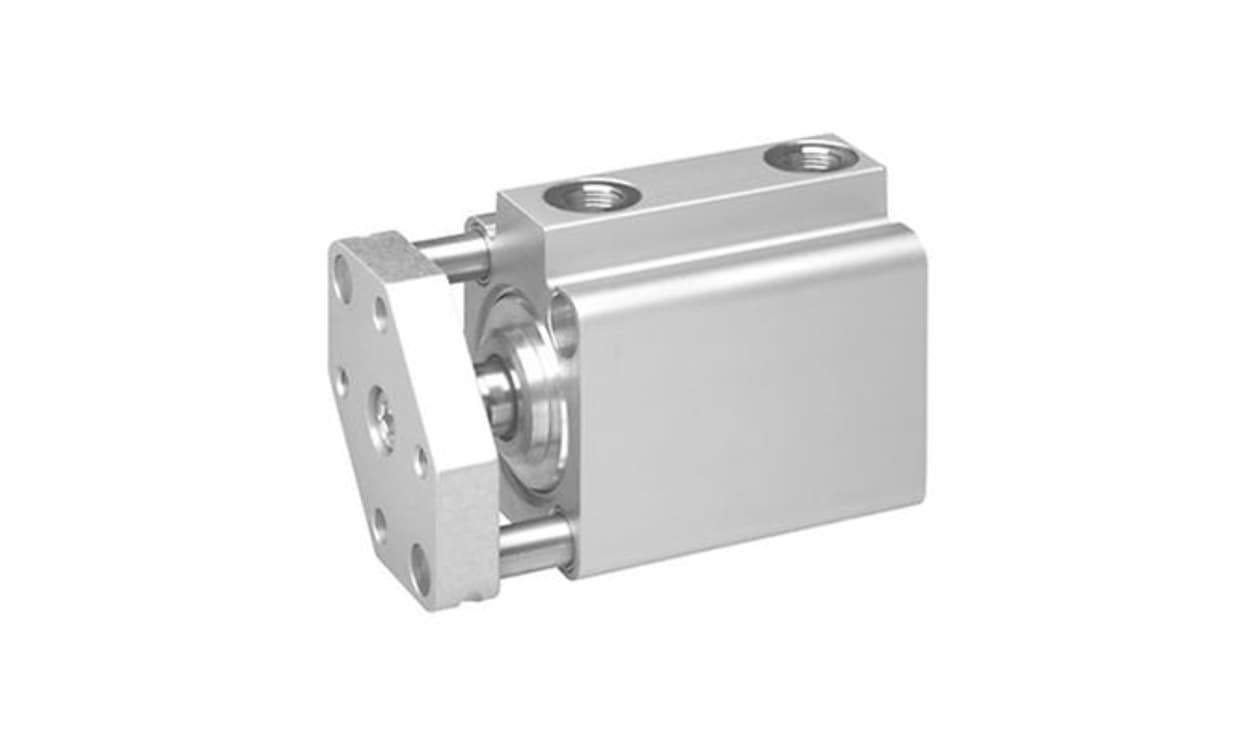

AVENTICS 0822010814 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 16 mm Bore, 25 mm Stroke, M5

Name: AVENTICS 0822010814 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 16 mm Bore, 25 mm Stroke, M5
Brand: Aventics
SKU: 0822010814
Availability: OutOfStock

Part Number : 0822010814

Part number 0822010814 from AVENTICS pairs a 25 mm stroke with a 16 mm bore in the double-acting KHZ series, taking an M5 pneumatic connection and specified for operating temperatures between -25 °C and +80 °C.

Bore 16 mm, stroke 25 mm
Double-acting operation, KHZ series
Port connection: M5
Female piston rod thread
Elastic cushioning
Maximum operating pressure 10 bar

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Short Stroke Cylinder from aventics is meticulously designed for maximum efficiency in confined spaces. The series KHZ integrates seamlessly into machinery, offering both safety and ease of use. Its compact dimensions do not compromise on performance, making it a reliable choice for diverse industrial applications. With a robust build tailored to withstand industry standards, this model excels in environments that demand reliability and durability. The double-acting functional principle ensures consistent performance, making this cylinder an essential component in various pneumatic systems.

Stainless steel piston rod promotes corrosion resistance and longevity
Nitrile rubber piston material supports effective sealing and longevity
Scraper material made of polyurethane optimises debris management
Features elastic cushioning for smooth operation and reduced wear
Operating temperature ranges meet demanding industrial requirements
Environmentally resistant materials suitable for harsh conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010814
Action	Double
Bore	16mm
Stroke	25mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822010814 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 16 mm Bore, 25 mm Stroke, M5

DOWNLOAD CATALOG

0822010814 Datasheet - 0822010814 A700000012572003
