AVENTICS 0822010771 Pneumatic Piston Rod Cylinder - , 63mm Bore, 10mm Stroke, KHZ Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822010771 Pneumatic Piston Rod Cylinder - , 63mm Bore, 10mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010771 Pneumatic Piston Rod Cylinder - , 63mm Bore, 10mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010771
Availability: OutOfStock

Part Number : 0822010771

Availability: Sold out

Detailed Description
Specifications

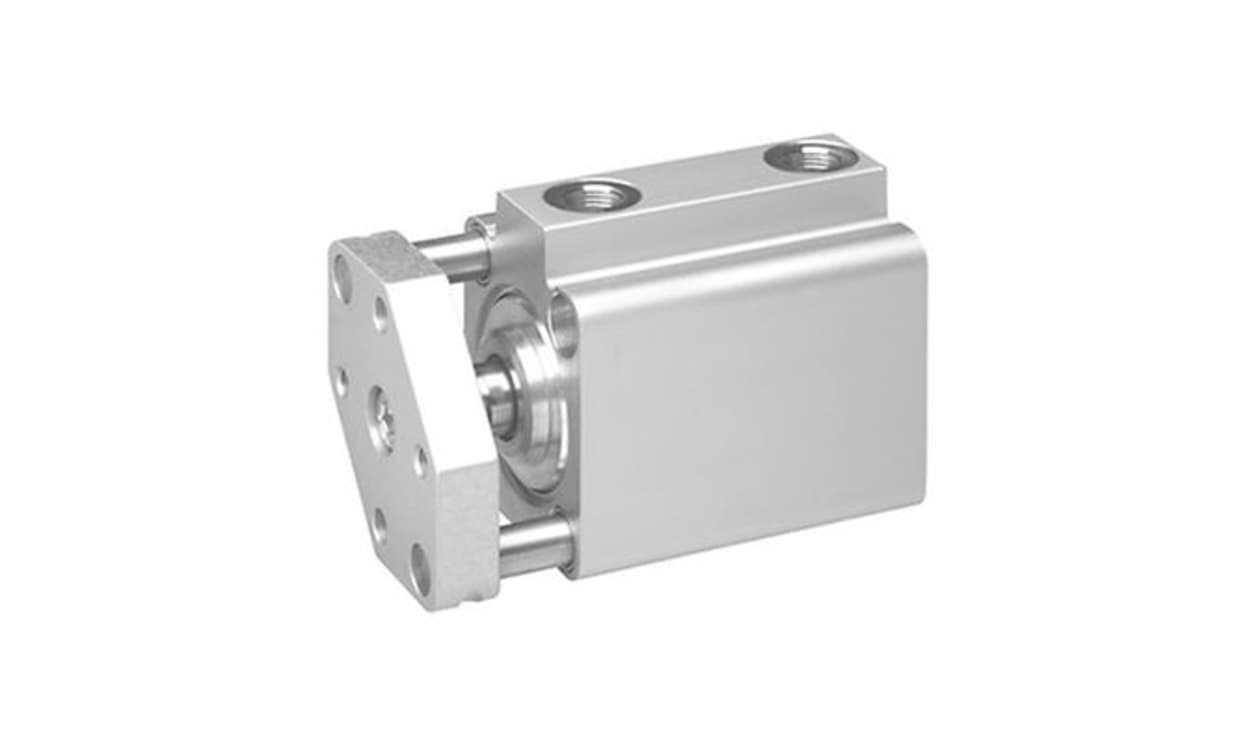

The Aventics Series KHZ short-stroke cylinder is engineered for precision in confined spaces, making it the ideal choice for applications where space is at a premium. With its double-acting functional principle, this cylinder guarantees reliable performance while ensuring seamless integration into your machinery. It features elastic cushioning for smooth operation and is designed to withstand a wide range of environmental conditions, aligning with industry standards. The availability of various dimensions means you can select a model that best fits your specific requirements. Whether you are looking for robust performance or ease of installation, this series is tailored to meet modern industrial needs with efficacy and reliability.

Compact design enables installation in tight spaces
Double-acting mechanism provides efficient operation
Elastic cushioning ensures soft landing and reduced wear
Wide range of stroke lengths available for versatile applications
Constructed from durable materials for long-lasting performance
Standard scraper prevents contamination and enhances durability
Optimised for a variety of ambient temperatures with reliable functionality
Designed for compatibility with approved AVENTICS oils
Low maintenance requirements facilitate easy upkeep

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010771
Stroke	10mm
Action	Double
Bore	63mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.114 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C
Test Weight	0.636 kg
