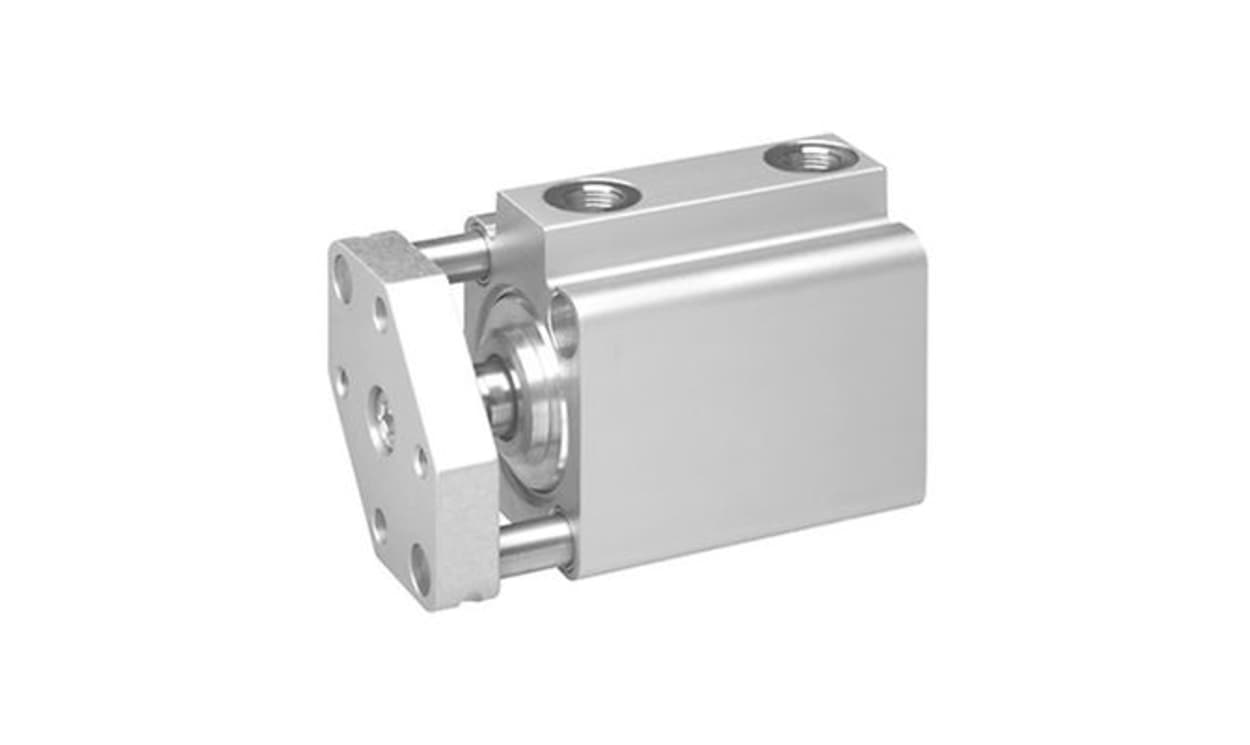

AVENTICS 0822010757 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 50 mm Stroke, G 1/8
Part number 0822010757 from AVENTICS pairs a 50 mm stroke with a 40 mm bore in the double-acting KHZ series, taking a G 1/8 pneumatic connection and specified for operating temperatures between -25 °C and +80 °C.
- Bore 40 mm, stroke 50 mm
- Double-acting operation, KHZ series
- Port connection: G 1/8
- Female piston rod thread
- Elastic cushioning
- Maximum operating pressure 10 bar
- Detailed Description
- Specifications
- Downloads
Double-acting cylinder provides efficient performance, enhancing productivity
Elastic cushioning technology reduces shock loads, promoting longer service life
Constructed from premium materials for superior durability and reliability
Meets stringent industry standards for dependable operation in various environments
High force outputs cater to demanding applications, supporting operational efficiency
Simple integration due to standardised ports, facilitating hassle-free installation
Minimises maintenance needs with a robust design, reducing downtime
| Brand | AVENTICS |
| Manufacturer Series | KHZ |
| Model Number P | 0822010757 |
| Action | Double |
| Bore | 40 mm (1.57 in) |
| Stroke | 50 mm (1.97 in) |
| Pneumatic Connection | G 1/8 |
| Port Connection | G 1/8 |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Piston Rod Thread Gender | Female |
| Stroke Interval Weight | 0.06 @ 10 mm kg/mm |
| Test Weight | 0.285 kg (0.63 lb) |
